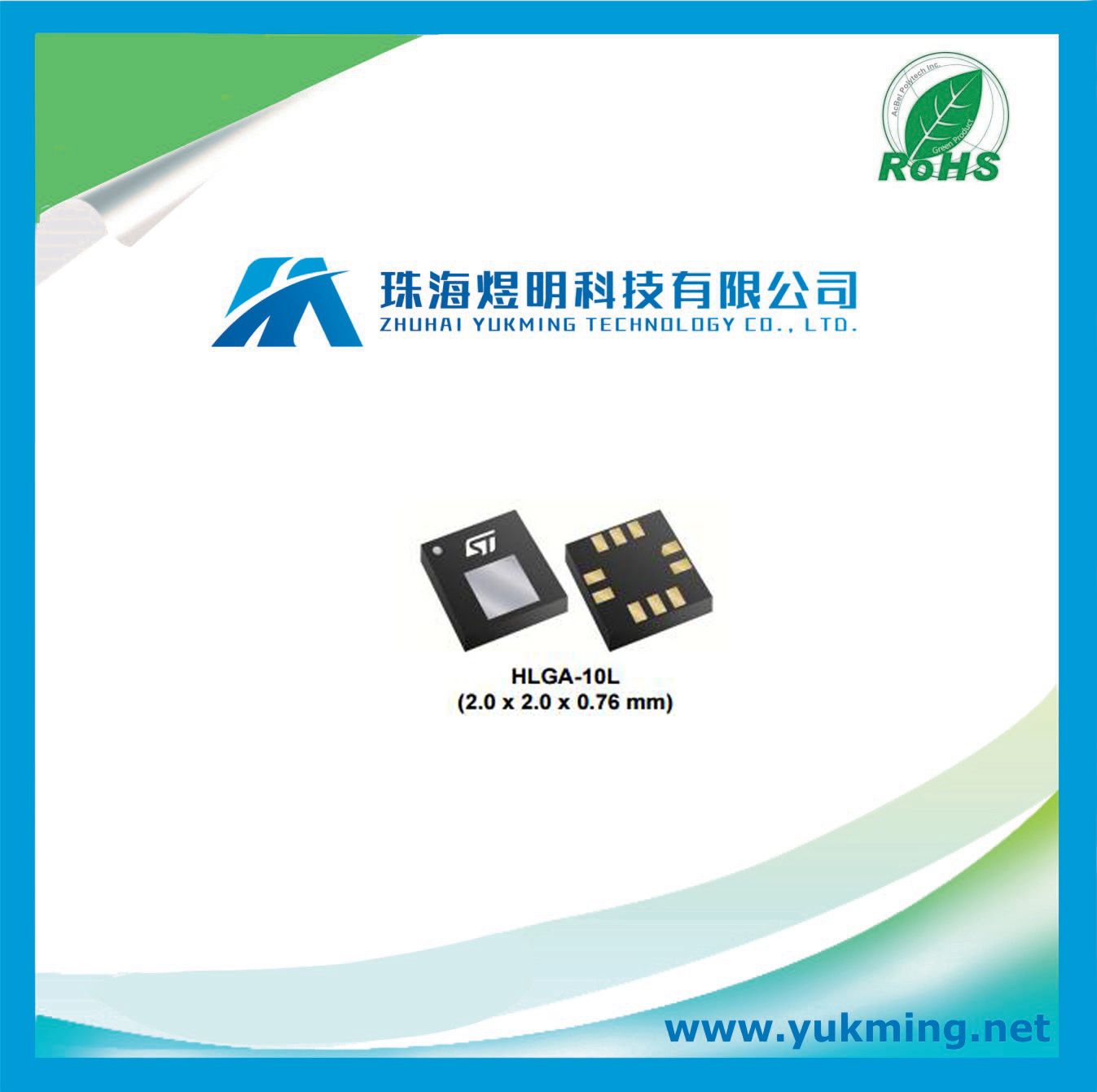

Integrated Circuit Lps22hb (10 LGA) of Pressure Sensor IC

Prod Model:	LPS22HB (10 LGA)
Absolute Pressure Range:	260 to 1260 Hpa
Current Consumption:	3ua
High Overpressure Capability:	20X Full-S
Supply Voltage:	1.7 to 3.6 V
High Shock Survivability:	22,000 G
Operating Temperature Range:	-40 to 125 Degree C

Product Description


Features
· 260 to 1260 hPa absolute pressure range
· Current consumption down to 3 μA
· High overpressure capability: 20x full-scale
· Embedded temperature compensation
· 24-bit pressure data output
· 16-bit temperature data output
· ODR from 1 Hz to 75 Hz
· SPI and I²C interfaces
· Embedded FIFO
· Interrupt functions: Data Ready, FIFO flags,
pressure thresholds
· Supply voltage: 1.7 to 3.6 V
· High shock survivability: 22,000 g
· Small and thin package
· ECOPACK® lead-free compliant

Applications
· Altimeters and barometers for portable devices
· GPS applications
· Weather station equipment
· Sport watches

Description
The LPS22HB is an ultra-compact piezoresistive
absolute pressure sensor which functions as a
digital output barometer. The device comprises a
sensing element and an IC interface which
communicates through I2C or SPI from the
sensing element to the application.
The sensing element, which detects absolute
pressure, consists of a suspended membrane
manufactured using a dedicated process
developed by ST.
The LPS22HB is available in a full-mold, holed
LGA package (HLGA). It is guaranteed to operate
over a temperature range extending from -40 °C
to +85 °C. The package is holed to allow external
pressure to reach the sensing element.
