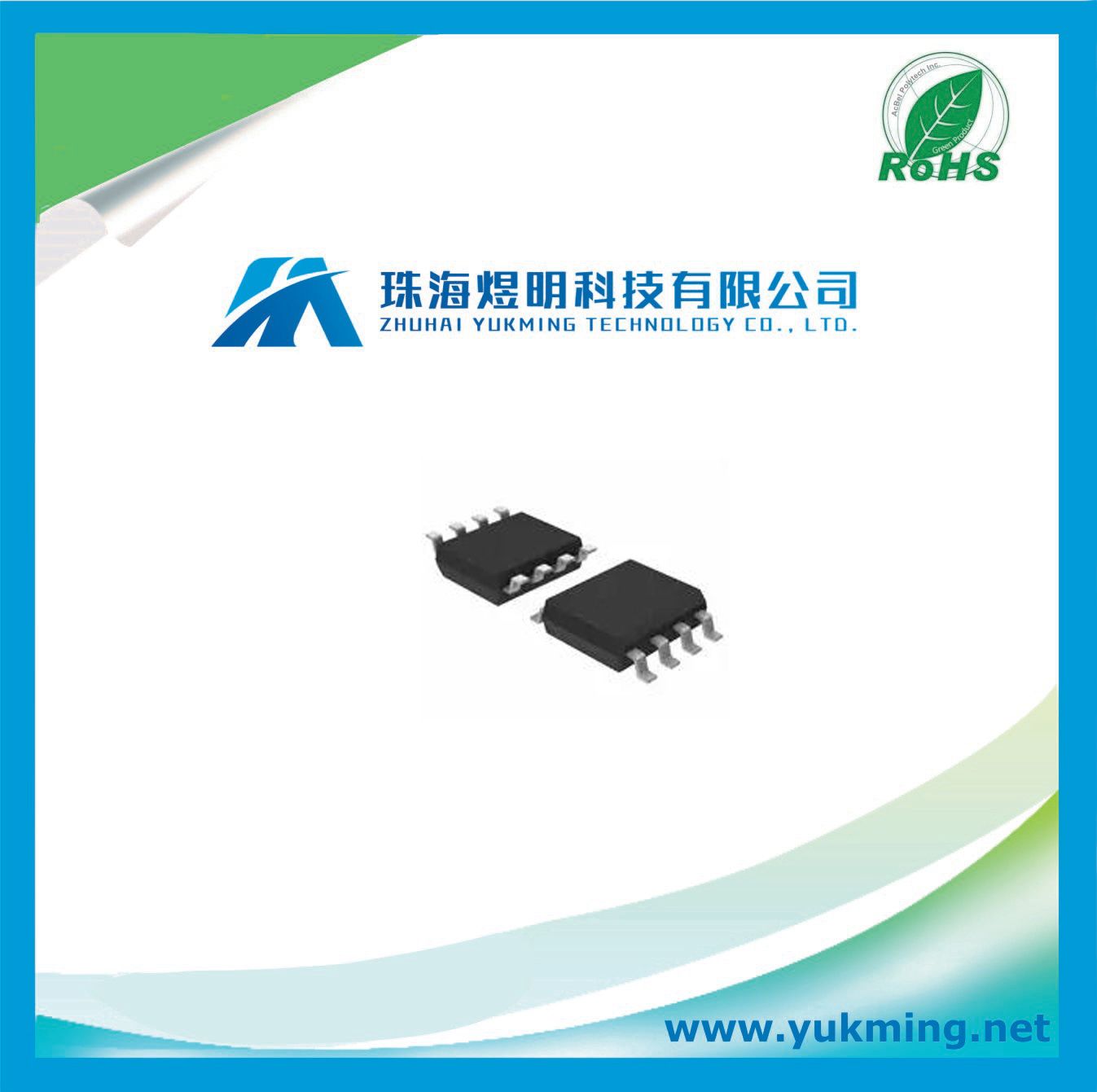

Integrated Circuit Max485CSA+T of Interface - Drivers, Receivers, Transceivers IC

Name: Integrated Circuit Max485CSA+T of Interface - Drivers, Receivers, Transceivers IC
Brand: all-electronics-online.com
SKU: 807396665
Availability: InStock
Rating: 4.3 (84 reviews)

Price:	US $ 0.53/Piece
Min Order:	2500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MAX485CSA+T
Number Of Drivers/Receivers:	1/1
Duplex:	Half
Receiver Hysteresis:	50mv
Data Rate:	2.5Mbps
Voltage - Supply:	4.75 V ~ 5.25 V
Operating Temperature Range:	0 to 75 Degree C

Product Description

Categories	Integrated Circuits (ICs)
Categories	Interface - Drivers, Receivers, Transceivers
Manufacturer	Maxim Integrated
Packaging	Cut Tape (CT)
Part Status	Active
Type	Transceiver
Protocol	RS422, RS485
Number of Drivers/Receivers	1/1
Duplex	Half
Receiver Hysteresis	50mV
Data Rate	2.5Mbps
Voltage - Supply	4.75 V ~ 5.25 V
Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

Features
♦ For Fault-Tolerant Applications
MAX3430: ±80V Fault-Protected, Fail-Safe, 1/4
Unit Load, +3.3V, RS-485 Transceiver
MAX3440E-MAX3444E: ±15kV ESD-Protected,
±60V Fault-Protected, 10Mbps, Fail-Safe,
RS-485/J1708 Transceivers
♦ For Space-Constrained Applications
MAX3460-MAX3464: +5V, Fail-Safe, 20Mbps,
Profibus RS-485/RS-422 Transceivers
MAX3362: +3.3V, High-Speed, RS-485/RS-422
Transceiver in a SOT23 Package
MAX3280E-MAX3284E: ±15kV ESD-Protected,
52Mbps, +3V to +5.5V, SOT23, RS-485/RS-422,
True Fail-Safe Receivers
MAX3293/MAX3294/MAX3295: 20Mbps, +3.3V,
SOT23, RS-855/RS-422 Transmitters
♦ For Multiple Transceiver Applications
MAX3030E-MAX3033E: ±15kV ESD-Protected,
+3.3V, Quad RS-422 Transmitters
♦ For Fail-Safe Applications
MAX3080-MAX3089: Fail-Safe, High-Speed
(10Mbps), Slew-Rate-Limited RS-485/RS-422
Transceivers
♦ For Low-Voltage Applications
MAX3483E/MAX3485E/MAX3486E/MAX3488E/
MAX3490E/MAX3491E: +3.3V Powered, ±15kV
ESD-Protected, 12Mbps, Slew-Rate-Limited,
True RS-485/RS-422 Transceivers

Applications
Low-Power RS-485 Transceivers
Low-Power RS-422 Transceivers
Level Translators
Transceivers for EMI-Sensitive Applications
Industrial-Control Local Area Networks
