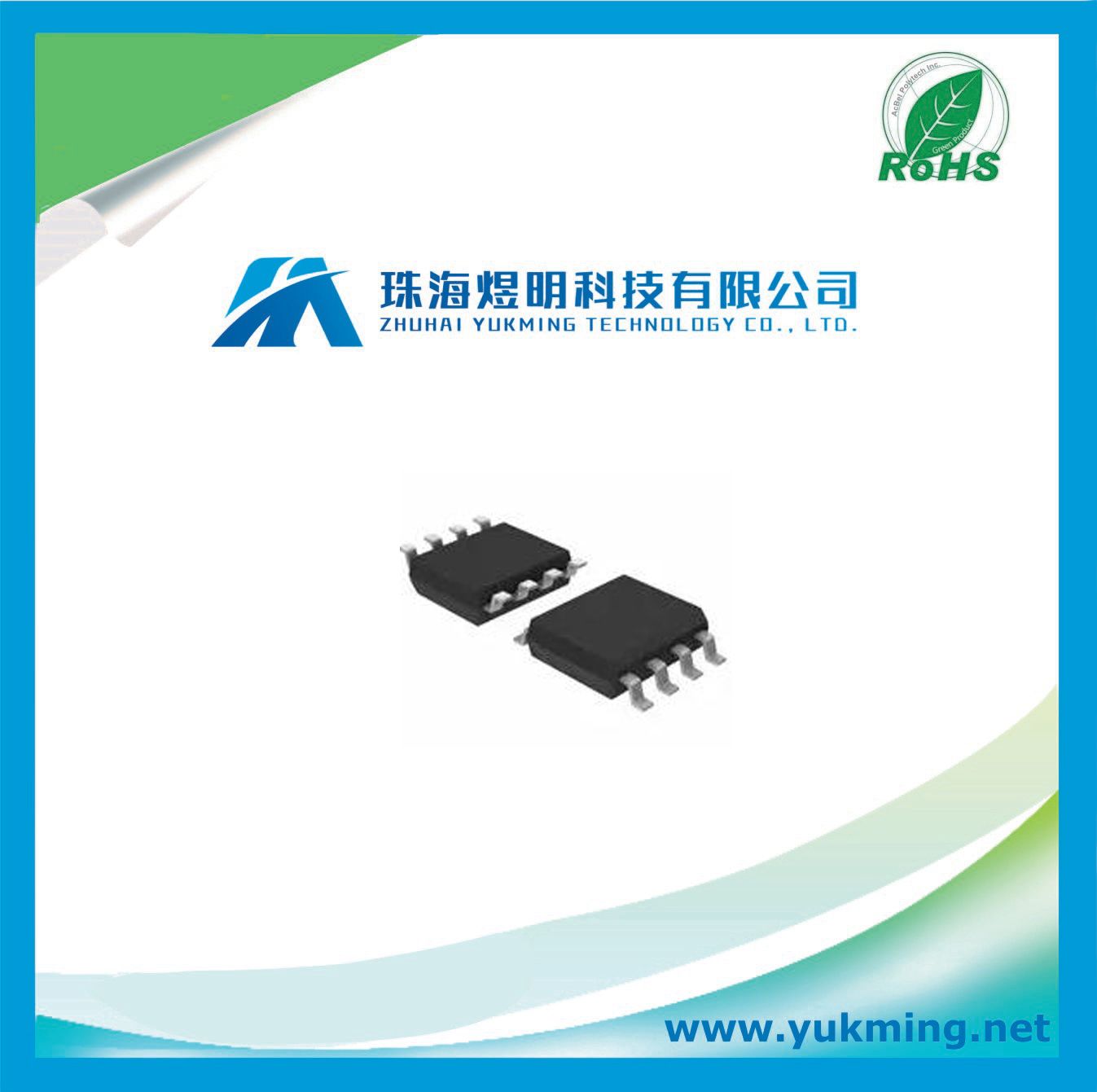

Integrated Circuit Max707CSA of Microprocessor (uP) Supervisory Circuit

Prod Model:	MAX707CSA
Family:	Pmic - Supervisors
Number Of Voltages Monitored:	1
Output:	Push-Pull, Push-Pull
Reset:	Active High/Active Low
Reset Timeout:	140 Ms Minimum
Voltage - Threshold:	4.65V
Operation Temperature:	0 Degree C ~ 70 Degree C (Ta)

Product Description

Category	Integrated Circuits (ICs)
Family	PMIC - Supervisors
Manufacturer	Maxim Integrated
Packaging	Tube
Part Status	Active
Type	Simple Reset/Power-On Reset
Number of Voltages Monitored	1
Output	Push-Pull, Push-Pull
Reset	Active High/Active Low
Reset Timeout	140 ms Minimum
Voltage - Threshold	4.65V
Operating Temperature	0 degree C ~ 70 degree C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC


General Description
The MAX705-MAX708/MAX813L microprocessor (µP)supervisory circuits reduce the complexity and numberof components required to monitor power-supply andbattery functions in µP systems. These devices signifi-cantly improve system reliability and accuracy com-pared to separate ICs or discrete components.The MAX705/MAX706/MAX813L provide four functions:1) A reset output during power-up, power-down, andbrownout conditions.2) An independent watchdog output that goes low ifthe watchdog input has not been toggled within 1.6seconds.3) A 1.25V threshold detector for power-fail warning,low-battery detection, or for monitoring a power sup-ply other than +5V.4) An active-low manual-reset input.The MAX707/MAX708 are the same as the MAX705/MAX706, except an active-high reset is substituted forthe watchdog timer. The MAX813L is the same as theMAX705, except RESET is provided instead of RESET.Two supply-voltage monitor levels are available: TheMAX705/MAX707/MAX813L generate a reset pulse whenthe supply voltage drops below 4.65V, while theMAX706/MAX708 generate a reset pulse below 4.40V.All four parts are available in 8-pin DIP, SO and µMAXpackages

Applications
Computers
Controllers
Intelligent Instruments
Automotive Systems
Critical uP Power Monitoring

Features
µMAX Package: Smallest 8-Pin SO
Guaranteed RESET Valid at VCC = 1V
Precision Supply-Voltage Monitor
  4.65V in MAX705/MAX707/MAX813L
  4.40V in MAX706/MAX708
200ms Reset Pulse Width
Debounced TTL/CMOS-Compatible
Manual-Reset Input
Independent Watchdog Timer-1.6sec Timeout
(MAX705/MAX706)
Active-High Reset Output
(MAX707/MAX708/MAX813L)
Voltage Monitor for Power-Fail or Low-Battery
Warning
