Integrated Circuit Max8574eut-T of LCD Boostwith True Shutdown IC

Name: Integrated Circuit Max8574eut-T of LCD Boostwith True Shutdown IC
Brand: all-electronics-online.com
SKU: 796888455
Availability: InStock
Rating: 4.3 (140 reviews)

Price:	US $ 2.7/Piece
Min Order:	60/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

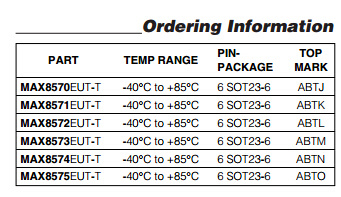

Prod Model:	MAX8574EUT-T

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

General Description
The MAX8570 family of LCD step-up converters uses
an internal n-channel switch and an internal p-channel
output isolation switch. These converters operate from
a 2.7V to 5.5V supply voltage and deliver up to 28V at
the output.
A unique control scheme provides the highest efficiency
over a wide range of load conditions. The internal
MOSFET switch reduces external component count and
a high switching frequency (up to 800kHz) allows for
tiny surface-mount components. Three current-limit
options are available. The MAX8570 and MAX8572 use
a 110mA current limit to reduce ripple and component
size in low-current applications. For high-power requirements,
the MAX8574 and MAX8575 use a 500mA current
limit and supply up to 20mA at 20V. The MAX8571
and MAX8573 use a 250mA current limit for a compromise
between ripple and power. Built-in safety features
protect the internal switch and down-stream components
from fault conditions.
Additional features include a low quiescent current and
a True Shutdown^TM mode to save power. The MAX8570/
MAX8571/MAX8574 allow the user to set the output
voltage between 3V and 28V, and the MAX8572/
MAX8573/MAX8575 have a preset 15V output. These
step-up converters are ideal for small LCD panels with
low current requirements, but can also be used in other
applications. The MAX8571 evaluation kit is available to
help reduce design time.

Features
15V or adjustable output voltage up to 28V
Safety features protect against output faults
20mA at 20V from a single Li+ battery
True shutdown
87% efficiency
Up to 800KHz switching frequency
Small 6-pin SOT23 package

Applications
LCD bias generators
Polymer LEDs (OLED)
Cellular or cordless phones
Palmtop computers
Personal Digital assistants (PDAs)
Organizers
Handy terminals

Category	Integrated Circuits (ICs)
Family	PMIC - Voltage Regulators - Special Purpose
Manufacturer	Maxim Integrated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Applications	Converter, LCD
Voltage - Input	2.7 V ~ 5.5 V
Number of Outputs	1
Voltage - Output	2.7 V ~ 28 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount

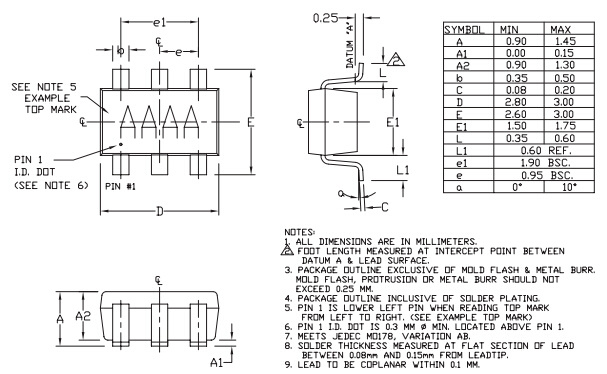

Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6
