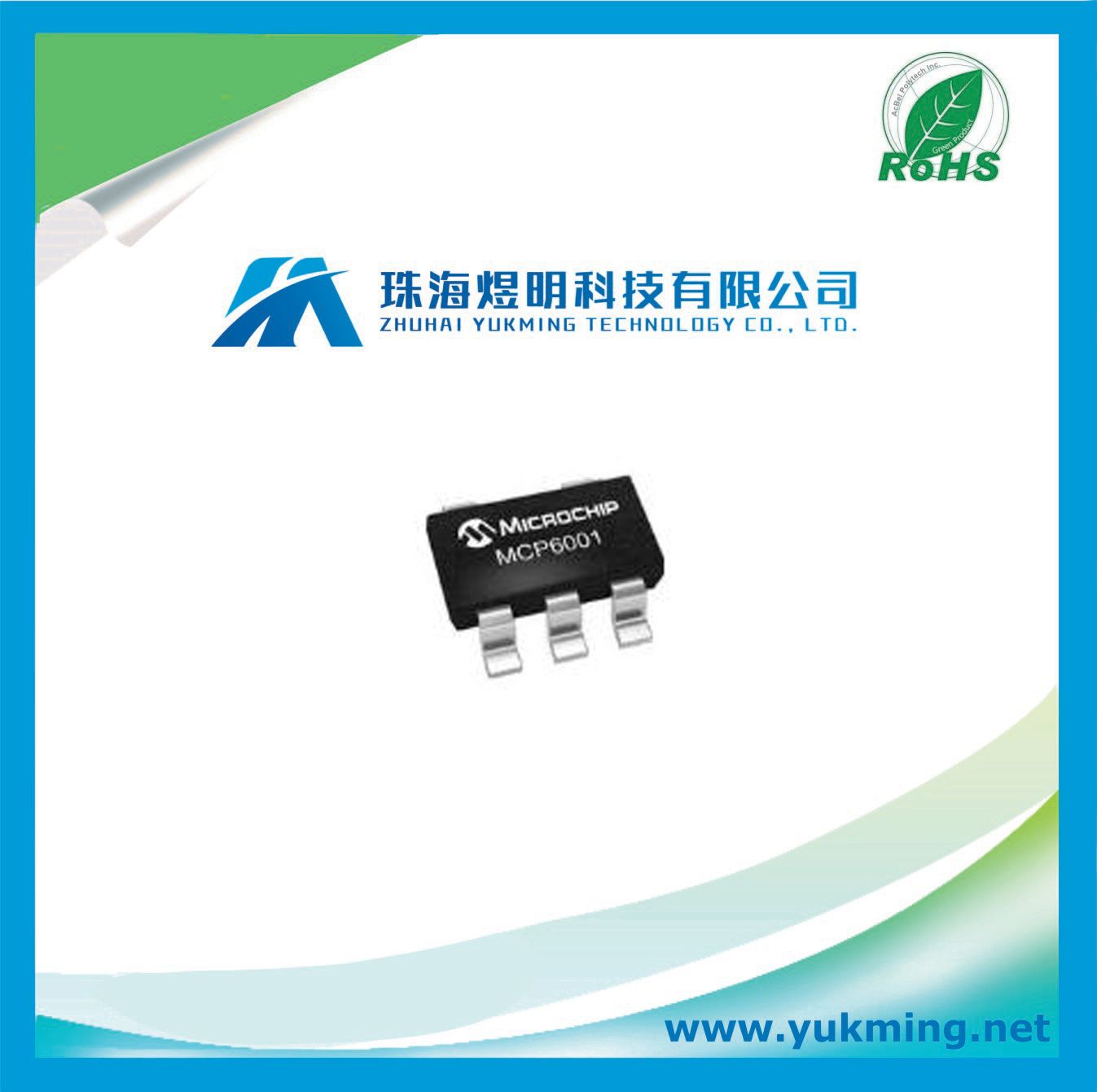

Integrated Circuit Mcp6001t-I/Ot of General Purpose Amplifier IC

Prod Model:	MCP6001T-I/OT
Number Of Channels Per Chip:	1
Technology:	CMOS
Output Type:	CMOS
Typical Gain Bandwidth Product (MHz):	1
Maximum Single Supply Voltage (V):	6
Operating Temperature Range:	- 40 to 85 Deg C
Minimum Single Supply Voltage (V):	1.8
Minimum Cmrr (dB):	60

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Microchip Technology

PRODUCT CATEGORY
OP Amp

DESCRIPTION
OP Amp Single GP R-R I/O 6V Automotive 5-Pin SOT-23 T/R

If you need your circuit to perform basic mathematical operations such as addition, subtraction, differentiation, and integration then general purpose amplifier MCP6001T-I/OT OP amp from Microchip Technology is perfect for you! This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a single channel per chip. This device uses a single power supply. This device is made with CMOS technology.

Specifications
EU RoHS Compliant
Manufacturer Type Low Power Amplifier
Type General Purpose Amplifier
Number of Channels per Chip 1
Technology CMOS
Rail to Rail Rail to Rail Input/Output
Output Type CMOS
Typical Gain Bandwidth Product (MHz) 1
Maximum Input Offset Voltage (mV) [email protected]
Maximum Input Offset Current (uA) 0.000001(Typ)@5.5V
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Minimum PSRR (dB) 86(Typ)
Packaging Tape and Reel
Maximum Single Supply Voltage (V) 6
Typical Slew Rate (V/us) [email protected]
Shut Down Support No
Minimum Single Supply Voltage (V) 1.8
Typical Single Supply Voltage (V) 3|5
Minimum CMRR (dB) 60
Typical Voltage Gain (dB) 112
Power Supply Type Single
Temperature Grade Industrial
Mounting Surface Mount
Package Height (mm) 1.3(Max)
Package Length (mm) 3.1(Max)
Package Width (mm) 1.8(Max)
PCB changed 5
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 5
Lead Shape Gull-wing
