Integrated Circuit Mux36D04ipwr of Analog Switches, Multiplexers, Demultiplexer IC

Name: Integrated Circuit Mux36D04ipwr of Analog Switches, Multiplexers, Demultiplexer IC
Brand: all-electronics-online.com
SKU: 807395805
Availability: InStock
Rating: 4.8 (47 reviews)

Price:	US $ 6.8/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MUX36D04IPWR
Multiplexer/Demultiplexer Circuit:	4:1
Number Of Circuits:	2
On-State Resistance (Max):	170 Ohm
Channel-to-Channel Matching (Δron):	2.4 Ohm
Voltage - Supply, Single (V+):	10 V ~ 36 V
Operating Temperature Range:	-40 to 125 Degree C (Ta)
Voltage - Supply, Dual (V±):	+/-5 V ~ 18 V

Product Description

Categories	Integrated Circuits (ICs)
Categories	Interface - Analog Switches, Multiplexers, Demultiplexers
Manufacturer	Texas Instruments
Packaging	Tape & Reel (TR)
Part Status	Active
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	170 Ohm
Channel-to-Channel Matching (ΔRon)	2.4 Ohm
Voltage - Supply, Single (V+)	10 V ~ 36 V
Voltage - Supply, Dual (V±)	±5 V ~ 18 V
Switch Time (Ton, Toff) (Max)	136ns, 75ns
Charge Injection	0.3pC
Channel Capacitance (CS(off), CD(off))	2.4pF, 4.3pF
Current - Leakage (IS(off)) (Max)	400pA
Crosstalk	-96dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)

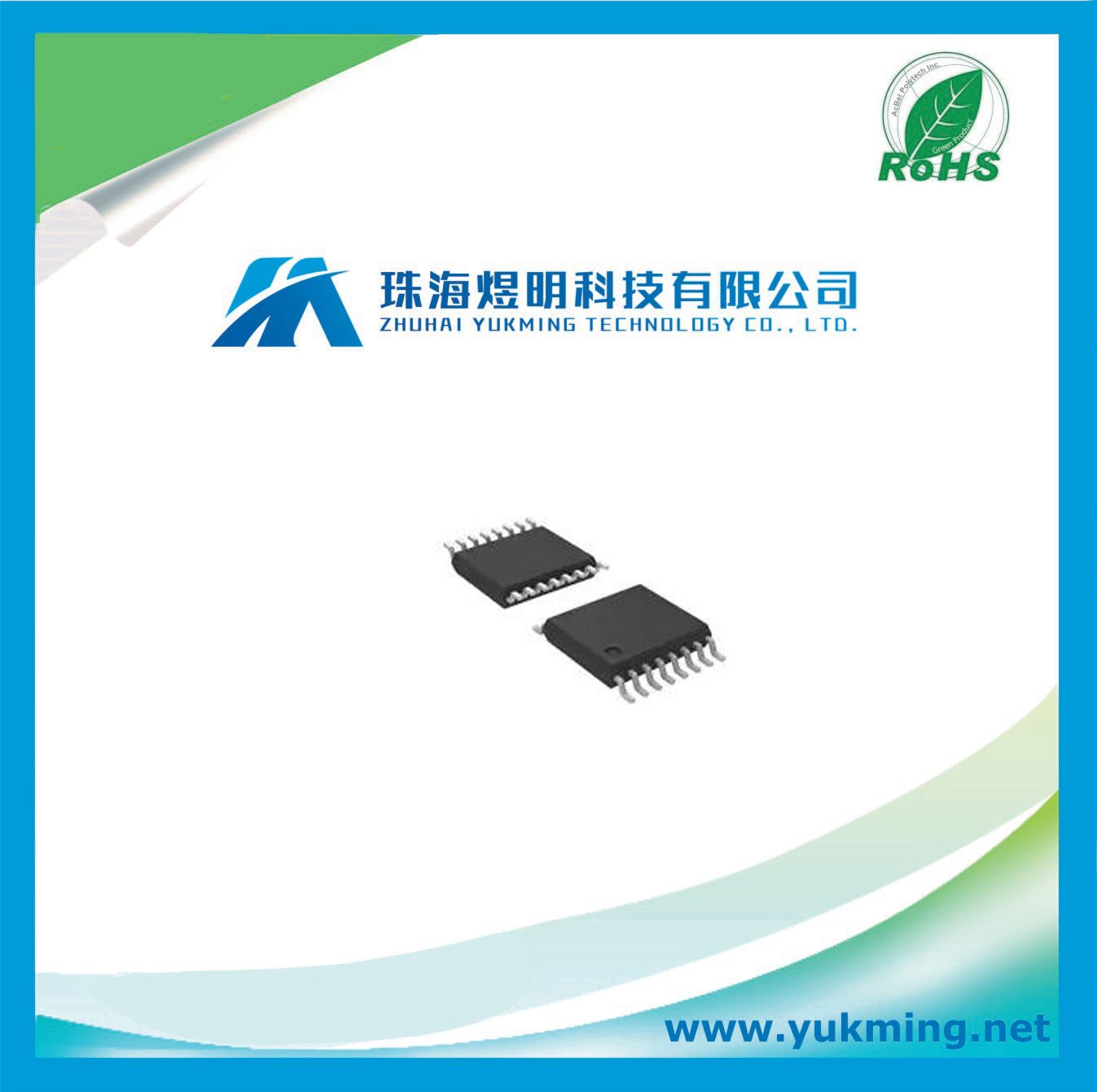

Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP

Features
•Low On-Capacitance
-MUX36S08: 9.4pF
-MUX36D04: 6.7pF
•Low Input Leakage: 1 pA
•Low Charge Injection: 0.3 pC
•Rail-to-Rail Operation
•Wide Supply Range: ±5 V to ±18 V, 10 V to 36 V
•Low On-Resistance: 125Ω
•Transition Time: 92 ns
•Break-Before-Make Switching Action
•EN Pin Connectable to VDD
•Logic Levels: 2 V to VDD
•Low Supply Current: 45 µA
•ESD Protection HBM: 2000 V
•Industry-Standard TSSOP Package

Applications
•Factory Automation and Industrial Process Control
•Programmable Logic Controllers (PLC)
•Analog Input Modules
•ATE Test Equipment
•Digital Multimeters
•Battery Monitoring System
