| Prod Model: |
TXS0108EPWR |
| Maximum Low Level Output Current (Ma): |
50 |
| Maximum High Level Output Current (Ma): |
-50 |
| Operation Temperature Range: |
-40 ~ 85 |
| Minimum Operating Supply Voltage (V): |
1.2/1.65 |
| Maximum Operating Supply Voltage: |
3.6/5.5 |
Product Description
Hello, Thank you for your visiting!
We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.Come to us, and we will try the best to support you by controlling our cost as possible as we can. | Lead time | Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery. |
| Guarantee | 100% original assembled new ; 30 days warranty |
| Payment | Hang Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express as you require |

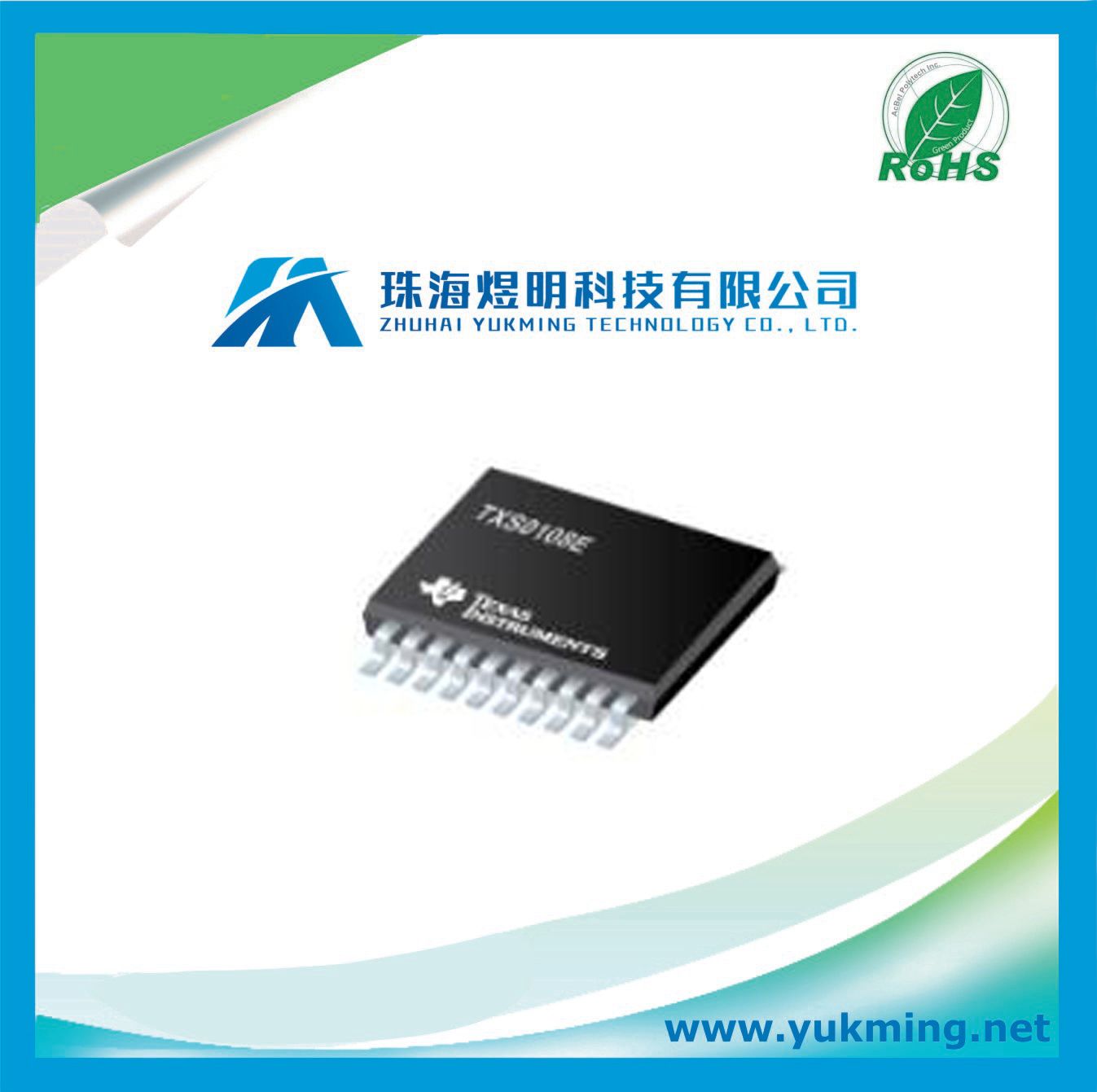

MANUFACTURERTexas Instruments PRODUCT CATEGORYLevel Translator DESCRIPTIONVoltage Level Translator 20-Pin TSSOP T/R DescriptionThis 8-bit non-inverting translator uses two separate configurable power-supply rails. The A port tracks the VCCA pin supply voltage. The VCCA pin accepts any supply voltage between 1.2 V and 3.6 V. The B port tracks the VCCB pin supply voltage. The VCCB pin accepts any supply voltage between 1.65 V and 5.5 V. Two input supply pins allows for low Voltage bidirectional translation between any of the 1.2 V, 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes.When the output-enable (OE) input is low, all outputs are placed in the high-impedance (Hi-Z) state.To ensure the Hi-Z state during power-up or power-down periods, tie OE to GND through a pull-down resistor. The minimum value of the resistor is determined by the current-sourcing capability of the driver. FeaturesNo Direction-Control Signal NeededMaximum Data Rates110 Mbps (Push Pull)1.2 Mbps (Open Drain)1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)No Power-Supply Sequencing Required - Either VCCA or VCCB Can Be Ramped FirstLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Protection Exceeds JESD 22 (A Port)2000 V Human Body Model (A114-B)150 V Machine Model (A115-A)1000 V Charged-Device Model (C101)IEC 61000-4-2 ESD (B Port)±8 kV Contact Discharge±6 kV Air-Gap Discharge SpecificationsEU RoHS Compliant Logic Function Voltage Level TranslatorOutput Type Open DrainMaximum Low Level Output Current (mA) 50Maximum High Level Output Current (mA) -50Minimum Operating Temperature (°C) -40Maximum Operating Temperature (°C) 85Packaging Tape and ReelMinimum Operating Supply Voltage (V) 1.2/1.65Maximum Operating Supply Voltage (V) 3.6/5.5Typical Operating Supply Voltage (V) 1.8|1.8/2.5|1.8/3.3|1.8/5|2.5/1.8|2.5|2.5/3.3|2.5/5|3.3/1.8|3.3/2.5|3.3/5Maximum Quiescent Current (mA) 0.003(Typ)Absolute Propagation Delay Time (ns) 312Mounting Surface MountPackage Height (mm) 1.05(Max)Package Length (mm) 6.6(Max)Package Width (mm) 4.5(Max)PCB changed 20Standard Package Name SOPSupplier Package TSSOPPin Count 20Lead Shape Gull-wing Applications• Handsets• Smartphones• Tablets• Desktop PCs
