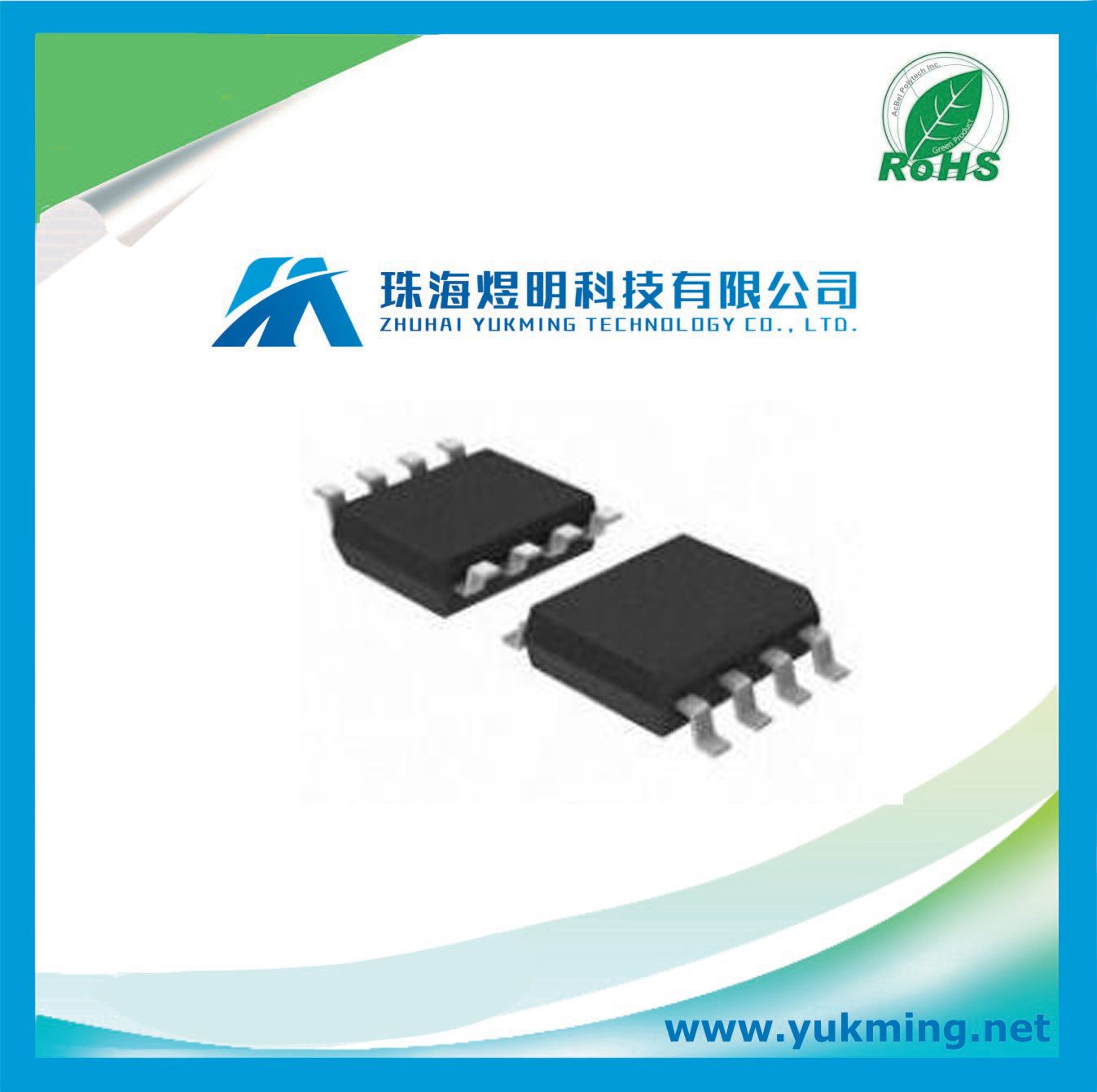

Integrated Circuit Njm4558m-Te2 of Operational Amplifier IC

Name: Integrated Circuit Njm4558m-Te2 of Operational Amplifier IC
Brand: all-electronics-online.com
SKU: 799706885
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	US $ 0.0778/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NJM4558M-TE2
Category:	Operational Amplifier
Operating Supply Voltage:	+/- 4 V to +/- 18 V
Shutdown:	No
Operation Temperature Range:	-40 ~ 85

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

The NJM4558/4559 integrated circuit are a dual high-gain operational amplifier internally compensated and constructed on a single silicon chip using an advanced epitaxial process.Combining the features of the NJM741 with the close parameter matching and tracking of a dual device on a monolithic chip results in unique performance characteristics. Excellent channel separation allow the use of the dual device single NJM741 operational amplifier applications providing density. It is especially well suited for applications in differential-in, differential-out as well as in potentiometric amplifiers and where gain and phase matched channels are rnandatory.

• Absolute Maximum Ratings (Ta=25'C)
Supply Voltage                 V+N       ±18V
Differential Input Voltage         VID       ±30V
Input Voltage (note)              V,        ±15V
Power Dissipation PI)           (D-Type)   500mW
                             (M,E-Type) 30UmW
                             (L-Type)    800rnw
Operating Temperature Range   Topr      -20-+75"C
Storage Temperature Range    T!'l18      -40-+ I25"C

(note) For supply voltage less than ± 15V,the absolute maximum
input voltage is equal to the supply voltage.
