Integrated Circuit Njm4560m-Te1 of Dual Operational Amplifier IC

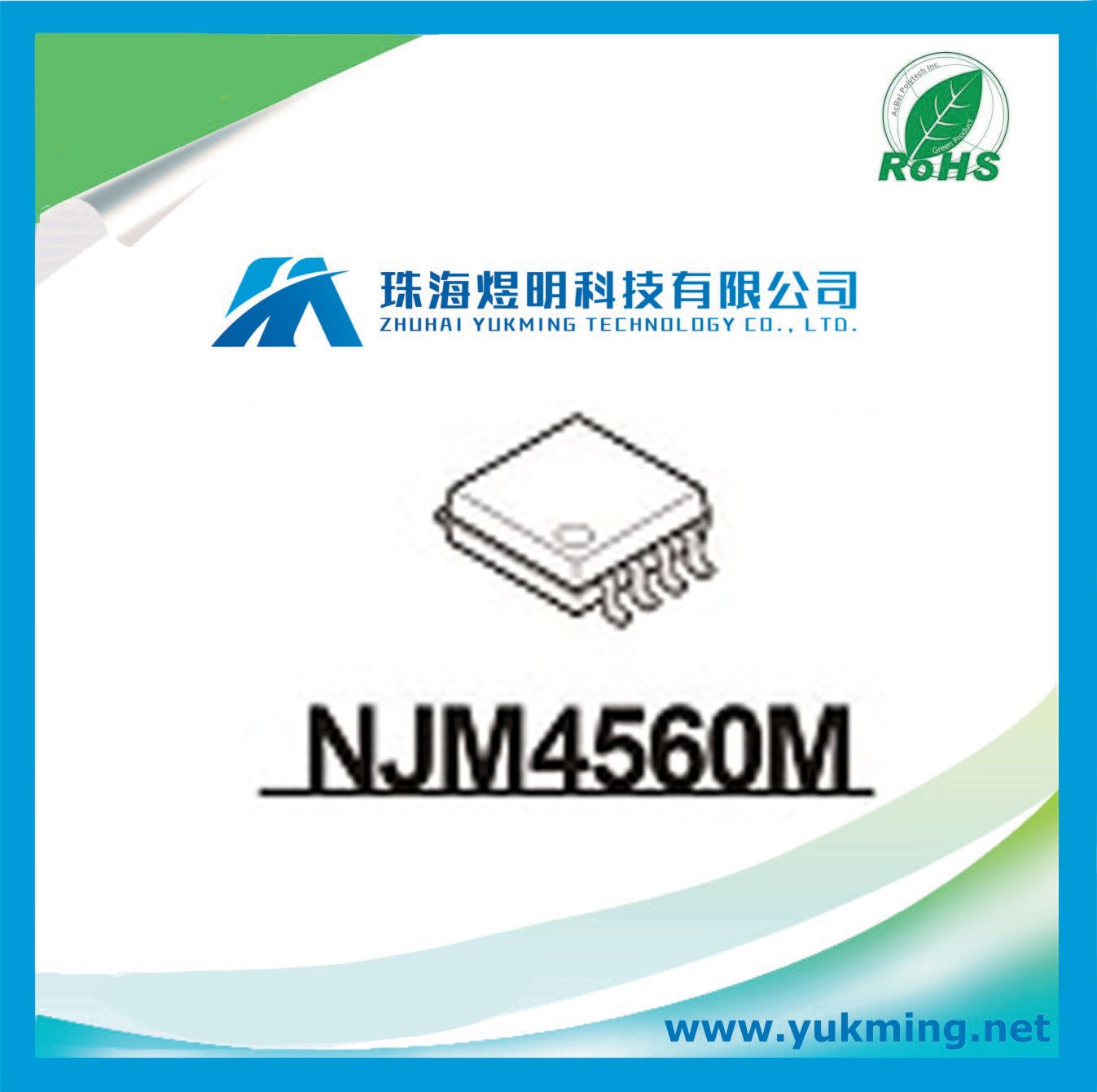

Name: Integrated Circuit Njm4560m-Te1 of Dual Operational Amplifier IC
Brand: all-electronics-online.com
SKU: 796808115
Availability: InStock
Rating: 4.3 (34 reviews)

Price:	US $ 0.15/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NJM4560M-TE1
Certification:	RoHS

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

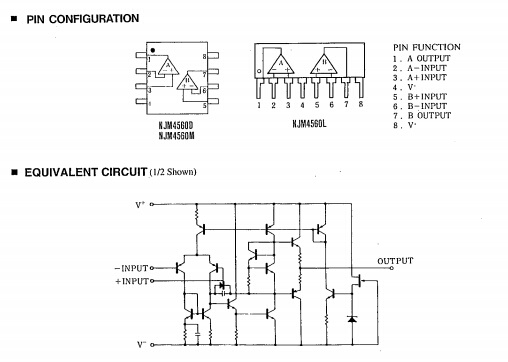

GENERAL DESCRIPTION
The NJM4560 integrated circuit is a high-gain, wide
bandwidth, dual operational amplifier capable of driving 20V
peak-to-peak into 400Ω loads. The NJM4560 combines
many of the features of the NJM4558 as well as providing the
capability of wider bandwidth, and higher slew rate make the
NJM4560 ideal for active filters, data and telecommunications,
and many instrumentation applications. The availability of the
NJM4560 in the surface mounted micro-package allows the
NJM4560 to be used in critical applications requiring very high
packing densities.

Manufacturer: NJR
RoHS: Yes
Minimum CMRR: 70 dB
Power Supply Type: Dual
Rail to Rail: No
Typical Single Supply Voltage: N/R
Typical Slew Rate: 4@±15V V/us
Family: NJM4560
Maximum Supply Current: 5.7@±15V mA
Minimum Dual Supply Voltage: ±4 V
Supplier_Package: DMP
Packaging: Tape and Reel
Typical Dual Supply Voltage: ±5,±9,±12,±15 V
Minimum PSRR: N/A
Pin_Count: 8
Maximum Single Supply Voltage: N/R
Maximum Dual Supply Voltage: ±18 V
Mounting: Surface Mount
Minimum Single Supply Voltage: N/R
Technology: Bipolar
Operating Temperature: -40 to 85 °C
Dimension: 5 x 5 x 1.6mm

Features
Operating voltage (±4V~±18V)
Wide Gain Bandwidth Product (10MHz typ.)
Slew Rate (4V/μs typ.)
Package Outline DIP8, DMP8, SIP8
Bipolar Technology
