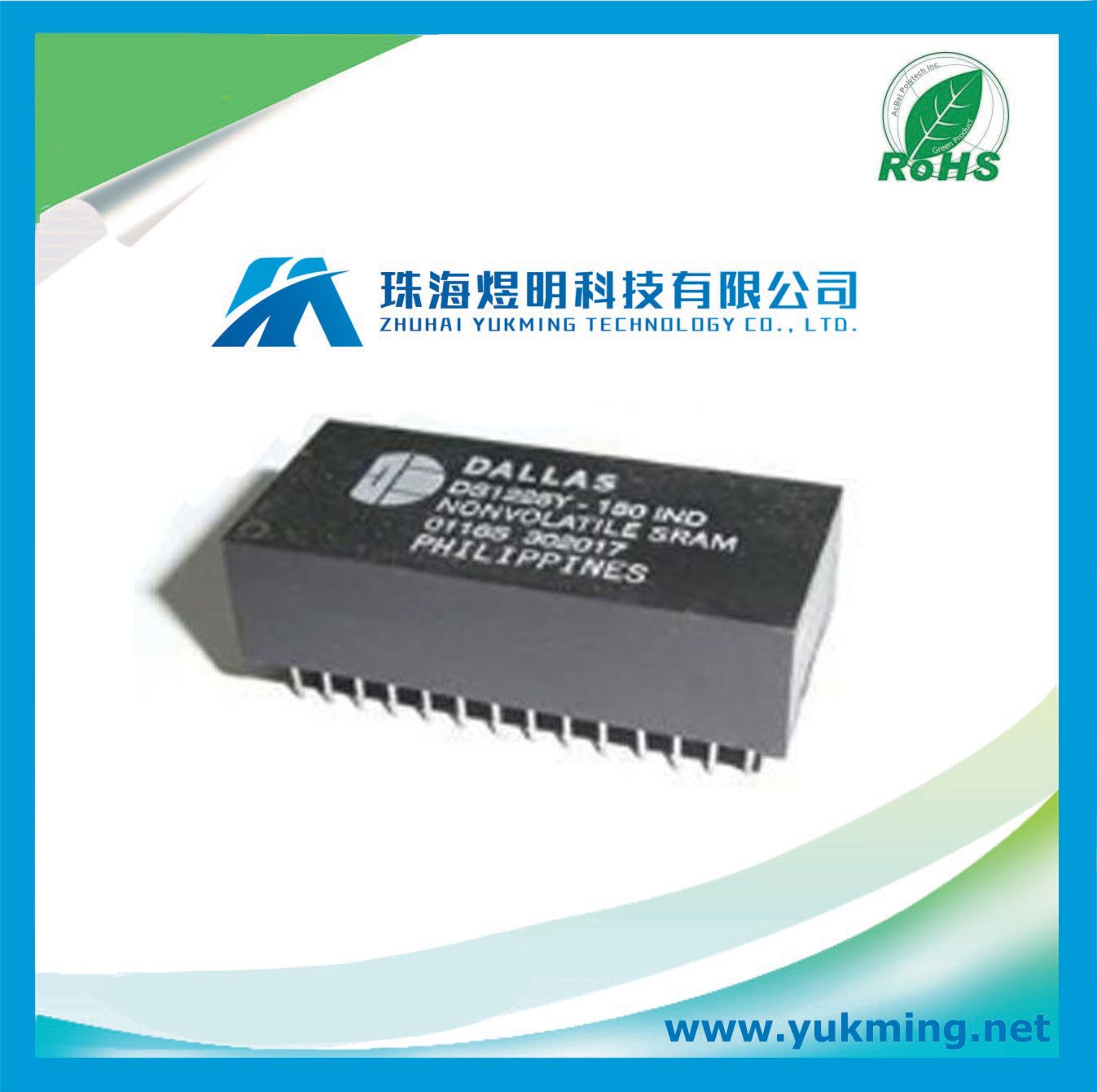

Integrated Circuit of 64k Nonvolatile Sram IC Ds1225y-150+

Prod Model:	DS1225Y-150+

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

DESCRIPTION
The DS1225Y 64K Nonvolatile SRAM is a 65,536-bit, fully static, nonvolatile RAM organized as 8192 words by 8 bits. Each NV SRAM has a self-contained lithium energy source and control circuitry which constantly monitors VCC for an out-of-tolerance condition. When such a condition occurs, the lithium energy source is automatically switched on and write protection is unconditionally enabled to prevent data corruption. The NV SRAM can be used in place of existing 8K x 8 SRAMs directly conforming to the popular bytewide 28-pin DIP standard. The DS1225Y also matches the pinout of the 2764 EPROM or the 2864 EEPROM, allowing direct substitution while enhancing performance. There is no limit on the number of write cycles that can be executed and no additional support circuitry is required for microprocessor interfacing.

FEATURES
• 10 years minimum data retention in the absence of
external power
• Data is automatically protected during power loss
• Directly replaces 8K x 8 volatile static RAM or EEPROM
• Unlimited write cycles
• Low-power CMOS

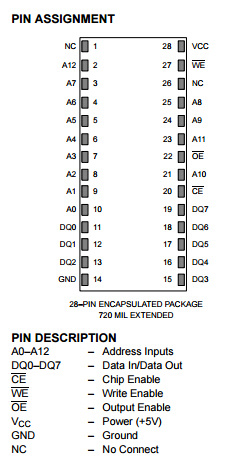

• JEDEC standard 28-pin DIP package
• Read and write access times as fast as 150 ns
• Full ±10% operating range
• Optional industrial temperature range of -40°C to
+85°C, designated IND

Product Attributes

Category	Integrated Circuits (ICs)
Family	Memory
Manufacturer	Maxim Integrated
Series	-
Packaging	Tube
Format - Memory	RAM
Memory Type	NVSRAM (Non-Volatile SRAM)
Memory Size	64K (8K x 8)
Speed	150ns
Interface	Parallel
Voltage - Supply	4.5 V ~ 5.5 V
Operating Temperature	0°C ~ 70°C (TA)

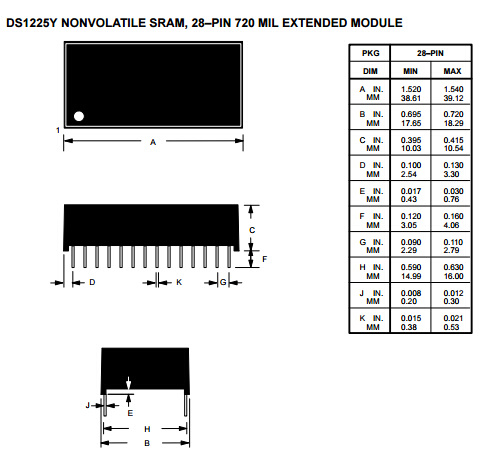

Package / Case	28-DIP Module (0.600", 15.24mm)
Supplier Device Package	28-EDIP
