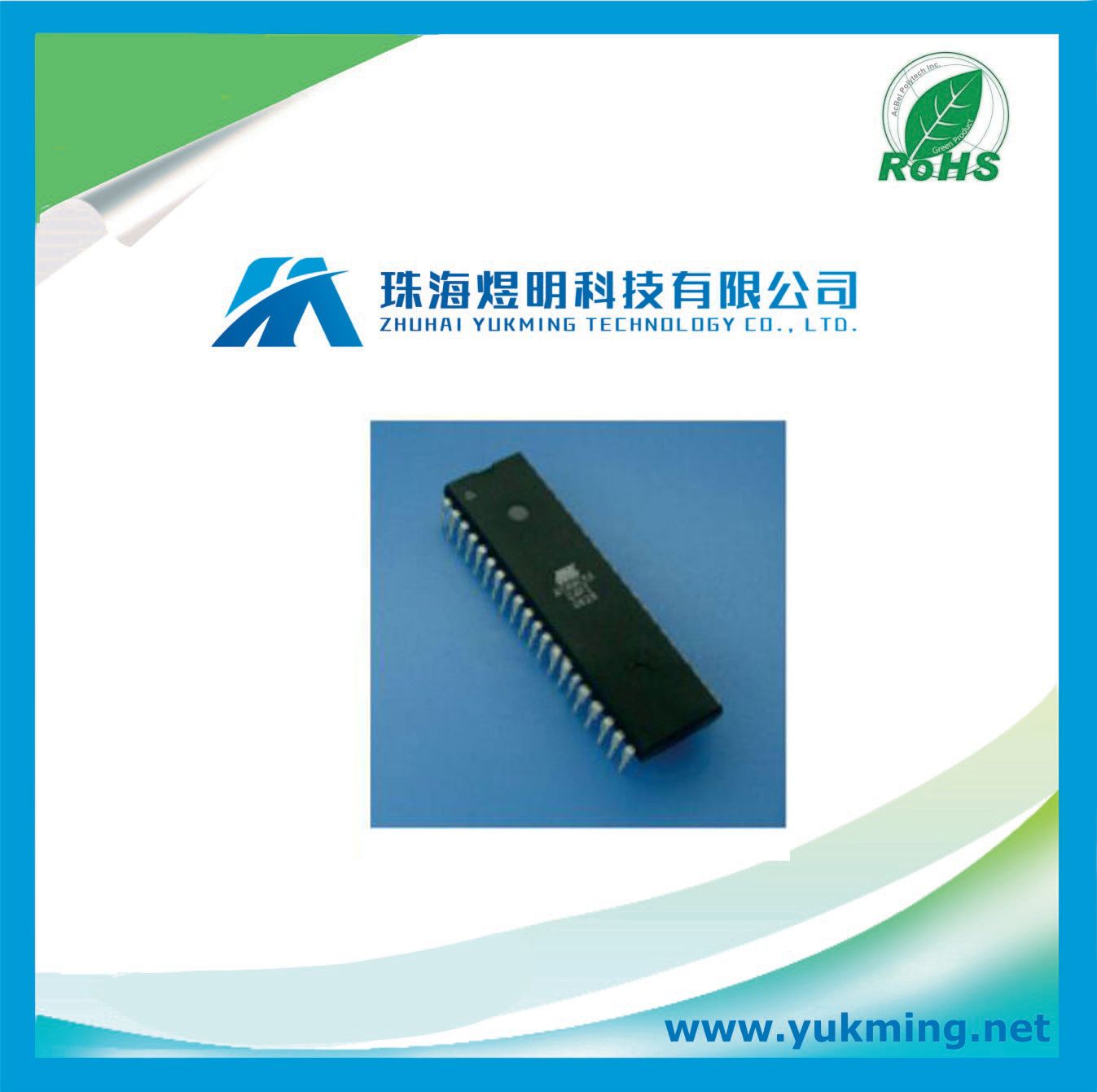

Integrated Circuit of 8k Bytes Microcontroller Flash IC At89c52-24pi

Name: Integrated Circuit of 8k Bytes Microcontroller Flash IC At89c52-24pi
Brand: all-electronics-online.com
SKU: 796737655
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	US $ 10.63/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AT89C52-24PI
Series:	89c
Family:	Embedded - MCU
CPU:	8051
Core Dimension:	8-Bit
Speed:	24MHz
ROM Type:	Flash
RAM Capacity:	256 X 8
Operating Temperature:	-40°c ~ 85°c
Voltage-Power (Vcc/Vdd):	4 V ~ 6 V

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Description
The AT89C52 is a low-power, high-performance CMOS 8-bit microcomputer with 8K
bytes of Flash programmable and erasable read only memory (PEROM). The device
is manufactured using Atmel's high-density nonvolatile memory technology and is
compatible with the industry-standard 80C51 and 80C52 instruction set and pinout.
The on-chip Flash allows the program memory to be reprogrammed in-system or by a
conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU
with Flash on a monolithic chip, the Atmel AT89C52 is a powerful microcomputer
which provides a highly-flexible and cost-effective solution to many embedded control
applications.

Features
• Compatible with MCS-51™ Products
• 8K Bytes of In-System Reprogrammable Flash Memory
• Endurance: 1,000 Write/Erase Cycles
• Fully Static Operation: 0 Hz to 24 MHz
• Three-level Program Memory Lock
• 256 x 8-bit Internal RAM
• 32 Programmable I/O Lines
• Three 16-bit Timer/Counters
• Eight Interrupt Sources
• Programmable Serial Channel
• Low-power Idle and Power-down Modes

Catalogue: Integrated Circuit (IC)
Family: Embedded - MCU
Series: 89C
Packing type: pipe
CPU: 8051
Core dimension: 8-bit
Speed: 24MHz
Connectivity: SIO,UART/USART
I/O No.: 32
Program memory capacity:8KB(8K x 8)
ROM type: flash
RAM capacity: 256 x 8
Voltage-power (Vcc/Vdd): 4 V ~ 6 V
Oscillator type: inner
Operating temperature: -40°C ~ 85°C

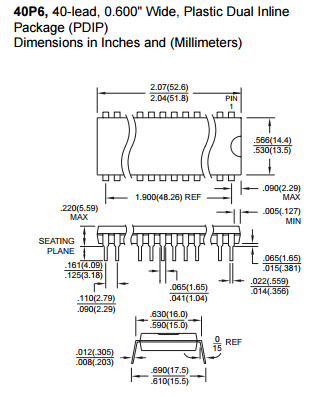

Package: 40-DIP(0.600",15.24mm)
