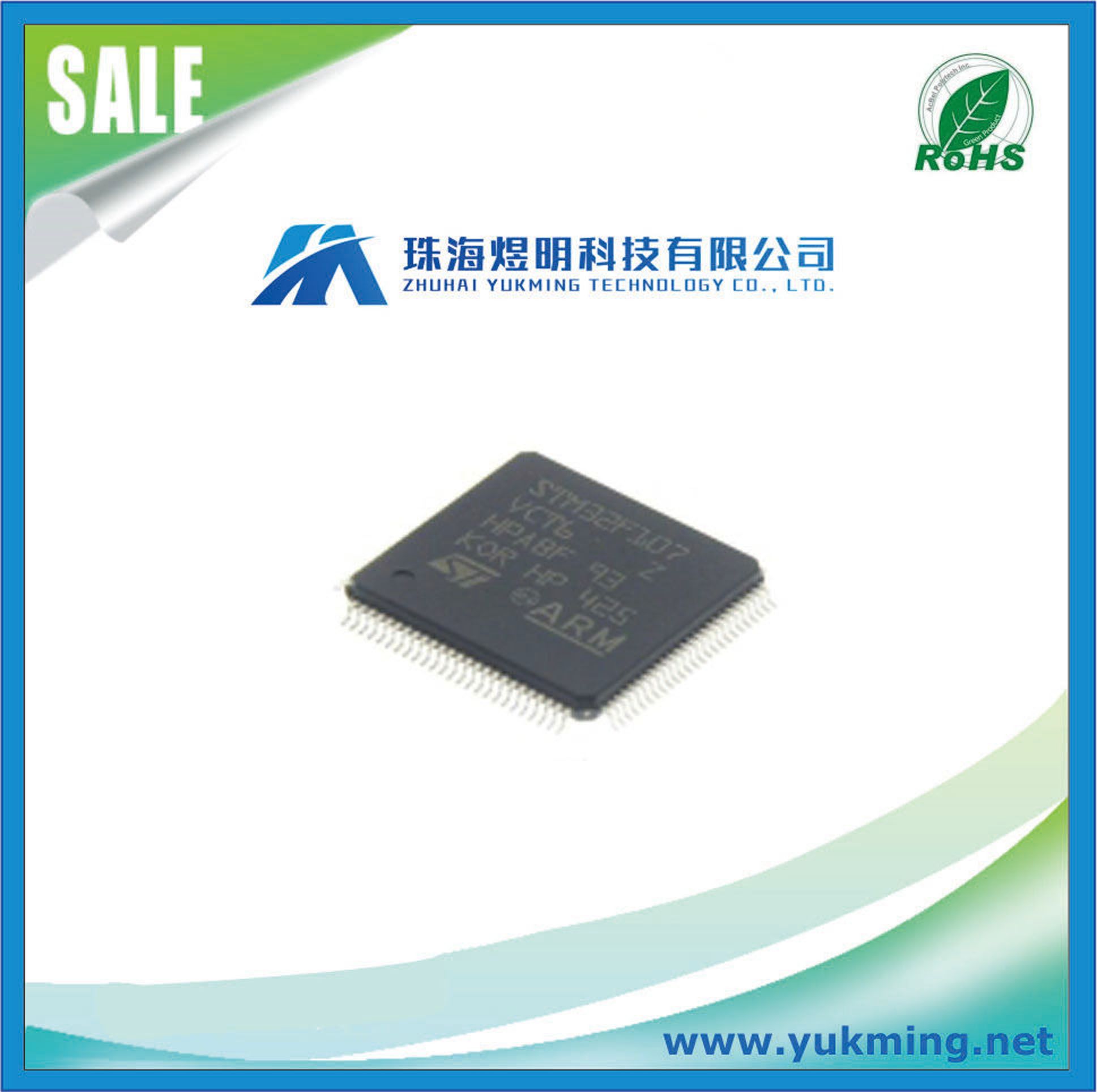

Integrated Circuit of Arm-Based 32-Bit MCU IC with Flash

Name: Integrated Circuit of Arm-Based 32-Bit MCU IC with Flash
Brand: all-electronics-online.com
SKU: 782040575
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	US $ 4.49/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	STM32F107VCT6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Series:	Stm32 F1
Packaging:	Tray
Part Status:	Active
Core Processor:	Arm Cortex -M3
Core Size:	32-Bit
Speed:	72MHz
Number Of I/O:	80
Program Memory Size:	256kb (256k X 8)
Program Memory Type:	Flash
RAM Size:	64k X 8

Product Description

Category	Integrated Circuits (ICs)
Family	Embedded - Microcontrollers
Manufacturer	STMicroelectronics
Series	STM32 F1
Packaging	Tray
Part Status	Active
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit
Speed	72MHz
Connectivity	CAN, Ethernet, I²C, IrDA, LIN, SPI, UART/USART, USB OTG
Peripherals	DMA, POR, PWM, Voltage Detect, WDT
Number of I/O	80
Program Memory Size	256KB (256K x 8)
Program Memory Type	FLASH
EEPROM Size	-
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	2 V ~ 3.6 V
Data Converters	A/D 16x12b; D/A 2x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)

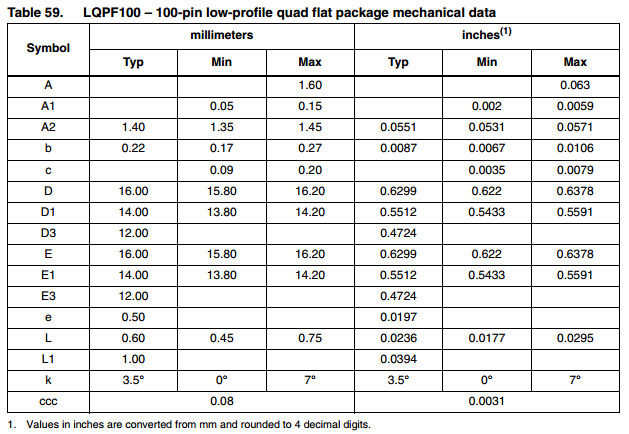

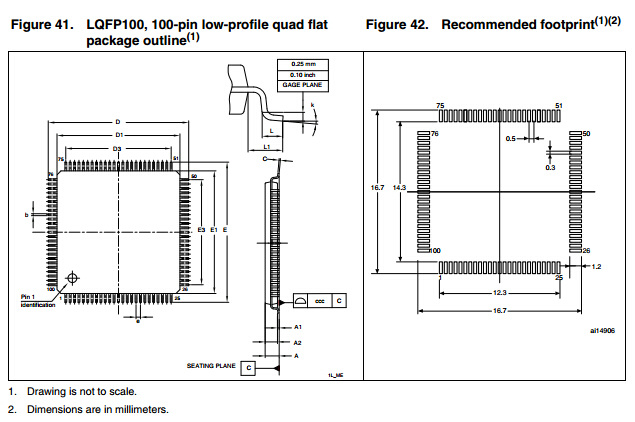

Package / Case	100-LQFP
Supplier Device Package	*

Manufacturer:STMICRPOELECTRONIC
Min working temp:-40ºC
Max working temp:85ºC
Max frequency:72MHz
Typical working supply current:2-3.6V
Package:LQFP100
