Integrated Circuit of CMOS Integrated Transceiver Circuit Em4095

Name: Integrated Circuit of CMOS Integrated Transceiver Circuit Em4095
Brand: all-electronics-online.com
SKU: 796880335
Availability: InStock
Rating: 4.9 (87 reviews)

Price:	US $ 1.59/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EM4095

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Description
The EM4095 (previously named P4095) chip is a CMOS
integrated transceiver circuit intended for use in an RFID
basestation to perform the following functions:
- antenna driving with carrier frequency
- AM modulation of the field for writable transponder
- AM demodulation of the antenna signal modulation
induced by the transponder
communicate with a microprocessor via simple interface.

Features
• Integrated PLL system to achieve self adaptive
carrier frequency to antenna resonant frequency
• No external quartz required
• 100 to 150 kHz carrier frequency range
• Direct antenna driving using bridge drivers
• Data transmission by OOK (100% Amplitude
Modulation) using bridge driver
• Data transmission by Amplitude Modulation with
externally adjustable modulation index using single
ended driver
• Multiple transponder protocol compatibility
(Ex: EM400X, EM4050, EM4150, EM4070, EM4170,
EM4069….)
• Sleep mode 1µA
• USB compatible power supply range
• 40 to +85°C temperature range

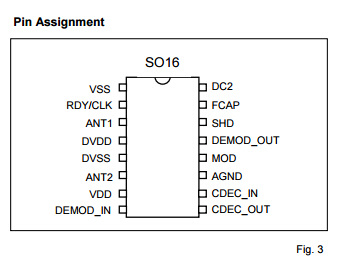

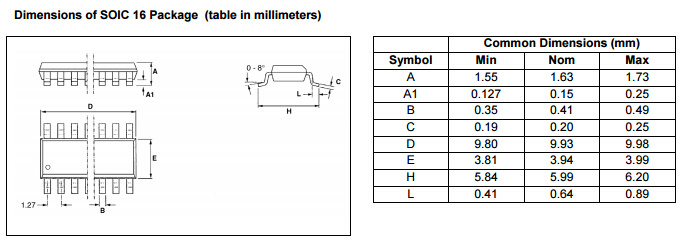

• Small outline plastic package SO16

Applications
• Car immobiliser
• Hand held reader
• Low cost reader
