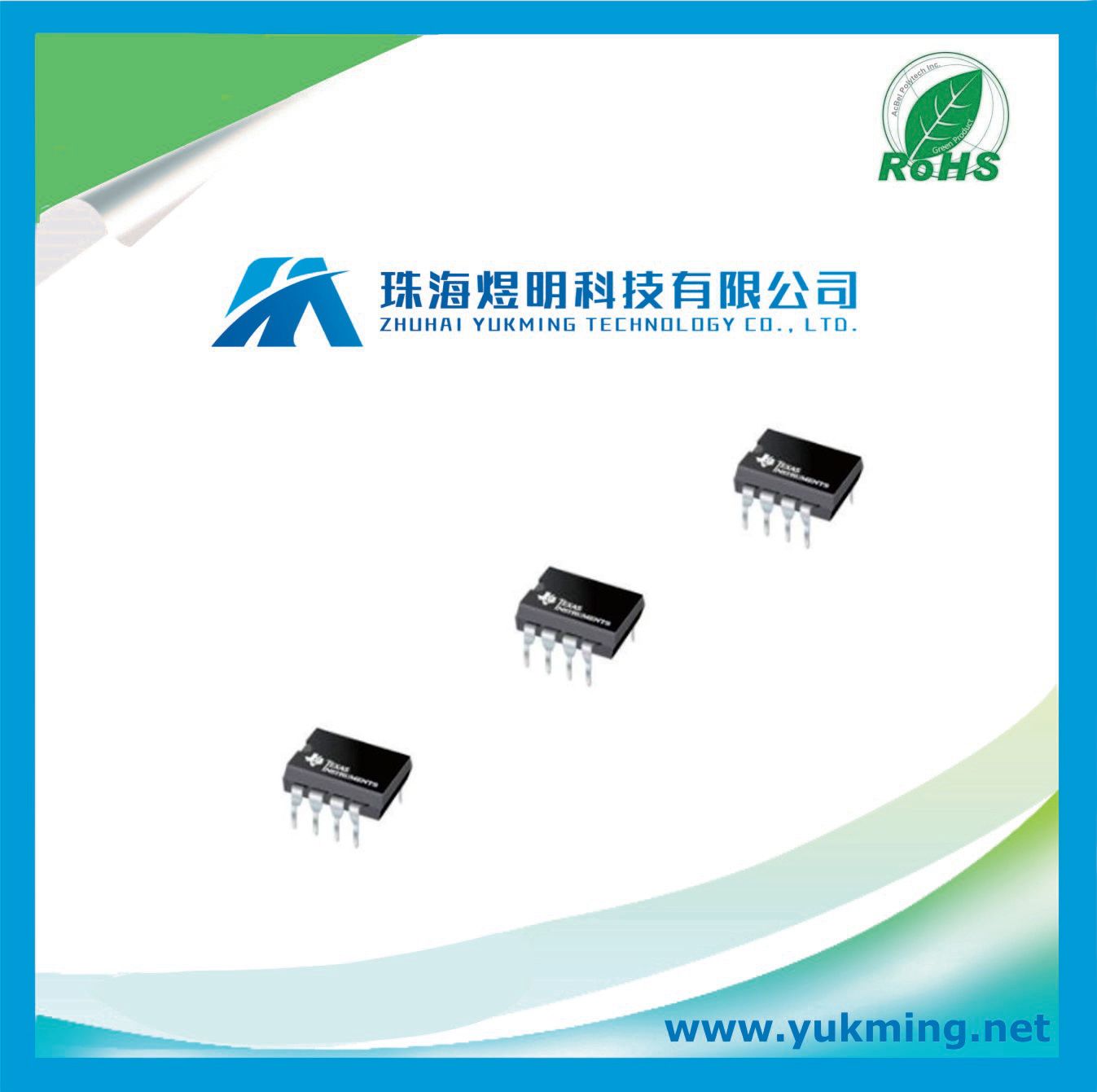

Integrated Circuit of Current-Mode PWM Controller IC Tl3844p

Name: Integrated Circuit of Current-Mode PWM Controller IC Tl3844p
Brand: all-electronics-online.com
SKU: 796696295
Availability: InStock
Rating: 4.4 (38 reviews)

Price:	US $ 0.24/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TL3844P

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Features
• Optimized for Off-Line and dc-to-dc
Converters
• Low Start-Up Current (<1 mA)
• Automatic Feed-Forward Compensation
• Pulse-by-Pulse Current Limiting
• Enhanced Load-Response Characteristics
• Undervoltage Lockout With Hysteresis
• Double-Pulse Suppression
• High-Current Totem-Pole Output
• Internally Trimmed Bandgap Reference
• 500-kHz Operation
• Error Amplifier With Low Output
Resistance
• Designed to Be Interchangeable With
UC2842 and UC3842 Series

Category	Integrated Circuits (ICs)
Family	PMIC - AC DC Converters, Offline Switchers
Manufacturer	Texas Instruments
Series	-
Packaging	Tube
Part Status	Active
Output Isolation	-
Internal Switch(s)	No
Voltage - Breakdown	-
Topology	Boost, Flyback, Forward
Voltage - Start Up	16V
Voltage - Supply (Vcc/Vdd)	10 V ~ 30 V
Duty Cycle	97%
Frequency - Switching	Up to 500kHz
Power (Watts)	-
Fault Protection	-
Control Features	Frequency Control
Operating Temperature	0°C ~ 70°C (TA)

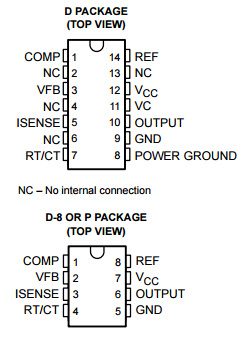

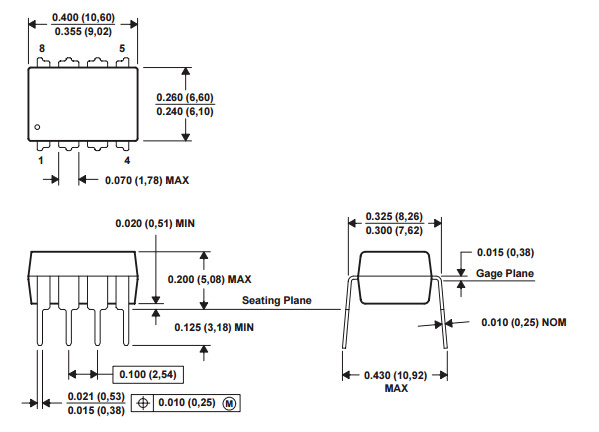

Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-PDIP
Mounting Type	Through Hole
