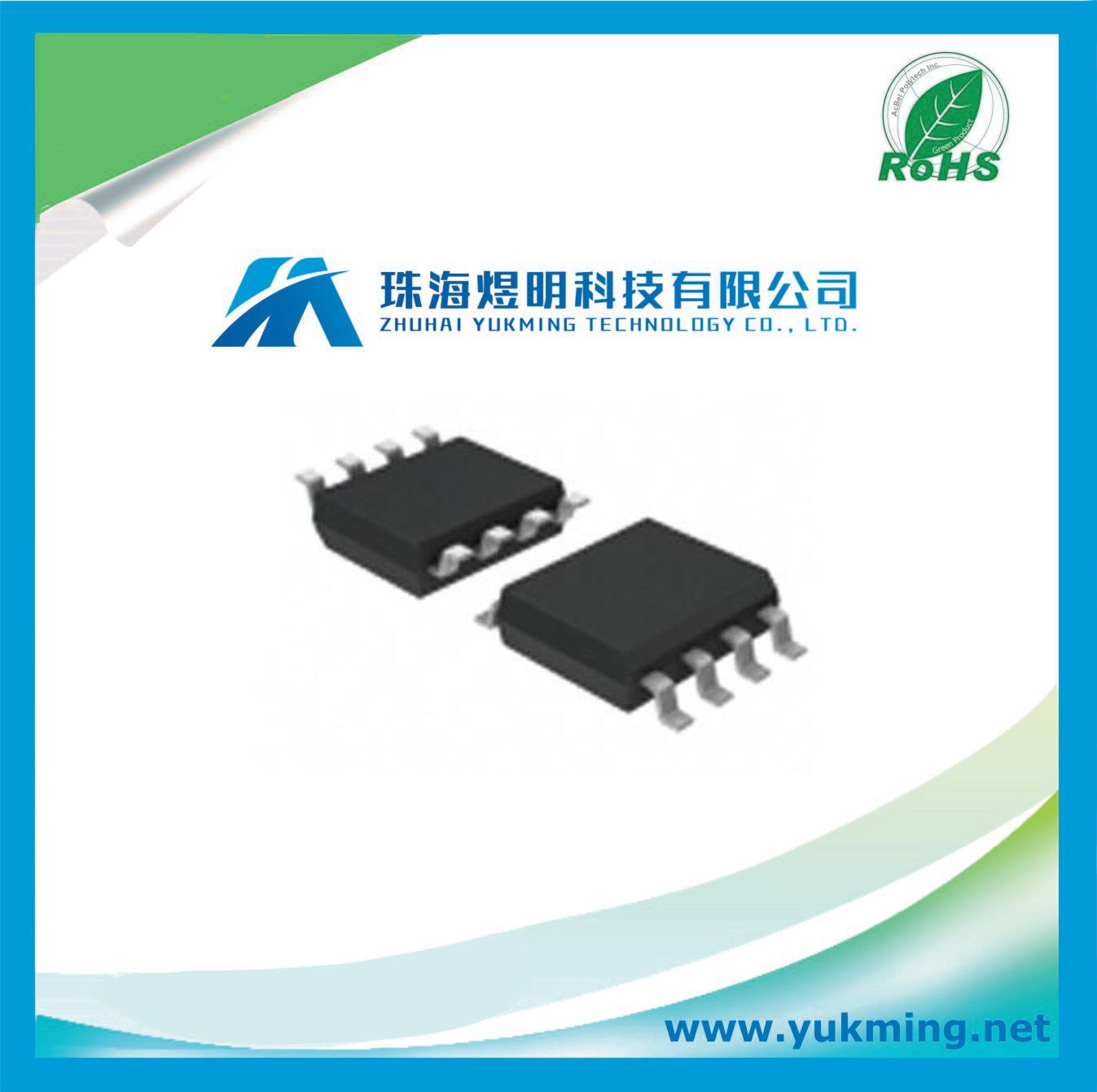

Integrated Circuit of Data Flash IC At45dB161d-Su

Name: Integrated Circuit of Data Flash IC At45dB161d-Su
Brand: all-electronics-online.com
SKU: 796998635
Availability: InStock
Rating: 4.5 (104 reviews)

Price:	US $ 2.45/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AT45DB161D-SU

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Features
• Single 2.5V - 3.6V or 2.7V - 3.6V Supply
• RapidS™ Serial Interface: 66 MHz Maximum Clock Frequency
- SPI Compatible Modes 0 and 3
• User Configurable Page Size
- 512 Bytes per Page
- 528 Bytes per Page
- Page Size Can Be Factory Pre-configured for 512 Bytes
• Page Program Operation
- Intelligent Programming Operation
- 4,096 Pages (512/528 Bytes/Page) Main Memory
• Flexible Erase Options
- Page Erase (512 Bytes)
- Block Erase (4 Kbytes)
- Sector Erase (128 Kbytes)
- Chip Erase (16 Mbits)
• Two SRAM Data Buffers (512/528 Bytes)
- Allows Receiving of Data while Reprogramming the Flash Array
• Continuous Read Capability through Entire Array
- Ideal for Code Shadowing Applications
• Low-power Dissipation
- 7 mA Active Read Current Typical
- 25 µA Standby Current Typical
- 9 µA Deep Power Down Typical
• Hardware and Software Data Protection Features
- Individual Sector
• Sector Lockdown for Secure Code and Data Storage
- Individual Sector
• Security: 128-byte Security Register
- 64-byte User Programmable Space
- Unique 64-byte Device Identifier
• JEDEC Standard Manufacturer and Device ID Read
• 100,000 Program/Erase Cycles Per Page Minimum
• Data Retention - 20 Years
• Industrial Temperature Range
• Green (Pb/Halide-free/RoHS Compliant) Packaging Options

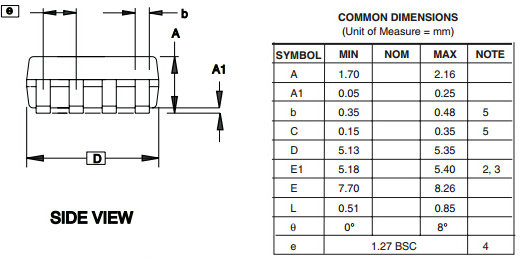

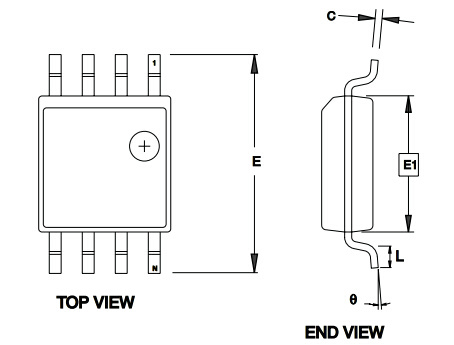

Notes: 1. This drawing is for general information only; refer to EIAJ Drawing EDR-7320 for additional information. 2. Mismatch of the upper and lower dies and resin burrs are not included. 3. It is recommended that upper and lower cavities be equal. If they are different, the larger dimension shall be regarded. 4. Determines the true geometric position. 5. Values b,C apply to plated terminal. The standard thickness of the plating layer shall measure between 0.007 to .021 mm.
