Integrated Circuit of Flash Memory Bus Interface IC M25p16-Vmw6

Name: Integrated Circuit of Flash Memory Bus Interface IC M25p16-Vmw6
Brand: all-electronics-online.com
SKU: 796980115
Availability: InStock
Rating: 4.4 (39 reviews)

Price:	US $ 0.77/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	M25P16-VMW6

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

DESCRIPTION
SPI bus compatible serial interface
16Mb Flash memory
75 MHz clock frequency (maximum)
2.7V to 3.6V single supply voltage
Page program (up to 256 bytes) in 0.64ms (TYP)
Erase capability
   Sector erase: 512Kb in 0.6 s (TYP)
   Bulk erase: 16Mb in 13 s (TYP)
Write protection
   Hardware write protection: protected area size defined by non-volatile bits BP0, BP1, BP2
Deep power down: 1μA (TYP)
Electronic signature
   JEDEC standard 2-byte signature (2015h)
   Unique ID code (UID) and 16 bytes of read-only data, available upon customer request
   RES command, one-byte signature (14h) for backward compatibility
More than 100,000 write cycles per sector
More than 20 years data retention
Automotive grade parts available
Packages (RoHS compliant)

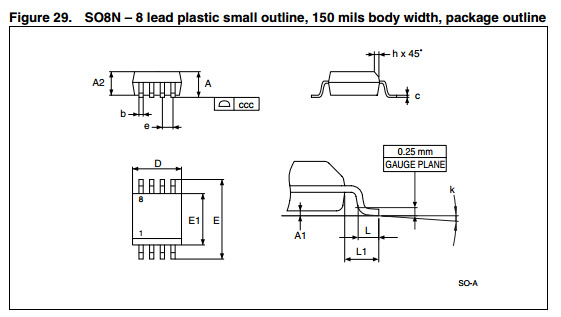

   SO8N (MN) 150 mils
   SO8W (MW) 208 mils
   SO16 (MF) 300 mils
   VFDFPN8 (MP) MLP8 6mm x 5mm
   VFDFPN8 (ME) MLP8 8mm x 6mm
   UFDFPN8 (MC) MLP8 4mm x 3mm

Features
16 Mbit of Flash memory
Page Program (up to 256 bytes) in 0.64 ms
(typical)
Sector Erase (512 Kbit) in 0.6 s (typical)
Bulk Erase (16 Mbit) in 13 s (typical)
2.7 V to 3.6 V single supply voltage
SPI bus compatible serial interface
75 MHz Clock rate (maximum)
Deep Power-down mode 1 µA (typical)
Electronic signatures
- JEDEC standard two-byte signature
(2015h)
- Unique ID code (UID) with 16 bytes readonly,
available upon customer request
- RES instruction, one-byte, signature (14h),
for backward compatibility
More than 100,000 Erase/Program cycles per
sector
Hardware Write Protection: protected area size
defined by three non-volatile bits (BP0, BP1
and BP2)
More than 20 year data retention
Packages
- ECOPACK® (RoHS compliant)
