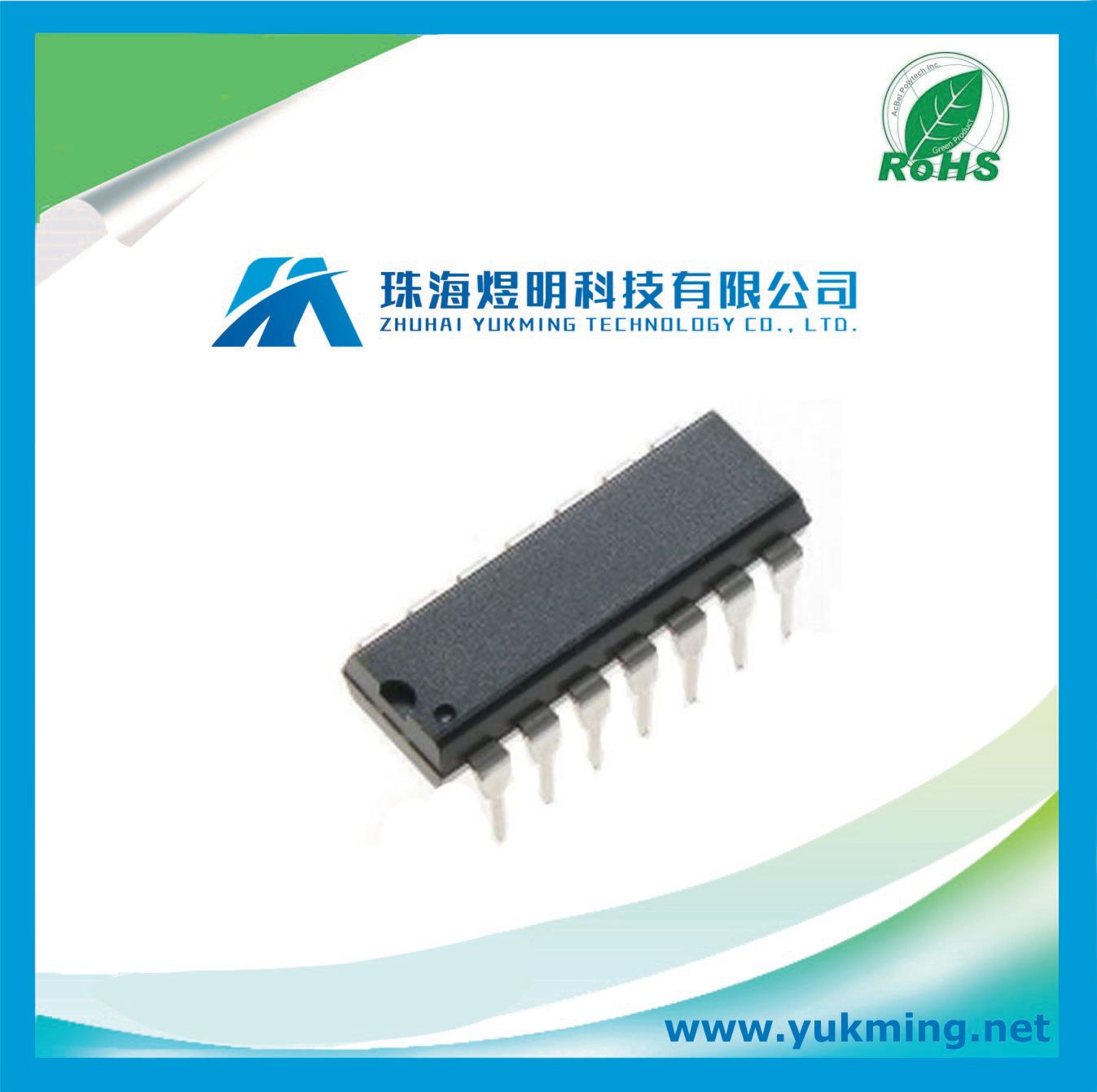

Integrated Circuit of Hex Inverter IC M74hc04b1r

Name: Integrated Circuit of Hex Inverter IC M74hc04b1r
Brand: all-electronics-online.com
SKU: 796697155
Availability: InStock
Rating: 4.4 (119 reviews)

Price:	US $ 0.26/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	M74HC04B1R
Family:	M74hc04
Maximum Low Level Output Current:	5.2mA
Minimum Operating Supply Voltage:	2V
Fabrication Technology:	CMOS
Typical Operating Supply Voltage:	2.5,3.3,5 V
Operation Temperature Range:	-55 to 125

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

DESCRIPTION
The M74HC04 is an high speed CMOS HEX
INVERTER fabricated with silicon gate C2MOS
technology.
The internal circuit is composed of 3 stages
including buffer output, which enables high noise
immunity and stable output.
All inputs are equipped with protection circuits
against static discharge and transient excess
Voltage.

Manufacturer: ST Microelectronics
Model No. M74HC04B1R
RoHS: Yes
Maximum Low Level Output Current: 5.2 mA
Logic Function: Inverter
Minimum Operating Supply Voltage: 2 V
Output Type: N/A
Family: M74HC04

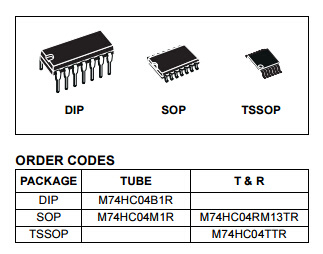

Supplier_Package: PDIP
Packaging: Tube
Logic Family: HC
Fabrication Technology: CMOS
Pin_Count: 14
Mounting: Through Hole
Maximum High Level Output Current: -5.2 mA
Number of Elements per Chip: 6
Maximum Operating Supply Voltage: 6 V
Typical Operating Supply Voltage: 2.5,3.3,5 V
Operating Temperature: -55 to 125 °C

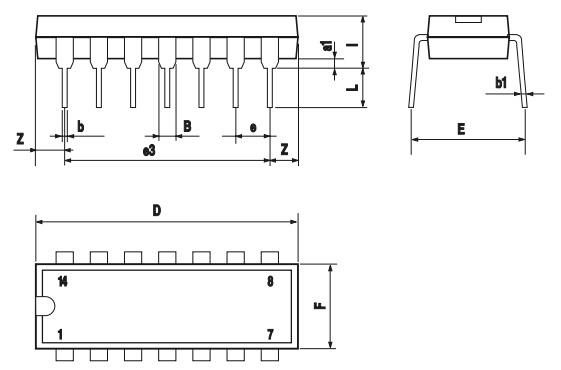

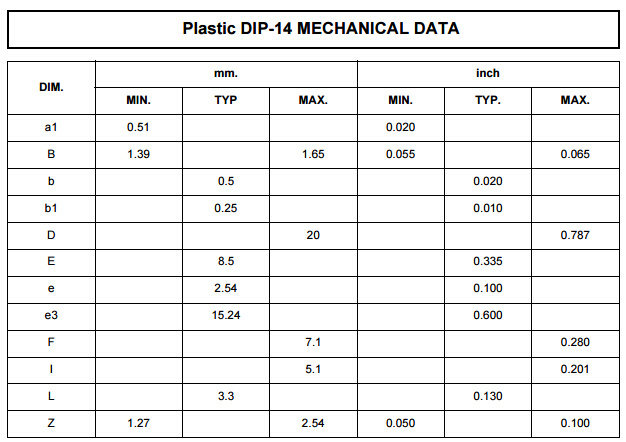

Dimension: 20(Max) x 7.1(Max) x 5.1(Max) - 0.51(Min)mm

Features
• HIGH SPEED:
tPD = 8ns (TYP.) at VCC = 6V
• LOW POWER DISSIPATION:
ICC = 1µA(MAX.) at TA=25°C
• HIGH NOISE IMMUNITY:
VNIH = VNIL = 28 % VCC (MIN.)
• SYMMETRICAL OUTPUT IMPEDANCE:
|IOH| = IOL = 4mA (MIN) at VCC = 4.5V
• BALANCED PROPAGATION DELAYS:
tPLH ≅ tPHL
• WIDE OPERATING VOLTAGE RANGE:
VCC (OPR) = 2V to 6V
• PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 04
