Integrated Circuit of Linear Voltage Regulator IC Mcp1701at-3302I/MB

Name: Integrated Circuit of Linear Voltage Regulator IC Mcp1701at-3302I/MB
Brand: all-electronics-online.com
SKU: 796606575
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	US $ 0.1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MCP1701AT-3302I/MB
Max Input Voltage:	10V
Output Voltage:	3.3V
Operation Temperature Range:	-40 to 85
Max Power Dissipation:	500 MW

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Features
• 2.0 µA Typical Quiescent Current
• Input Operating Voltage Range up to 10.0V
• Low-Dropout Voltage (LDO):
- 120 mV (typical) @ 100 mA
- 380 mV (typical) @ 200 mA
• High Output Current: 250 mA (VOUT = 5.0V)
• High-Accuracy Output Voltage: ±2% (max)
• Low Temperature Drift: ±100 ppm/°C (typical)
• Excellent Line Regulation: 0.2%/V (typical)
• Package Options: 3-Pin SOT-23A, 3-Pin SOT-89,
and 3-Pin TO-92
• Short Circuit Protection
• Standard Output Voltage Options:
- 1.8V, 2.5V, 3.0V, 3.3V, 5.0V

Applications
• Battery-Powered Devices
• Battery-Powered Alarm Circuits
• Smoke Detectors
• CO2 Detectors
• Smart Battery Packs
• PDAs
• Low-Quiescent Current Voltage Reference
• Cameras and Portable Video Equipment
• Pagers and Cellular Phones
• Solar-Powered Instruments
• Consumer Products
• Microcontroller Power

Description
The MCP1701A is a family of CMOS low-dropout,
positive voltage regulators that can deliver up to
250 mA of current while consuming only 2.0 µA of
quiescent current (typ.). The input operating range is
specified up to 10V, making it ideal for lithium-ion (one
or two cells), 9V alkaline and other two and three
primary cell battery-powered applications.
The MCP1701A is capable of delivering 250 mA with
an input-to-output voltage differential (dropout voltage)
of 650 mV. The low-dropout voltage extends the battery
operating lifetime. It also permits high currents in small
packages when operated with minimum VIN - VOUT
differentials. The MCP1701A offers improved startup
and transient response.
The MCP1701A has a tight tolerance output voltage
regulation of ±0.5% (typ.) and very good line regulation
at ±0.2%. The LDO output is stable when using only
1 µF of output capacitance of either tantalum or
aluminum-electrolytic style capacitors. The MCP1701A
LDO also incorporates short circuit protection to ensure
maximum reliability.

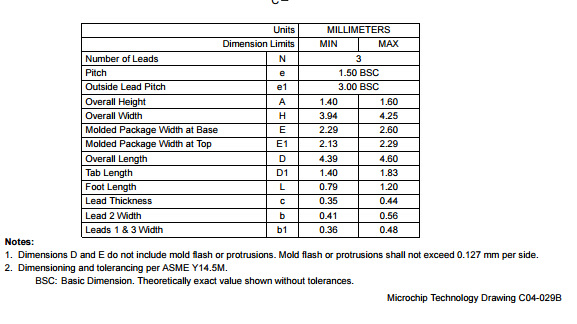

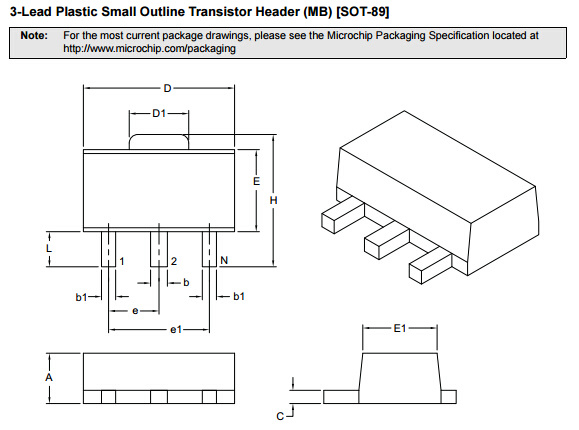

Package options include the 3-pin SOT-23A, 3-pin
SOT-89 and 3-Pin TO-92.
