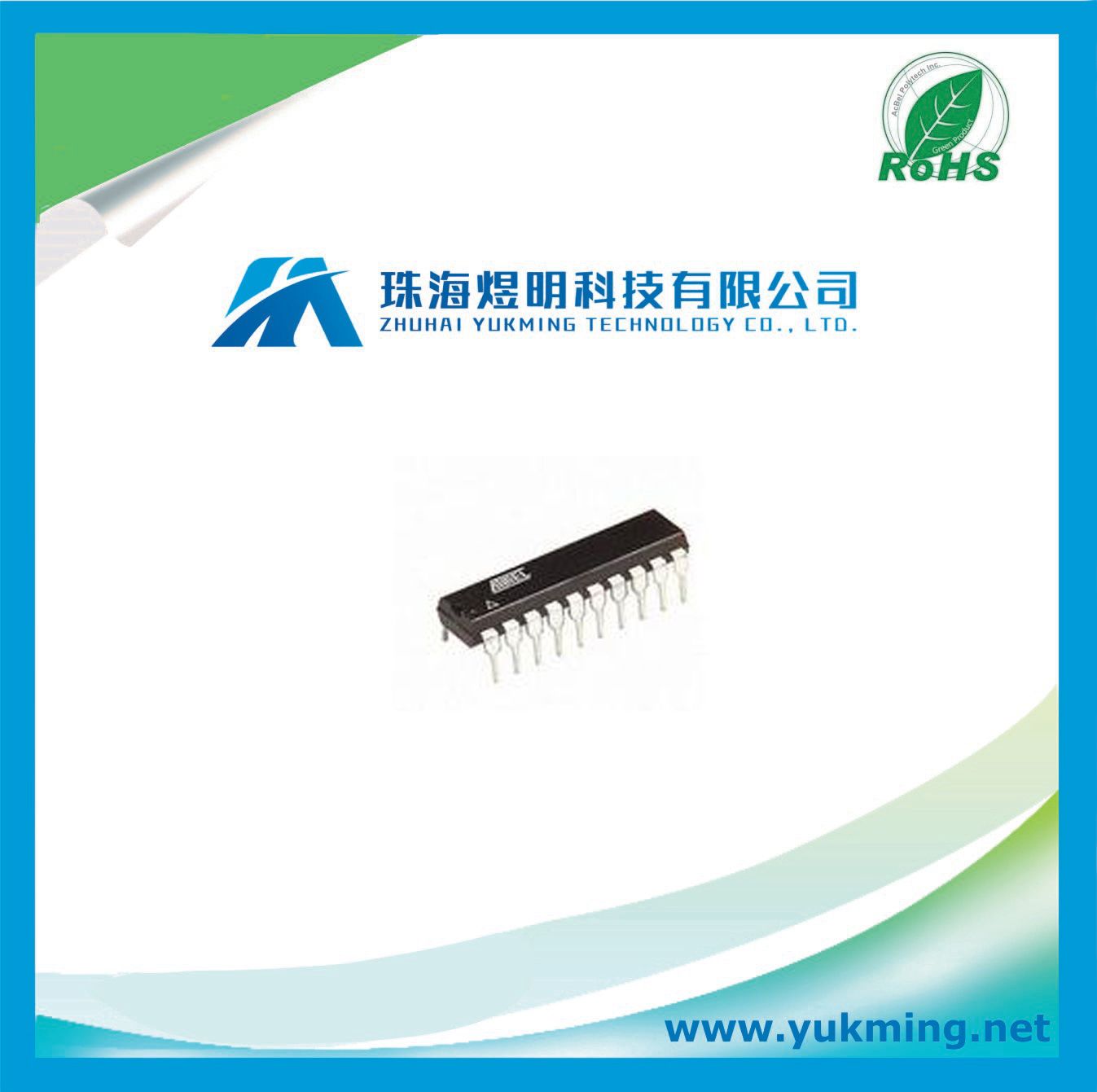

Integrated Circuit of MCU 8-Bit Microcontroller IC

Prod Model:	AT89C2051-24PU
Family Name:	At89
Data Bus Width (Bit):	8
Maximum Clock Rate (MHz):	24
Device Core:	8051
Program Memory Type:	Flash
Program Memory Size:	2kb
RAM Size:	128b
Number Of Programmable I/OS:	15
Core Architecture 8051:	8051
Number Of Timers:	2

Product Description



Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Atmel

PRODUCT CATEGORY
Microcontroller

DESCRIPTION
MCU 8-bit AT89 8051 CISC 2KB Flash 5V 20-Pin PDIP

Used in any modern day system or circuit design this AT89C2051-24PU microcontroller from Atmel, will make any design more versatile. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 24 MHz. This is a 8 bit processor. This device is based on the 8051 core architecture. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4 V, while its maximum is 6 V. Its flash program memory is 2KB

Specifications
EU RoHS Compliant
Family Name AT89
Data Bus Width (bit) 8
Instruction Set Architecture CISC
Maximum Clock Rate (MHz) 24
Device Core 8051
Program Memory Type Flash
Program Memory Size 2KB
RAM Size 128B
Number of Programmable I/Os 15
Core Architecture 8051
Programmability Yes
Number of Timers 2
Interface Type UART
CAN 0
I2C 0
SPI 0
Ethernet 0
UART 1
USART 0
USB 0
I2S 0
Maximum Operating Supply Voltage (V) 6
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Minimum Operating Supply Voltage (V) 4
Typical Operating Supply Voltage (V) 5
CECC Qualified No
Mounting Through Hole
Package Height (mm) 5.33(Max) - 0.38(Min)
Package Length (mm) 26.92(Max)
Package Width (mm) 7.11(Max)
PCB changed 20
Standard Package Name DIP
Supplier Package PDIP
Pin Count 20
Lead Shape Through Hole
