Integrated Circuit of Microwire Serial Access Eeprom IC M93c66wmn

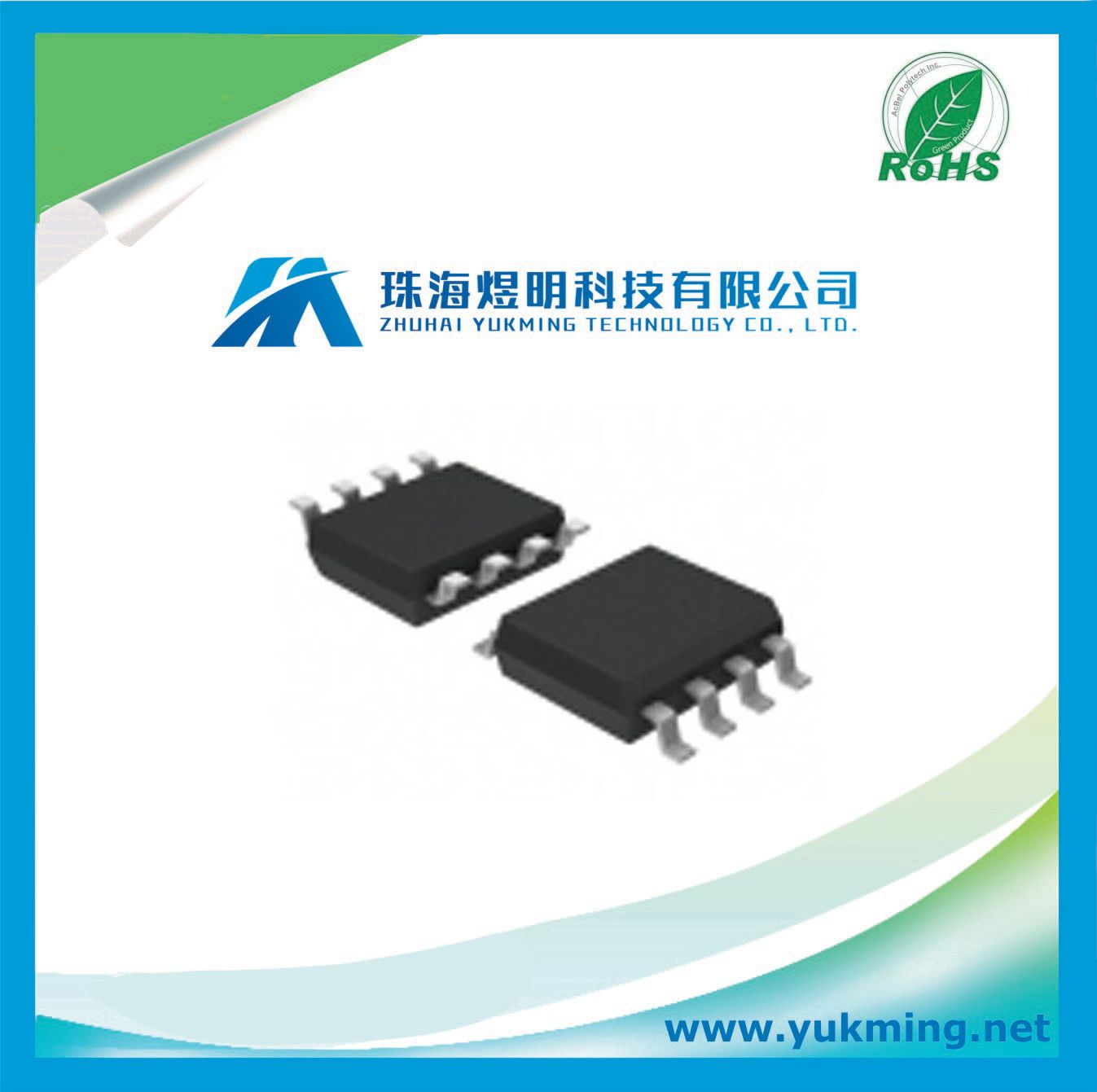

Name: Integrated Circuit of Microwire Serial Access Eeprom IC M93c66wmn
Brand: all-electronics-online.com
SKU: 796542365
Availability: InStock
Rating: 4.8 (125 reviews)

Price:	US $ 0.3186/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	M93C66WMN

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

SUMMARY DESCRIPTION
These electrically erasable programmable memory
(EEPROM) devices are accessed through a Serial
Data Input (D) and Serial Data Output (Q)
using the MICROWIRE bus protocol.

FEATURES SUMMARY
Industry Standard MICROWIRE Bus
Single Supply Voltage:
   - 4.5 to 5.5V for M93Cx6
   - 2.5 to 5.5V for M93Cx6-W
   - 1.8 to 5.5V for M93Cx6-R
Dual Organization: by Word (x16) or Byte (x8)
Programming Instructions that work on: Byte,
Word or Entire Memory
Self-timed Programming Cycle with AutoErase

Ready/Busy Signal During Programming
Speed:
   - 1MHz Clock Rate, 10ms Write Time
   (Current product, identified by process
   identification letter F or M)
   - 2MHz Clock Rate, 5ms Write Time (New
   Product, identified by process
   identification letter W or G or S)
Sequential Read Operation
Enhanced ESD/Latch-Up Behaviour
More than 1 Million Erase/Write Cycles
More than 40 Year Data Retention

INSTRUCTIONS
The instruction set of the M93Cx6 devices contains
seven instructions, as summarized in Table
5. to Table 7.. Each instruction consists of the following
parts, as shown in Figure 4.:
• Each instruction is preceded by a rising edge
on Chip Select Input (S) with Serial Clock (C)
being held Low.
• A start bit, which is the first '1' read on Serial
Data Input (D) during the rising edge of Serial
Clock (C).
• Two op-code bits, read on Serial Data Input
(D) during the rising edge of Serial Clock (C).
(Some instructions also use the first two bits of
the address to define the op-code).
• The address bits of the byte or word that is to
be accessed. For the M93C46, the address is
made up of 6 bits for the x16 organization or 7
bits for the x8 organization (see Table 5.). For
the M93C56 and M93C66, the address is
made up of 8 bits for the x16 organization or 9
bits for the x8 organization (see Table 6.). For
the M93C76 and M93C86, the address is
made up of 10 bits for the x16 organization or
11 bits for the x8 organization (see Table 7.).
The M93Cx6 devices are fabricated in CMOS
technology and are therefore able to run as slow
as 0 Hz (static input signals) or as fast as the maximum
ratings specified in Table 20. to Table 23..
