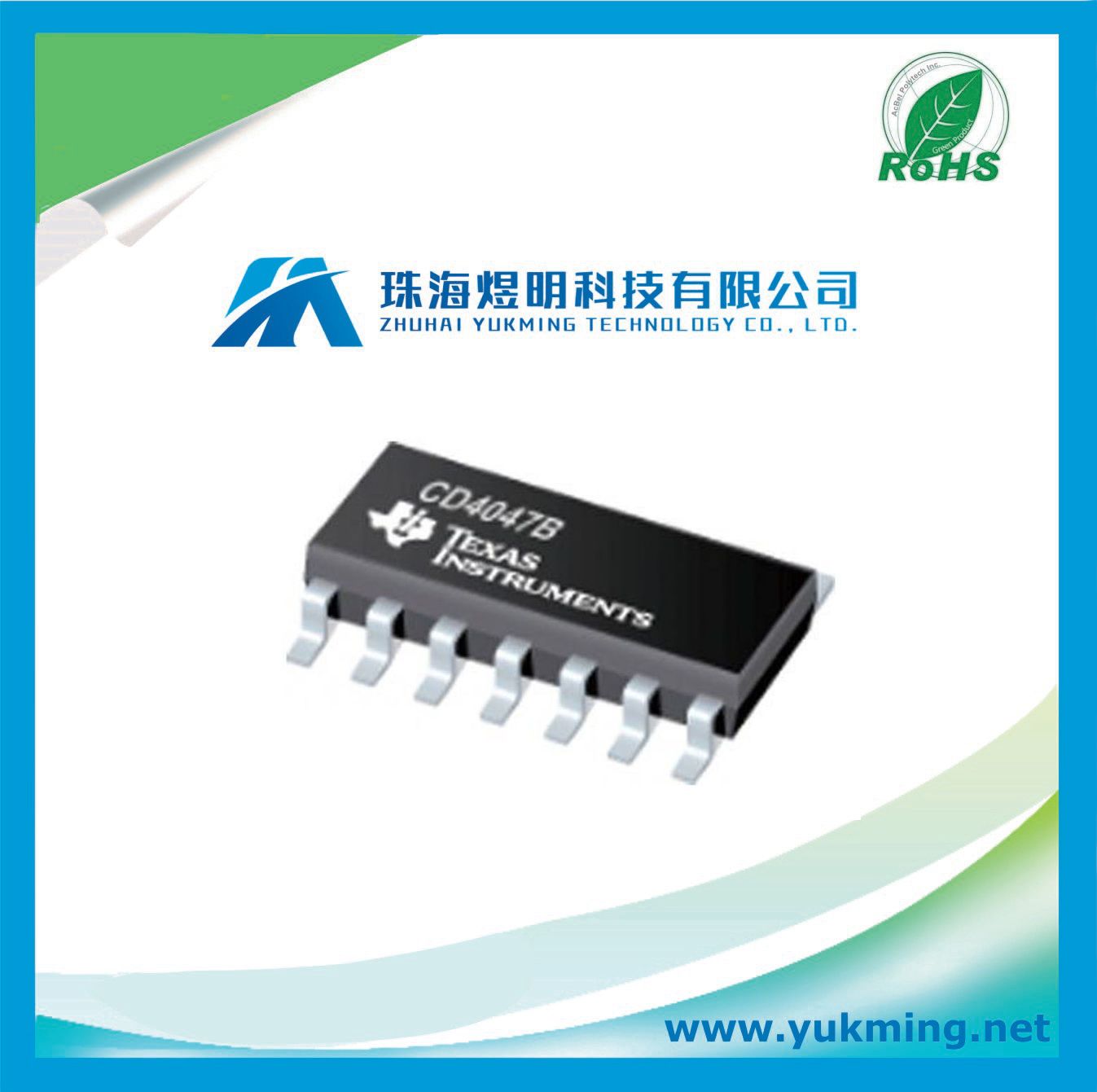

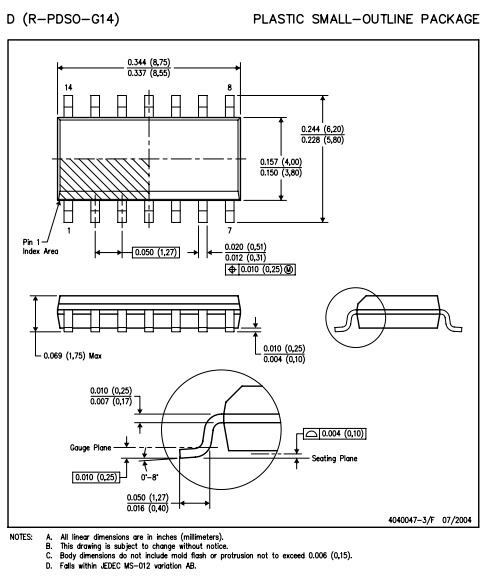

Integrated Circuit of Monostable Multivibrator IC CD4047bm96
| Price: |
US $ 0.153/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
CD4047BM96 |
| Logic Family: |
CD4000 |
| Fabrication Technology: |
CMOS |
| Number Of Elements Per Chip: |
1 |
| Maximum High Level Output Current (Ma): |
-4.2 (Min) |
| Maximum High Level Output Current (Ma: |
4.2 (Min) |
| Operation Temperature Range: |
-55 to 125 Degree C |
| Minimum Operating Supply Voltage (V): |
3 |
| Maximum Operating Supply Voltage (V): |
18 |
| Maximum Quiescent Current (Ma): |
0.02 |
| Absolute Propagation Delay Time (Ns): |
1000 |
Product Description
| Lead time | 2 to 3 days after receiving the payment. |
| Remark | 100% New and original ; 30 days warranty |
| Payment | Heng Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express |
MANUFACTURERTexas Instruments PRODUCT CATEGORYMonostable Multivibrator DESCRIPTIONMonostable/Astable Multivibrator Single 14-Pin SOIC T/R Are you looking for a component that can give a quick pulse to notify you in the event a condition is met? Texas Instruments' CD4047BM96 monostable multivibrator is the perfect solution for you. This monostable multivibrator has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V. SpecificationsEU RoHS Compliant Logic Family CD4000Logic Function Monostable/Astable MultivibratorFabrication Technology CMOSNumber of Elements per Chip 1Maximum High Level Output Current (mA) -4.2(Min)Maximum Low Level Output Current (mA) 4.2(Min)Minimum Operating Temperature (°C) -55Maximum Operating Temperature (°C) 125Minimum Operating Supply Voltage (V) 3Packaging Tape and ReelMaximum Operating Supply Voltage (V) 18Typical Operating Supply Voltage (V) 3.3|5|9|12|15Maximum Quiescent Current (mA) 0.02Absolute Propagation Delay Time (ns) 1000Mounting Surface MountPackage Height (mm) 1.5(Max)Package Length (mm) 8.75(Max)Package Width (mm) 4(Max)PCB changed 14Standard Package Name SOPSupplier Package SOICPin Count 14Lead Shape Gull-wingFeatures
Lower power consumption: special CMOS oscillator configuration
Monostable (one-shot) or astable (free-running) operation
True and complemented buffered outputs
Only one external R anc C required
Buffered inputs
100% tested for quiescent current at 20 V
Standardized, symmetrical output characteristics
5-V, 10-V, and 15-V parametric ratings
Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Monostable Multivibrator Features:
Positive-or negative-edge trigger
Output pulse width independent of trigger pulse duration
Retriggerable option for pulse width expansion
Internal power-on reset circuit
Long pulse widths possible using small RC components by means of external counter provision
Fast recovery time essentially independent of pulse width
Pulse-width accuracy maintained at duty cycles approaching 100%
Astable Multivibrator Features:
Free-running or gatable operating modes
50% duty cycle
Oscillator output available
Good astable frequency stability:
Frequency deviation:
= ±2% + 0.03%/°C @ 100 kHz
= ±0.5% +0.015%/°C @ 10 kHz (circuits "trimmed" to frequency VDD = 10 V ± 10%)
Applications:
Digital equipment where low-power dissipation and/or high noise immunity are primary design requirements:
Envelope detection
Frequency multiplication
Frequency division
Frequency discriminators
Timing circuits
Time-delay applications
