Integrated Circuit of Nand Gate Logic IC Hef4011bt

Name: Integrated Circuit of Nand Gate Logic IC Hef4011bt
Brand: all-electronics-online.com
SKU: 796545985
Availability: InStock
Rating: 4.6 (144 reviews)

Price:	US $ 0.1/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HEF4011BT
Logic Family:	Hef4000
Logic Function:	Nand
Fabrication Technology:	CMOS
Number Of Elements Per Chip:	4
Number Of Element Inputs:	2-in
Number Of Element Outputs:	1
Operation Temperature Range:	-40 to 125 Degree C
Minimum Operating Supply Voltage (V):	3
Maximum Operating Supply Voltage (V):	15
Maximum High Level Output Current (Ma):	-4.2

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

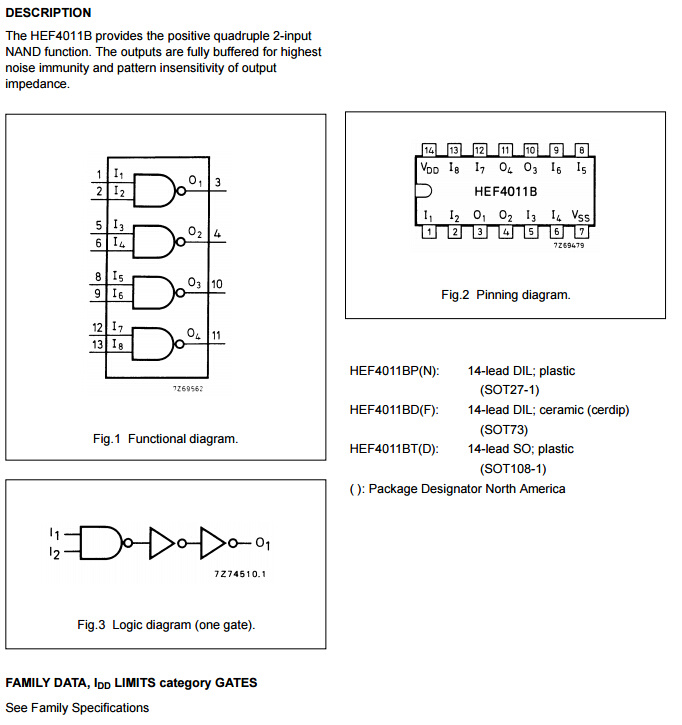

DESCRIPTION
The HEF4011B provides the positive quadruple 2-input
NAND function. The outputs are fully buffered for highest
noise immunity and pattern insensitivity of output
Impedance.

PRODUCT CATEGORY
Gates

DESCRIPTION
NAND Gate 4-Element 2-IN CMOS 14-Pin SO Bulk

Specifications
EU RoHS Compliant
Logic Family HEF4000
Logic Function NAND
Fabrication Technology CMOS
Number of Elements per Chip 4
Number of Element Inputs 2-IN
Number of Element Outputs 1
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Bulk
Minimum Operating Supply Voltage (V) 3
Maximum Operating Supply Voltage (V) 15
Typical Operating Supply Voltage (V) 3.3|5|9|12
Maximum High Level Output Current (mA) -4.2
Maximum Low Level Output Current (mA) 4.2(Min)
Maximum Quiescent Current (uA) 1
Mounting Surface Mount
Package Height (mm) 1.45(Max)
Package Length (mm) 8.75(Max)
Package Width (mm) 4(Max)
PCB changed 14
Standard Package Name SOP
Supplier Package SO
Pin Count 14
Lead Shape Gull-wing

Standard packing: 2,500
Category: Integrated circuit (IC)
Family: Logic - grid and inverter
Series: 4000B
Package: TR
Logic type: NAND
Circuit Number: 4
Input Number: 2
Voltage - Power Source: 3 V ~ 15 V
Current - quiescent (max): 1µA
Current - Output high/low: 3.4mA, 3.4mA
Logic level - low: 1.5 V ~ 4 V
Logic level - high: 3.5 V ~ 11 V
Operation temperature: -40°C ~ 125°C
PCB: SMT
Footpin: 14-SO
Package: 14-SOIC(0.154",3.90mm width)
