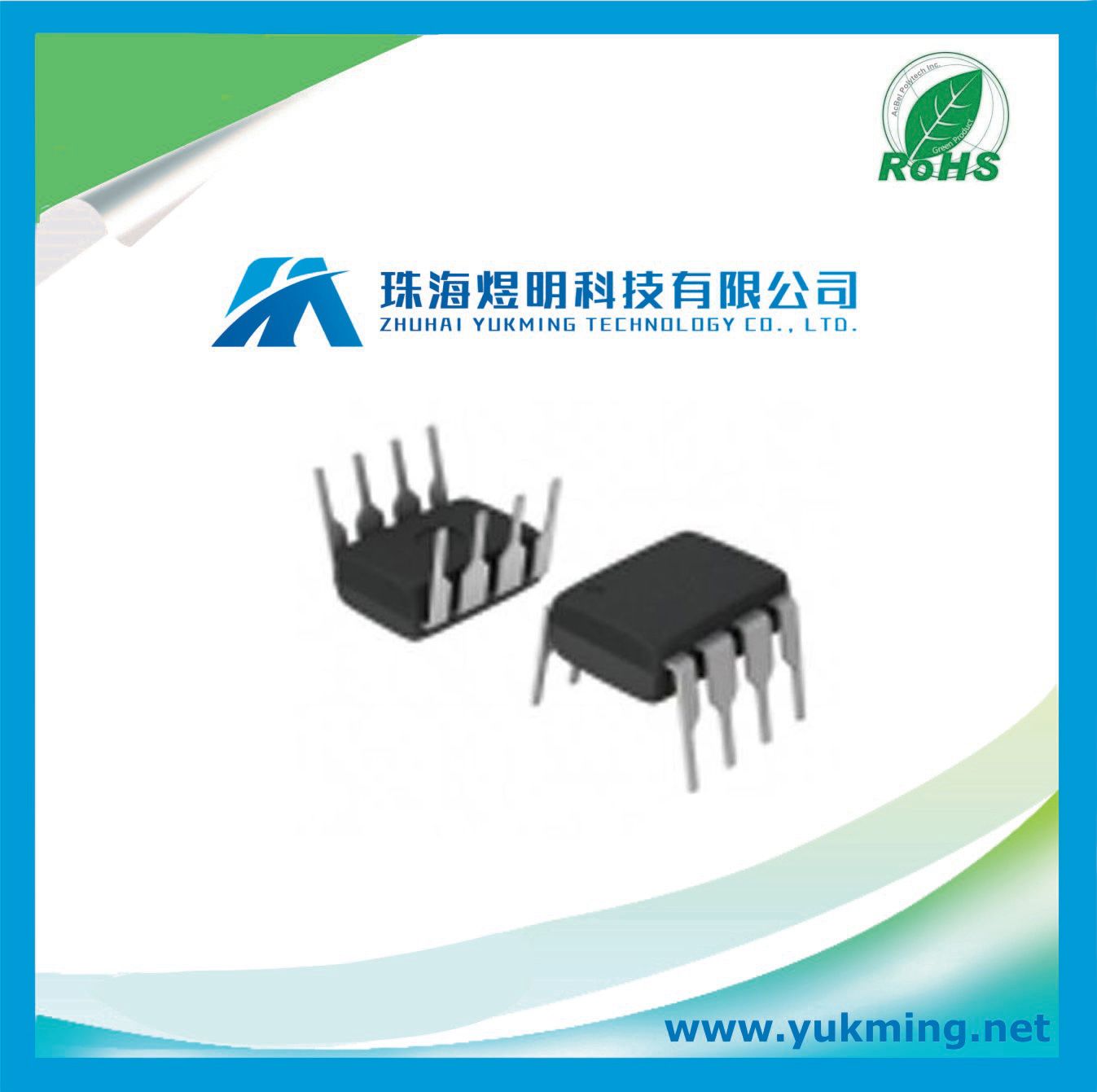

Integrated Circuit of Programmable Operational Amplifier IC Lm4250cn

Name: Integrated Circuit of Programmable Operational Amplifier IC Lm4250cn
Brand: all-electronics-online.com
SKU: 796693245
Availability: InStock
Rating: 5 (33 reviews)

Price:	US $ 0.81/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM4250CN
Power Supply Operation:	+/-1V to +/-18V
Typical Gain Bandwidth Product (MHz):	0.25
Operation Temperature Range:	0 to 70
Typical Slew Rate (V/Us):	0.2
Maximum Power Dissipation (MW):	500

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

General Description
The LM4250 and LM4250C are extremely versatile programmable
monolithic operational amplifiers. A single external
master bias current setting resistor programs the input bias
current, input offset current, quiescent power consumption,
slew rate, input noise, and the gain-bandwidth product. The
device is a truly general purpose operational amplifier.
The LM4250C is identical to the LM4250 except that the
LM4250C has its performance guaranteed over a 0˚C to
+70˚C temperature range instead of the −55˚C to +125˚C
temperature range of the LM4250.

Features
• ±1V to ±18V power supply operation
• 3 nA input offset current
• Standby power consumption as low as 500 nW
• No frequency compensation required
• Programmable electrical characteristics
• Offset voltage nulling capability
• Can be powered by two flashlight batteries
• Short circuit protection

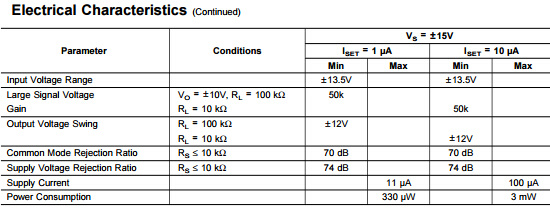

Specifications
EU RoHS Compliant
Manufacturer Type Micropower Amplifier
Type General Purpose Amplifier
Number of Channels per Chip 1
Technology Bipolar
Rail to Rail No
Typical Gain Bandwidth Product (MHz) 0.25
Maximum Input Offset Voltage (mV) 6@±15V
Maximum Input Offset Current (uA) 0.02@±15V
Maximum Input Bias Current (uA) 0.075@±15V
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Packaging Tube
Maximum Dual Supply Voltage (V) ±18
Typical Slew Rate (V/us) 0.2
Shut Down Support No
Maximum Supply Current (mA) 0.1@±15V
Maximum Power Dissipation (mW) 500
Minimum Dual Supply Voltage (V) ±1
Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
Minimum CMRR (dB) 70
Power Supply Type Dual
Temperature Grade Commercial
Mounting Through Hole

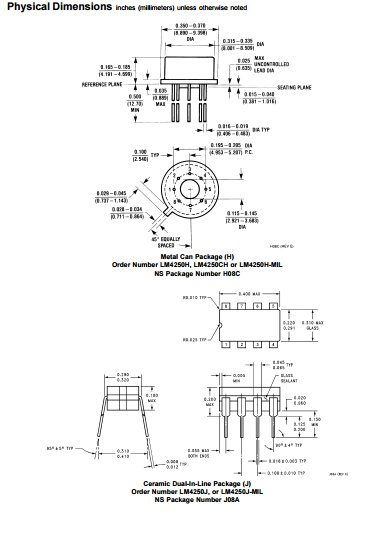

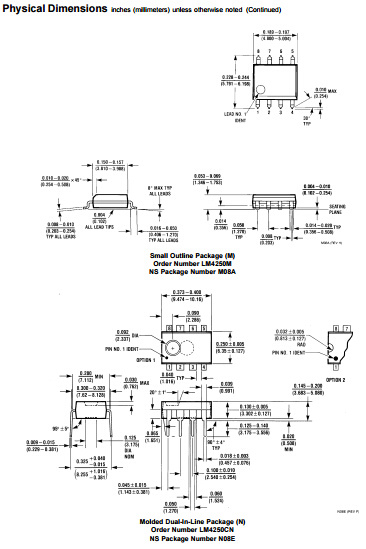

Package Height (mm) 5.08(Max) - 0.51(Min)
Package Length (mm) 10.16(Max)
Package Width (mm) 6.6(Max)
PCB changed 8
Standard Package Name DIP
Supplier Package PDIP
Pin Count 8
Lead Shape Through Hole
