Integrated Circuit of PWM Current-Mode Controller IC Ncp1207APG

Name: Integrated Circuit of PWM Current-Mode Controller IC Ncp1207APG
Brand: all-electronics-online.com
SKU: 796899325
Availability: InStock
Rating: 4.5 (145 reviews)

Price:	US $ 0.97/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NCP1207APG
Control Method:	Current Mode PWM Controller
Topology:	Flyback
Number Of PWM Outputs:	1
Output Current (Ma):	500(Max)
Maximum Operating Supply Voltage (V):	20

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
ON Semiconductor

PRODUCT CATEGORY
Current Mode PWM Controller

DESCRIPTION

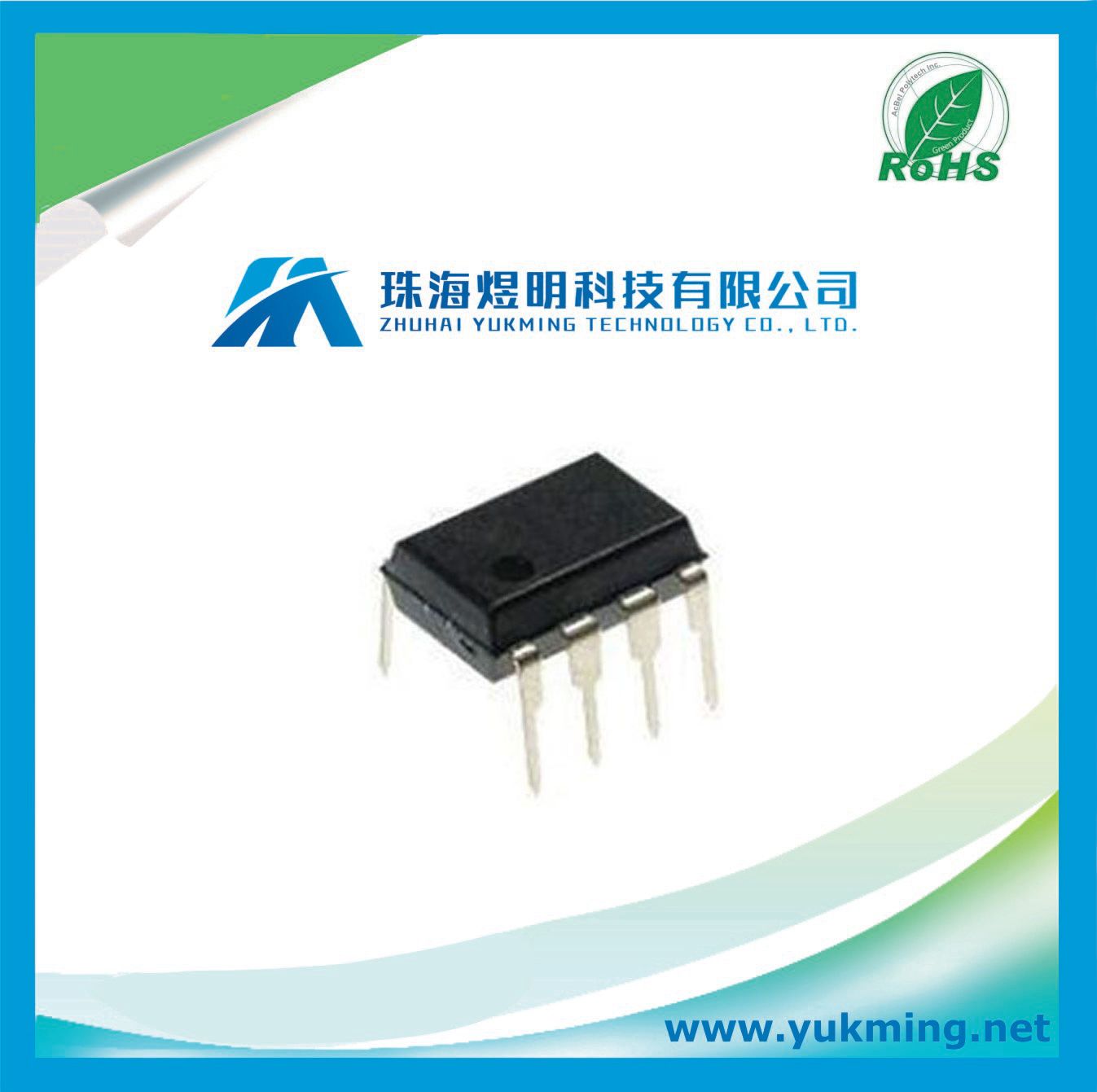

Current Mode PWM Controller 500mA 8-Pin PDIP Tube

Efficiently control the voltages across your project by using ON Semiconductor's NCP1207APG current controller. Its single PWM output produces a current of 500(Max) mA. This current mode controller supports flyback topology. This product comes in rail packaging to keep individual parts separated and protected. This device has a maximum of 20 V. This current mode controller has a maximum operating temperature of 150 °C.

Specifications
EU RoHS Compliant
Control Method Current Mode PWM Controller
Topology Flyback
Number of PWM Outputs 1
Output Current (mA) 500(Max)
Maximum Operating Supply Voltage (V) 20
Maximum Operating Temperature (°C) 150
Rise Time (ns) 40
Fall Time (ns) 20
Adjustable Output No
On/Off Pin No
Synchronous Pin No
Packaging Tube
Mounting Through Hole

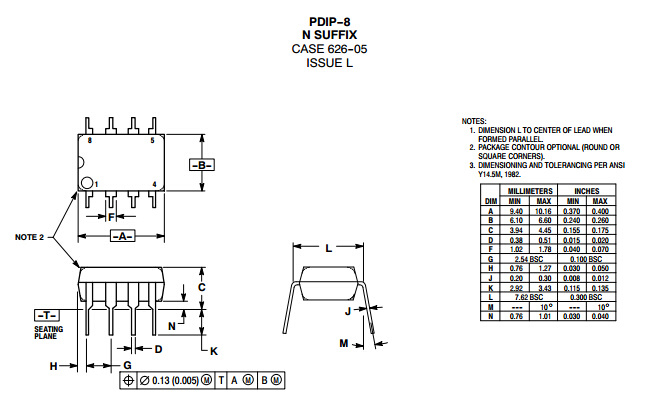

Package Height (mm) 5.33(Max) - 0.38(Min)
Package Length (mm) 9.27
Package Width (mm) 6.35
PCB changed 8
Standard Package Name DIP
Supplier Package PDIP
Pin Count 8
Lead Shape Through Hole

Features
•Free-Running Borderline/Critical Mode Quasi-Resonant Operation
•Current-Mode with Adjustable Skip-Cycle Capability
•No Auxiliary Winding VCC Operation
•Auto-Recovery Overcurrent Protection
•Latching Overvoltage Protection
•External Latch Triggering, e.g. Via Overtemperature Signal
•500 mA Peak Current Source/Sink Capability
•Undervoltage Lockout for VCC Below 10 V
•Internal 1.0 ms Soft-Start
•Internal 8.0 s Minimum TOFF for NCP1207A,
4.5 s Minimum TOFF for NCP1207B
•Adjustable Skip Level
•Internal Temperature Shutdown
•Direct Optocoupler Connection
•SPICE Models Available for TRANsient Analysis
•Pb-Free Packages are Available

Typical Applications
•AC/DC Adapters for Notebooks, etc.
•Offline Battery Chargers
•Consumer Electronics (DVD Players, Set-Top Boxes, TVs, etc.)
•Auxiliary Power Supplies (USB, Appliances, TVs, etc.)
