Integrated Circuit of Quad 2-Input Nand Gate IC

Name: Integrated Circuit of Quad 2-Input Nand Gate IC
Brand: all-electronics-online.com
SKU: 785920345
Availability: InStock
Rating: 4.9 (84 reviews)

Price:	US $ 0.0864/Piece
Trade Terms:	FOB
Min Order:	2500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	74HC03D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Line:	4
Output Line:	8
Supply Voltage - Max:	6V
Supply Voltage - Min:	2V
Operation Temperature Range:	- 40 to + 125
Max Power Dissipation:	500 MW
Output Current:	- 25 Ma
Output Voltage:	5 V

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Product: NAND
Logic family: 74HC
Grid nos: 4
Input line nos: 8
Output line nos: 4
Propagation delay time: 28 ns
Supply voltage - Max: 6 V
Supply voltage - Min: 2 V
Max operation temperature: + 125 °C
PCB: SMD/SMT
Package / box: SO-14
Packaging: Reel
Brand: NXP Semiconductors
Max power dissipation: 500 mW
Min operation temperature - 40 °C
Input / output line nos: 8 / 4
Operation temperature range: - 40 °C to + 125 °C
Output current: - 25 mA
Output voltage: 5 V
Power dissipation: 500 mW
Package quantity: 2500pcs

FEATURES
• Level shift capability
• Output capability: standard (open drain)
• ICC category: SSI

GENERAL DESCRIPTION

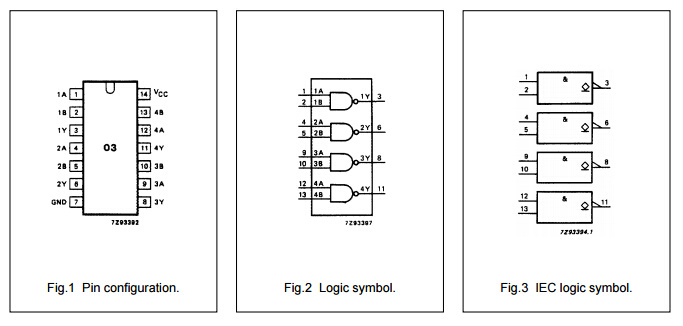

The 74HC/HCT03 are high-speed Si-gate CMOS devices
and are pin compatible with low power Schottky TTL
(LSTTL). They are specified in compliance with JEDEC
standard no. 7A.

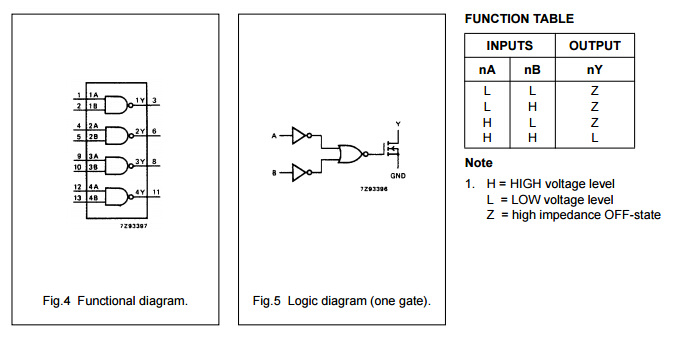

The 74HC/HCT03 provide the 2-input NAND function.
The 74HC/HCT03 have open-drain N-transistor outputs,
which are not clamped by a diode connected to VCC. In
the OFF-state, i.e. when one input is LOW, the output
may be pulled to any voltage between GND and VOmax.
This allows the device to be used as a LOW-to-HIGH or
HIGH-to-LOW level shifter. For digital operation and
OR-tied output applications, these devices must have a
pull-up resistor to establish a logic HIGH level.
