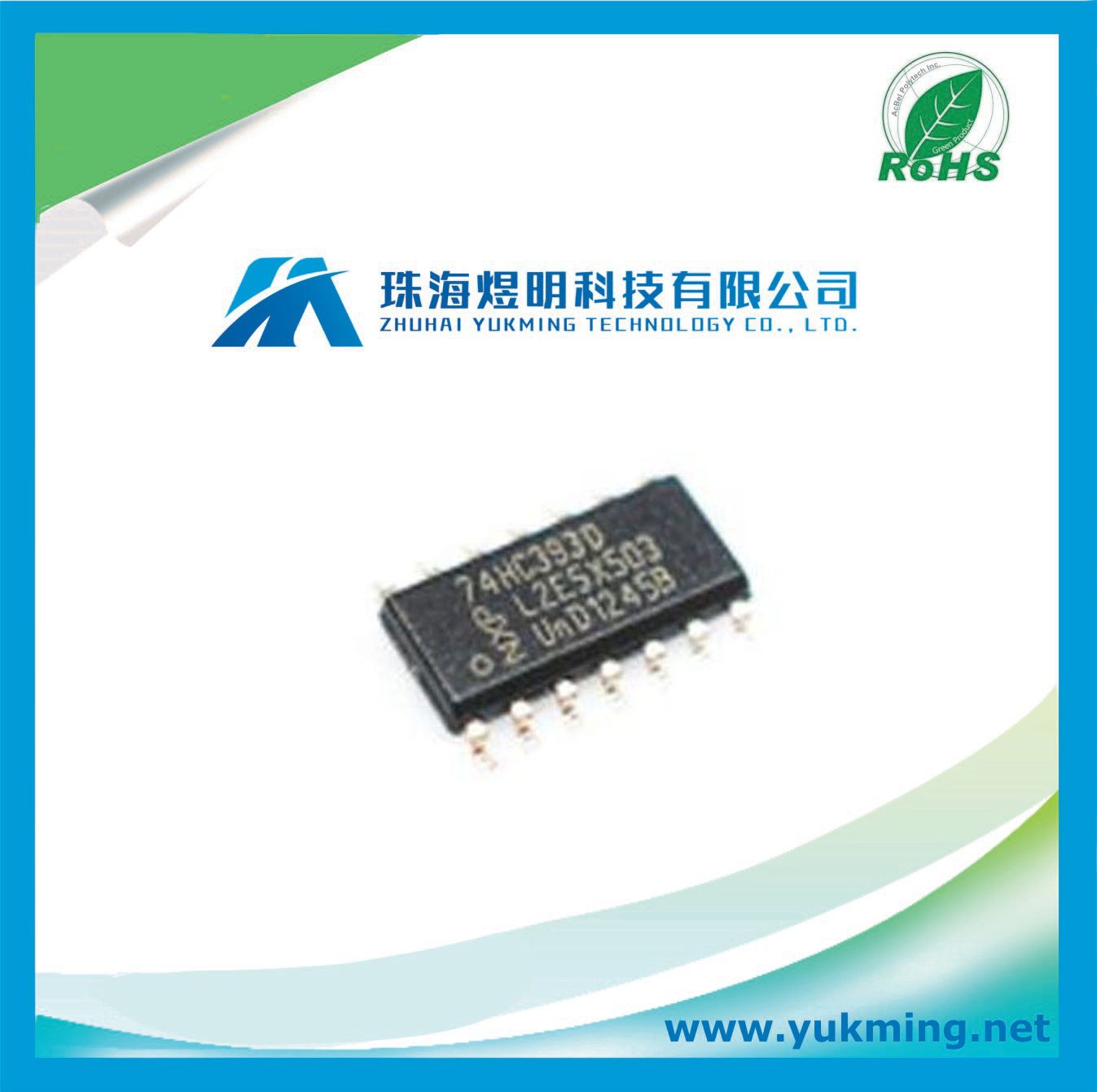

Integrated Circuit of Timer IC 74hc393D NXP

Name: Integrated Circuit of Timer IC 74hc393D NXP
Brand: all-electronics-online.com
SKU: 796791655
Availability: InStock
Rating: 5 (114 reviews)

Price:	US $ 0.2/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	74HC393D
Logic Family:	Hc
Logic Function:	Counter/Divider
Operation Mode:	up Counter
Number Of Elements Per Chip:	2
Number Of Element Inputs:	1
Number Of Element Outputs:	4
Fabrication Technology:	CMOS
Number Of Stages:	4

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
NXP Semiconductors

PRODUCT CATEGORY
Counter Shift Register

DESCRIPTION
Counter/Divider Dual 4-Bit Binary UP 14-Pin SO T/R

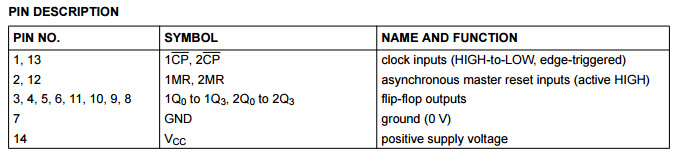

The 74HC393; 7474HCT393 is a dual 4-stage binary ripple counter. Each counter features a clock input (nCP), an overriding asynchronous master reset input (nMR) and 4 buffered parallel outputs (nQ0 to nQ3). The counter advances on the HIGH-to-LOW transition of nCP. A HIGH on nMR clears the counter stages and forces the outputs LOW, independent of the state of nCP. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Specifications
EU RoHS Compliant
Logic Family HC
Logic Function Counter/Divider
Type Binary
Operation Mode UP Counter
Number of Elements per Chip 2
Number of Element Inputs 1
Number of Element Outputs 4
Fabrication Technology CMOS
Number of Stages 4
Direction Type Uni-Directional
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Absolute Propagation Delay Time (ns) 210
Minimum Operating Supply Voltage (V) 2
Typical Operating Supply Voltage (V) 5
Maximum Operating Supply Voltage (V) 6
Mounting Surface Mount
Package Height (mm) 1.45(Max)
Package Length (mm) 8.75(Max)
Package Width (mm) 4(Max)
PCB changed 14
Standard Package Name SOP
Supplier Package SO

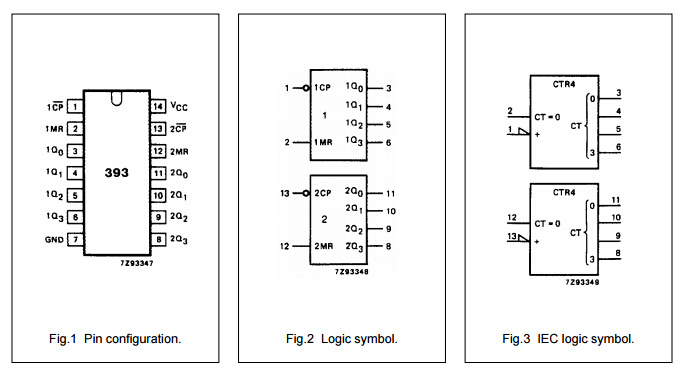

Pin Count 14
Lead Shape Gull-wing

FEATURES
• Two 4-bit binary counters with individual clocks
• Divide-by any binary module up to 28 in one package
• Two master resets to clear each 4-bit counter
individually
• Output capability: standard
• ICC category: MSI
