Integrated Circuit of Triple-Channel Digital Isolators IC Adum1300arwz

Name: Integrated Circuit of Triple-Channel Digital Isolators IC Adum1300arwz
Brand: all-electronics-online.com
SKU: 796958005
Availability: InStock
Rating: 4.9 (51 reviews)

Price:	US $ 1.79/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADUM1300ARWZ
Output Type:	CMOS
Number Of Channels Per Chip:	3
Maximum Data Rate:	1Mbps
Maximum Operating Supply Voltage (V):	5.5
Maximum Propagation Delay Skew (Ns):	50
Minimum Isolation Voltage (Vrms):	2500
Operation Temperature Range:	-40 to 105 Degree C

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Analog Devices

PRODUCT CATEGORY
Digital Isolator

DESCRIPTION
Digital Isolator CMOS 3-CH 1Mbps Automotive 16-Pin SOIC W Tube

Specifications
EU RoHS Compliant
Output Type CMOS
Number of Channels per Chip 3
Maximum Data Rate 1Mbps
Maximum Operating Supply Voltage (V) 5.5
Maximum Propagation Delay Skew (ns) 50
Minimum Isolation Voltage (Vrms) 2500
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 105
Maximum Fall Time (ns) 3(Typ)
Maximum Rise Time (ns) 3(Typ)
Maximum Propagation Delay Time(tPHL) (ns) 100
Maximum Propagation Delay Time(tPLH) (ns) 100
Maximum Pulse Width Distortion (ns) 40
Maximum Quiescent Supply Current (mA) 0.53/0.24
Maximum Working Insulation Voltage 560Vp
Minimum Common Mode Rejection (kV/us) 25
Minimum Pulse Width (ns) 1000
Packaging Tube
Temperature Grade Industrial
Mounting Surface Mount

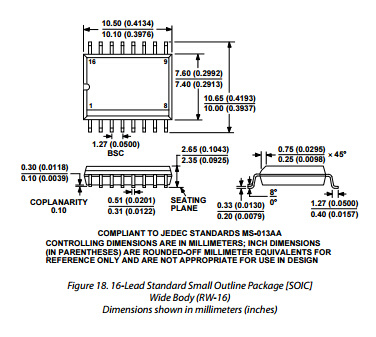

Package Height (mm) 2.35(Max)
Package Length (mm) 10.5(Max)
Package Width (mm) 7.6(Max)
PCB changed 16
Standard Package Name SOP
Supplier Package SOIC W
Pin Count 16
Lead Shape Gull-wing

FEATURES
Qualified for automotive applications
Low power operation
5 V operation
1.2 mA per channel maximum at 0 Mbps to 2 Mbps
3.5 mA per channel maximum at 10 Mbps
32 mA per channel maximum at 90 Mbps
3 V operation
0.8 mA per channel maximum at 0 Mbps to 2 Mbps
2.2 mA per channel maximum at 10 Mbps
20 mA per channel maximum at 90 Mbps
Bidirectional communication
3 V/5 V level translation
High temperature operation: 125°C
High data rate: dc to 90 Mbps (NRZ)
Precise timing characteristics
2 ns maximum pulse width distortion
2 ns maximum channel-to-channel matching
High common-mode transient immunity: >25 kV/μs
Output enable function
16-lead SOIC wide body package
RoHS-compliant models available
Safety and regulatory approvals
UL recognition: 2500 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice 5A
VDE Certificate of Conformity
DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
VIORM = 560 V peak
TÜV approval: IEC/EN/UL/CSA 61010-1

APPLICATIONS
General-purpose multichannel isolation
SPI interface/data converter isolation
RS-232/RS-422/RS-485 transceivers
Industrial field bus isolation
Automotive systems
