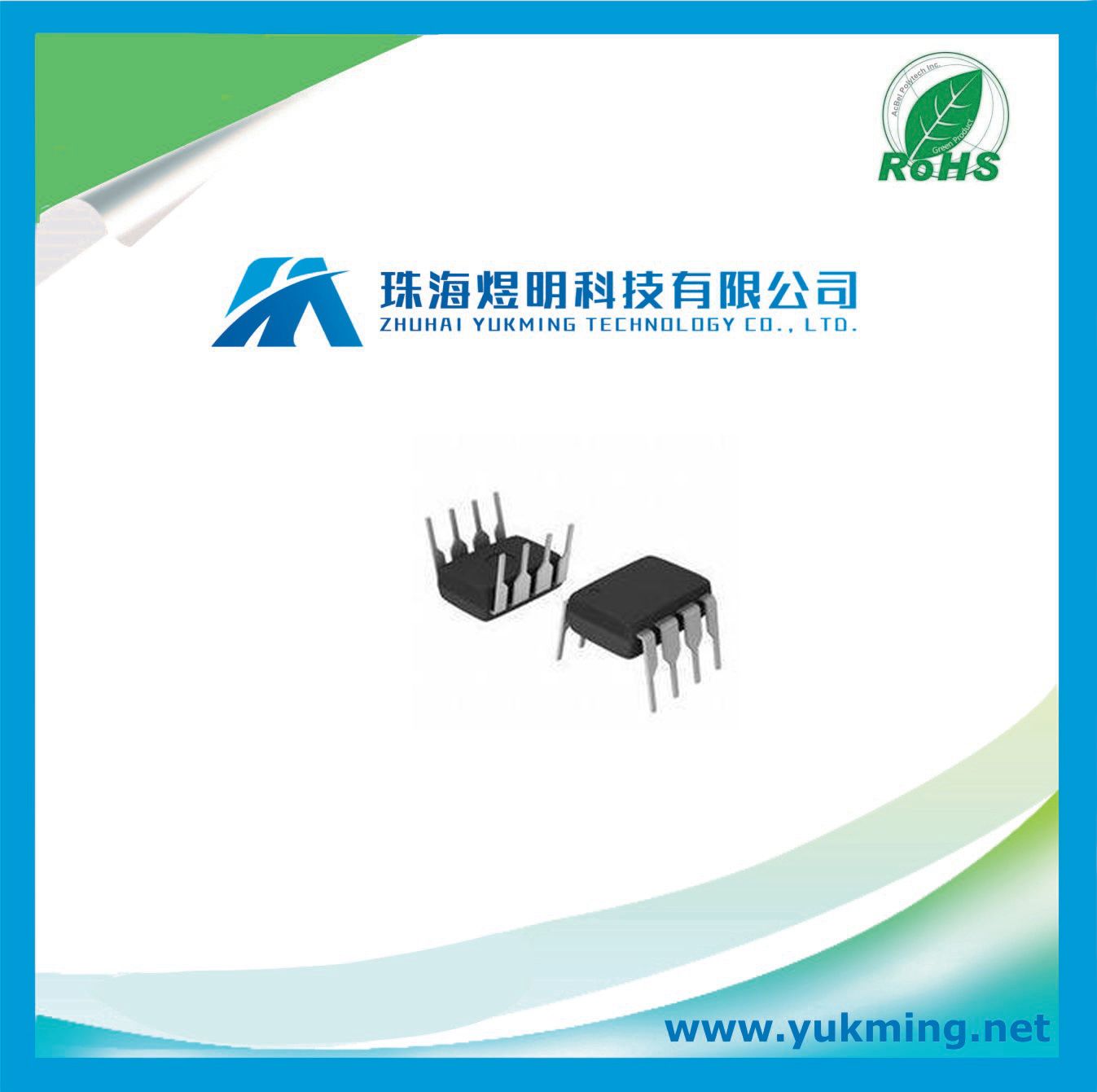

Integrated Circuit Op07cp of Precision Operational Amplifier IC

Prod Model:	OP07CP
Wide Input Voltage Range:	0 to +/- 14 V Typ
Wide Supply Voltage Range:	+/- 3 V to +/- 18 V
Feature 1:	Essentially Equivalent to Fairchild A714 Operatio
Feature 2:	Direct Replacement for PMI Op07c and Op07D

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

PRECISION OPERATIONAL AMPLIFIERS

Low Noise
No External Components Required
Replaces Chopper Amplifiers at a Lower
Cost
Single-Chip Monolithic Fabrication
Wide Input Voltage Range
0 to ±14 V Typ
Wide Supply Voltage Range
±3 V to ±18 V
Essentially Equivalent to Fairchild µA714
Operational Amplifiers
Direct Replacement for PMI OP07C and
OP07D

Description
These devices represent a breakthrough in operational amplifier performance. Low offset and long-term stability
are achieved by means of a low-noise, chopperless, bipolar-input-transistor amplifier circuit. For most
applications, external components are not required for offset nulling and frequency compensation. The true
differential input, with a wide input voltage range and outstanding common-mode rejection, provides maximum
flexibility and performance in high-noise environments and in noninverting applications. Low bias currents and
extremely high input impedances are maintained over the entire temperature range. The OP07 is unsurpassed
for low-noise, high-accuracy amplification of very low-level signals.
These devices are characterized for operation from 0°C to 70°C.
