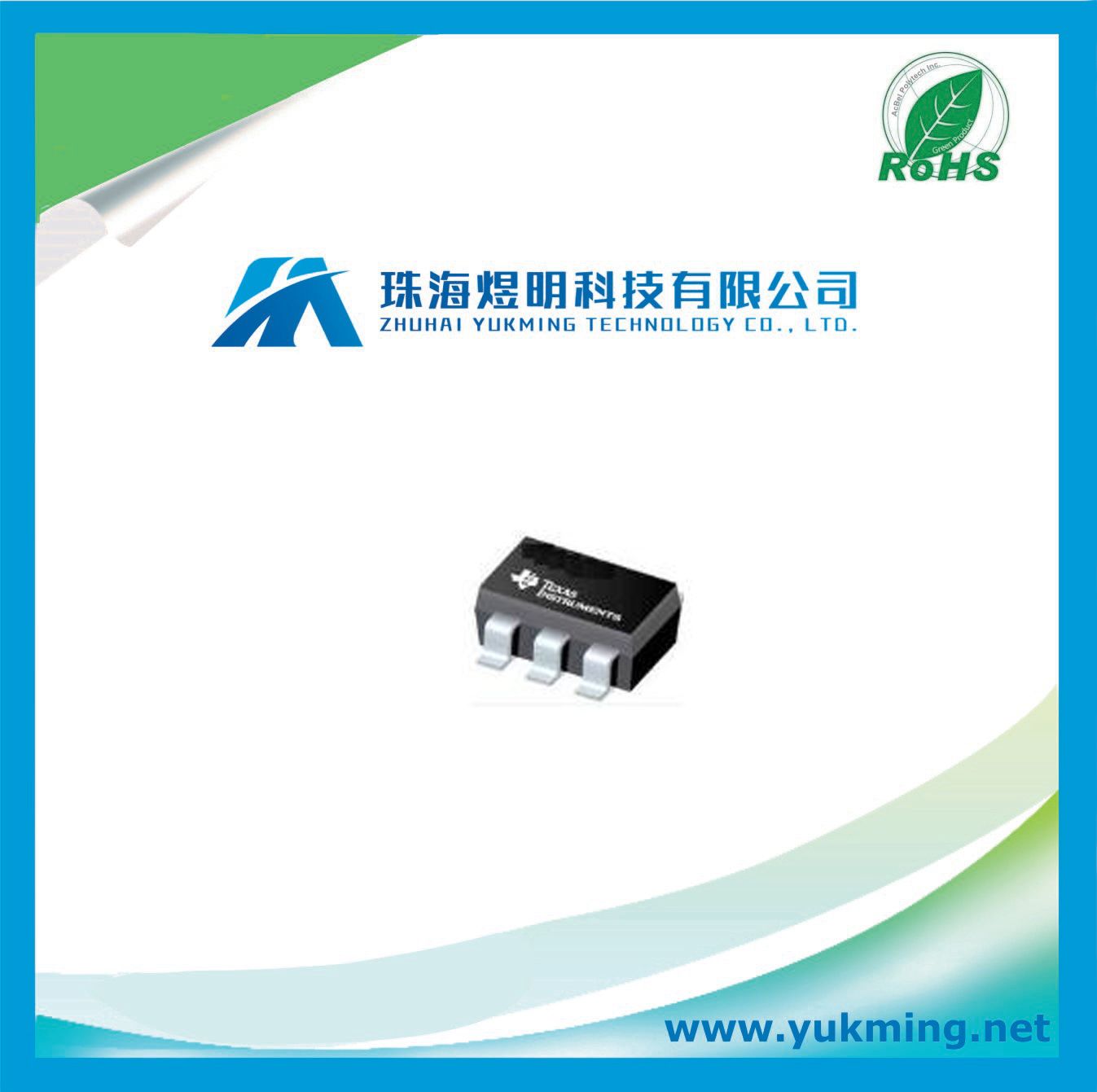

Integrated Circuit Opa188aidbvt of Zero-Drift Operational Amplifier IC

Prod Model:	OPA188AIDBVT
Number Of Channels Per Chip:	1
Typical Gain Bandwidth Product (MHz):	2
Maximum Input Offset Voltage (Mv):	0.025@36V
Maximum Input Offset Current (Ua):	0.0028@36V
Maximum Input Bias Current (Ua):	0.0014@36V
Operating Temperature Range:	-40 to 125 Degree C

Product Description

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
OP Amp

DESCRIPTION
OP Amp Single GP R-R O/P ±18V/36V 5-Pin SOT-23 T/R
Zero-Drift OPERATIONAL AMPLIFIER

The large amount of gain, or amplification, produced by this general purpose amplifier OPA188AIDBVT OP amp from Texas Instruments make it a commonly used component in nearly all electronics today. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±2 V and maximum of ±18 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has a single channel per chip. This device uses one or two power supplies.

Specifications

EU RoHS Compliant
Manufacturer Type Low Noise Amplifier
Type General Purpose Amplifier
Number of Channels per Chip 1
Rail to Rail Rail to Rail Output
Typical Gain Bandwidth Product (MHz) 2
Maximum Input Offset Voltage (mV) 0.025@36V
Maximum Input Offset Current (uA) 0.0028@36V
Maximum Input Bias Current (uA) 0.0014@36V
Minimum Operating Temperature (°C) -40
Minimum CMRR Range (dB) >=115
Maximum Operating Temperature (°C) 125
Minimum PSRR (dB) 142.5(Typ)
Packaging Tape and Reel
Typical Settling Time (ns) 27000
Typical Input Noise Voltage Density (nV/rtHz) 8.8@36V
Maximum Single Supply Voltage (V) 36
Typical Noninverting Input Current Noise Density (pA/rtHz) 0.007@36V
Maximum Dual Supply Voltage (V) ±18
Typical Slew Rate (V/us) 0.8@36V
Shut Down Support No
Maximum Supply Voltage Range (V) 36 to 37
Minimum Single Supply Voltage (V) 4
Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
Minimum Dual Supply Voltage (V) ±2
Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
Maximum Operating Supply Voltage (V) ±18|36
Minimum CMRR (dB) 120
Typical Voltage Gain (dB) 136
Power Supply Type Single|Dual
Mounting Surface Mount
Package Height (mm) 1.3(Max)
Package Length (mm) 3.05(Max)
Package Width (mm) 1.75(Max)
PCB changed 5
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 5
Lead Shape Gull-wing
