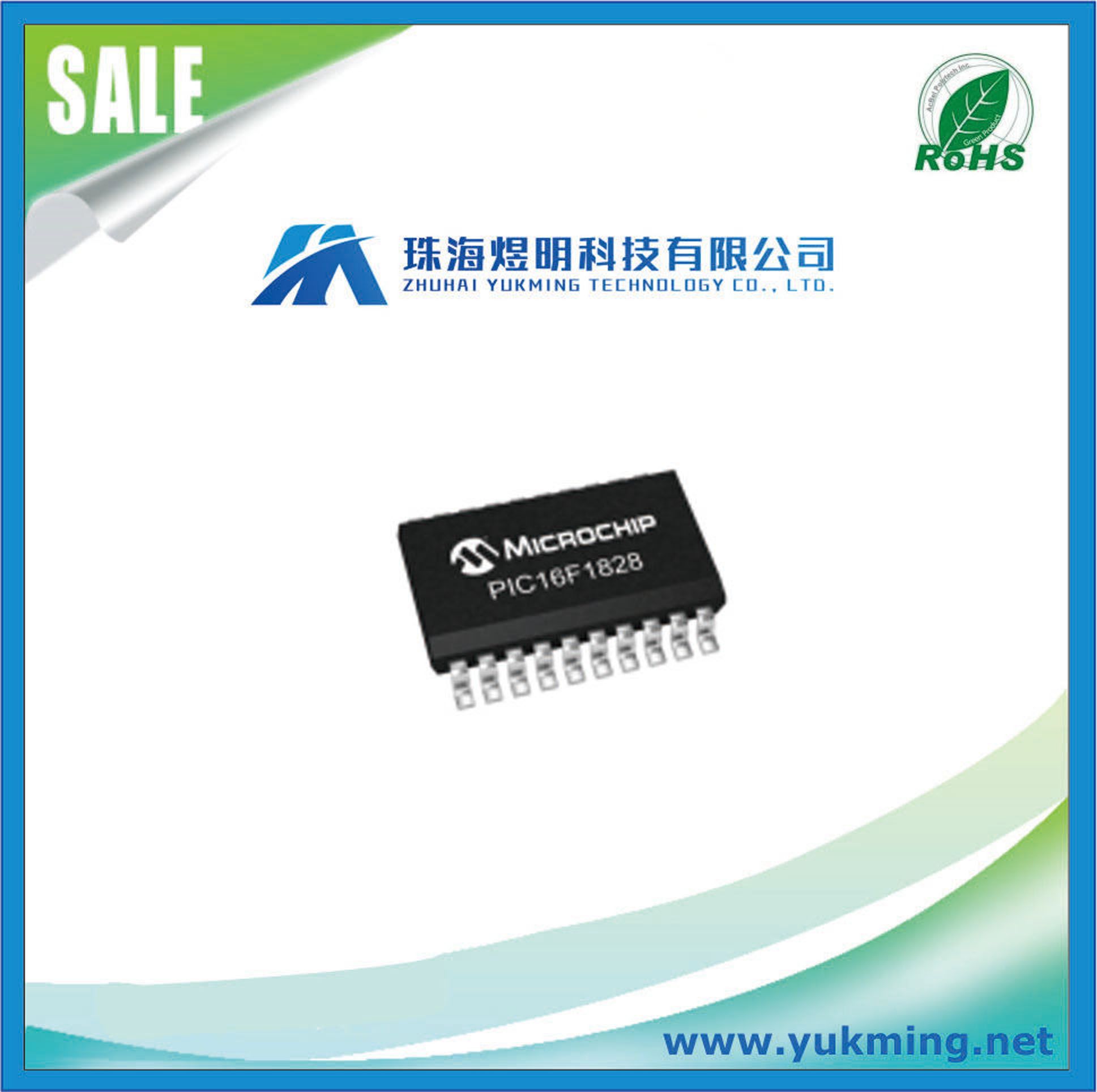

Integrated Circuit Pic16f1828-I/Ss of Flash Micro Controller IC Microchip

Name: Integrated Circuit Pic16f1828-I/Ss of Flash Micro Controller IC Microchip
Brand: all-electronics-online.com
SKU: 782045105
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	US $ 1.05/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PIC16F1828-I/SS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Data Bus Width (Bit):	8
Maximum Clock Rate (MHz):	32
Maximum CPU Frequency (MHz):	32
Program Memory Size:	7kb
RAM Size:	256b
Maximum Operating Supply Voltage (V):	5.5

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER

Microchip Technology

PRODUCT CATEGORY

Microcontroller

DESCRIPTION

MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 20-Pin SSOP Tube

Automate any process or system using this PIC16F1828-I/SS microcontroller from Microchip Technology. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 32 MHz. This device is based on the PIC core architecture. This is a 8 bit processor. Its flash program memory is 7KB. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 1.8 V, while its maximum is 5.5 V. Its ADC resolution is 10.

Manufacturer:MICROCHIP
Min working temp.:-40ºC
Max working temp.:85ºC
Max frequency:32MHz
Typical working supply current:1.8-5.5V
Package:SSOP20

Specifications
EU RoHS Compliant
Family Name PIC16
Data Bus Width (bit) 8
Instruction Set Architecture RISC
Maximum Clock Rate (MHz) 32
Maximum CPU Frequency (MHz) 32
Device Core PIC
Program Memory Type Flash
Program Memory Size 7KB
RAM Size 256B
Number of Programmable I/Os 17
Core Architecture PIC
Programmability Yes
Number of Timers 5
Interface Type I2C/SPI/USART
CAN 0
I2C 1
SPI 1
Ethernet 0
UART 0
USART 1
USB 0
I2S 0
Maximum Operating Supply Voltage (V) 5.5
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
ADC Channels 12
ADC Resolution 10
Number of ADCs Single
Packaging Tube
Minimum Operating Supply Voltage (V) 1.8
Typical Operating Supply Voltage (V) 2.5|3.3|5
CECC Qualified No

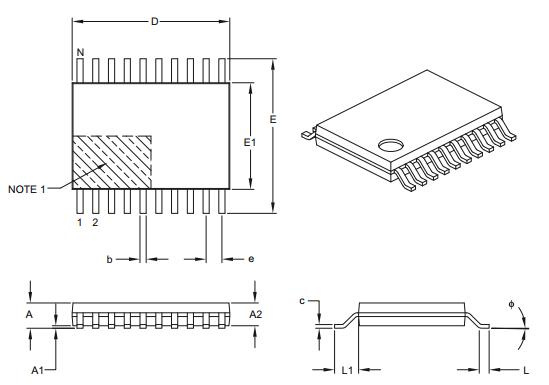

Mounting Surface Mount
Package Height (mm) 1.75
Package Length (mm) 7.2
Package Width (mm) 5.3
PCB changed 20
Standard Package Name SOP
Supplier Package SSOP
Pin Count 20
Lead Shape Gull-wing
