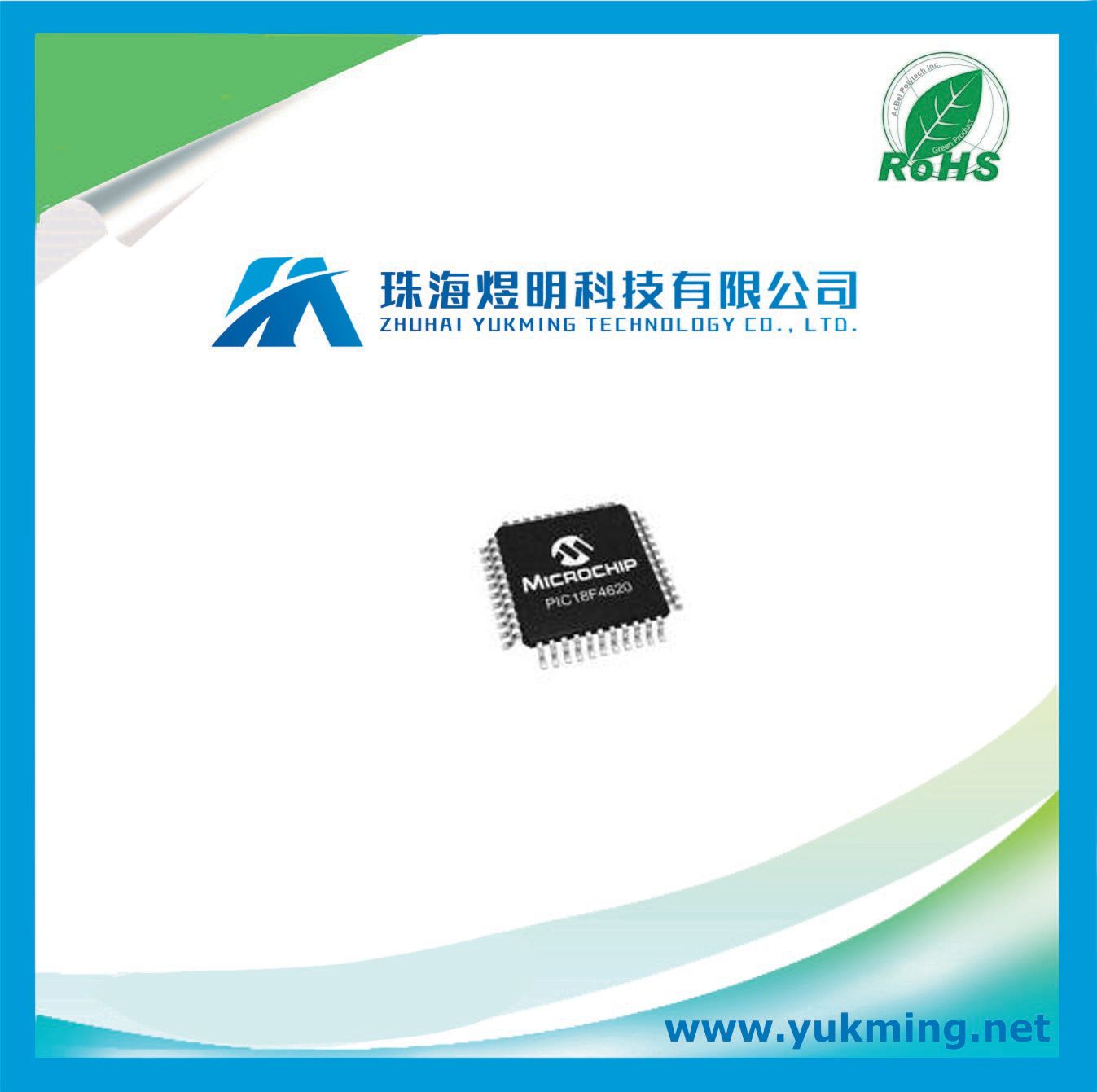

Integrated Circuit Pic18f4620-I/PT of Microcontroller IC Electronic Component

Prod Model:	PIC18F4620-I/PT
Family Name:	Pic18
Data Bus Width (Bit):	8
Maximum Clock Rate (MHz):	40
Maximum CPU Frequency (MHz):	40
Device Core:	Pic
Program Memory Type:	Flash
Program Memory Size:	64kb
RAM Size:	3968b
Number Of Programmable I/OS:	36
Number Of Timers:	4

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Microchip Technology

PRODUCT CATEGORY
Microcontroller

DESCRIPTION
MCU 8-bit PIC18 PIC RISC 64KB Flash 5V 44-Pin TQFP Tray

With the PIC18F4620-I/PT microcontroller from Microchip Technology, you can program a circuit to perform tasks that meet your desired specifications. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 40 MHz. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.2 V, while its maximum is 5.5 V. Its flash program memory is 64KB. Its ADC resolution is 10. This device is based on the PIC core architecture. This is a 8 bit processor.

Specifications
EU RoHS Compliant
Family Name PIC18
Data Bus Width (bit) 8
Instruction Set Architecture RISC
Maximum Clock Rate (MHz) 40
Maximum CPU Frequency (MHz) 40
Device Core PIC
Program Memory Type Flash
Program Memory Size 64KB
RAM Size 3968B
Number of Programmable I/Os 36
Core Architecture PIC
Programmability Yes
Number of Timers 4
Interface Type I2C/SPI/USART
CAN 0
I2C 1
SPI 1
Ethernet 0
UART 0
USART 1
USB 0
I2S 0
Maximum Operating Supply Voltage (V) 5.5
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
ADC Channels 13
ADC Resolution 10
Number of ADCs Single
Packaging Tray
Minimum Operating Supply Voltage (V) 4.2
Typical Operating Supply Voltage (V) 5
CECC Qualified No
Mounting Surface Mount
Package Height (mm) 1
Package Length (mm) 10
Package Width (mm) 10
PCB changed 44
Standard Package Name QFP
Supplier Package TQFP
Pin Count 44
Lead Shape Gull-wing
