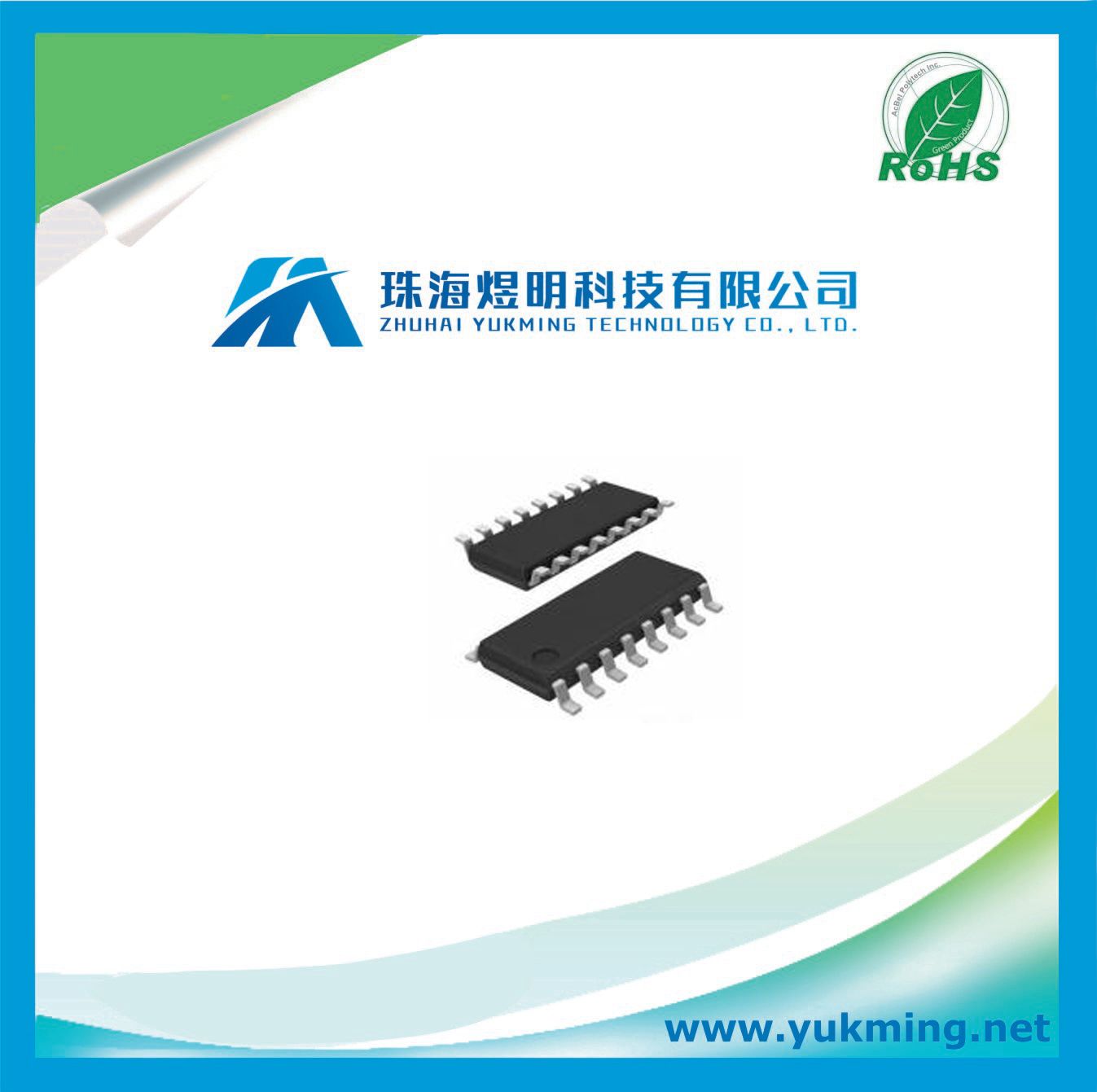

Integrated Circuit Sg3524dr of PF Regulating Pulse-Width Modulator IC

Name: Integrated Circuit Sg3524dr of PF Regulating Pulse-Width Modulator IC
Brand: all-electronics-online.com
SKU: 804307385
Availability: InStock
Rating: 4.9 (54 reviews)

Price:	US $ 0.17/Piece
Min Order:	2500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SG3524DR
Low Standby Current:	8 Ma Typ
Power:	Control Circuitry
Complete Pulse:	Width Modulation (PWM)
Push:	Pull Applications

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

REGULATING PULSE-WIDTH MODULATORS

Complete Pulse-Width Modulation (PWM)
Power-Control Circuitry
Uncommitted Outputs for Single-Ended or
Push-Pull Applications
Low Standby Current . . . 8 mA Typ
Interchangeable With Industry Standard
SG2524 and SG3524

Description/ordering information
The SG2524 and SG3524 incorporate all the
functions required in the construction of a
regulating power supply, inverter, or switching
regulator on a single chip. They also can be used
as the control element for high-power-output
applications. The SG2524 and SG3524 were
designed for switching regulators of either polarity, transformer-coupled dc-to-dc converters, transformerless
voltage doublers, and polarity-converter applications employing fixed-frequency, pulse-width modulation
(PWM) techniques. The complementary output allows either single-ended or push-pull application. Each device
includes an on-chip regulator, error amplifier, programmable oscillator, pulse-steering flip-flop, two uncommitted
pass transistors, a high-gain comparator, and current-limiting and shutdown circuitry.

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
