Integrated Circuit Sn74ahc1g08dbvt of and Gate 1-Element 2-in CMOS IC

Name: Integrated Circuit Sn74ahc1g08dbvt of and Gate 1-Element 2-in CMOS IC
Brand: all-electronics-online.com
SKU: 799603735
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 0.0797/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SN74AHC1G08DBVT
Operation Temperature Range:	-55 ~ 125
Logic Family:	Ahc
Logic Function:	and
Fabrication Technology:	CMOS
Number Of Elements Per Chip:	1
Number Of Element Inputs:	2-in
Number Of Element Outputs:	1
Packaging:	Tape and Reel
Maximum Quiescent Current (Ua):	1
Mounting:	Surface Mount

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Gates

DESCRIPTION

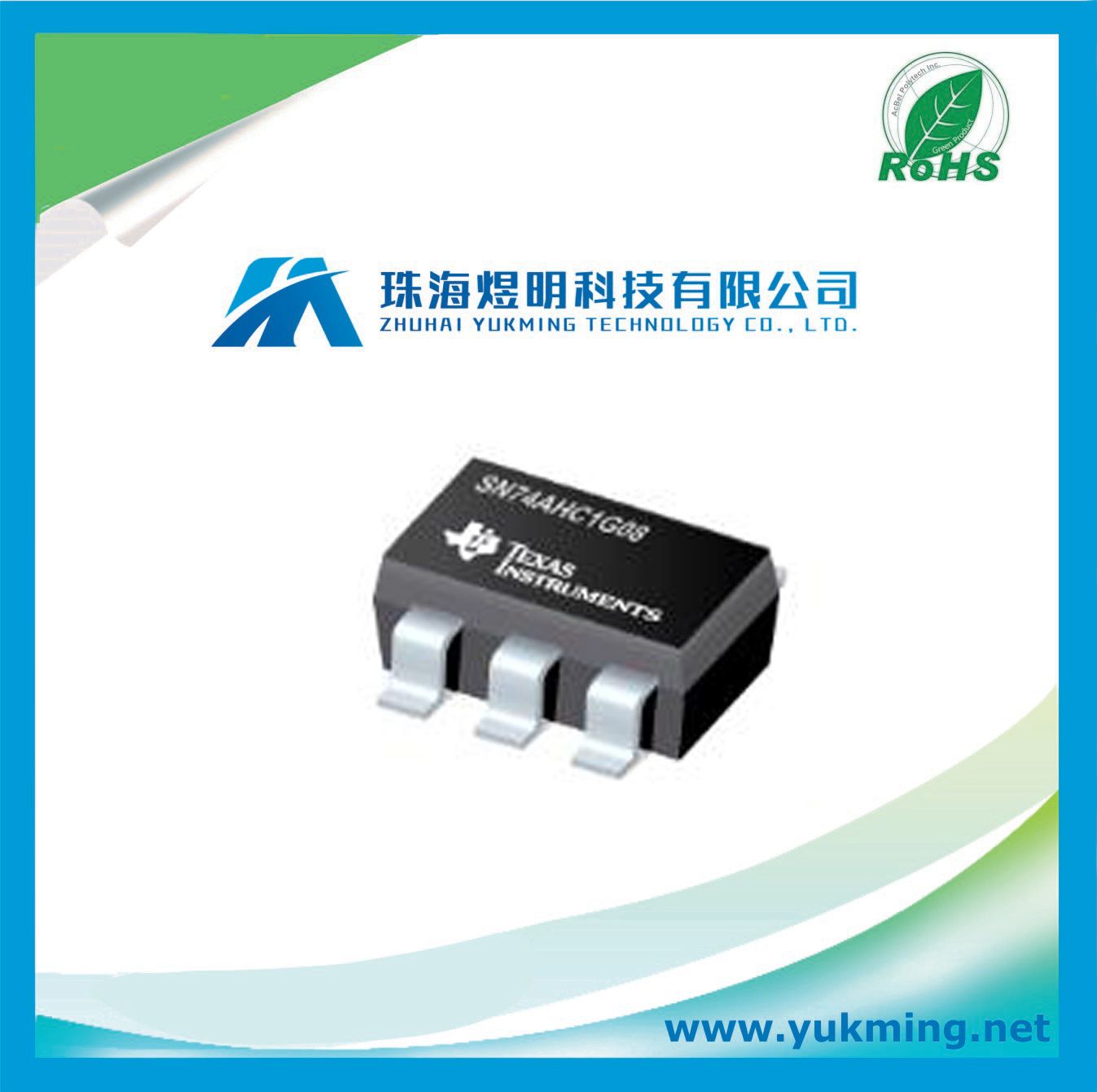

AND Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R

Texas Instruments brings you their latest SN74AHC1G08DBVT logic gates, from which you can build and implement logical functions. This gate has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.

Specifications
EU RoHS Compliant
Logic Family AHC
Logic Function AND
Fabrication Technology CMOS
Number of Elements per Chip 1
Number of Element Inputs 2-IN
Number of Element Outputs 1
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Minimum Operating Supply Voltage (V) 2
Maximum Operating Supply Voltage (V) 5.5
Typical Operating Supply Voltage (V) 2.5|3.3|5
Maximum High Level Output Current (mA) -8
Maximum Low Level Output Current (mA) 8
Maximum Quiescent Current (uA) 1
Mounting Surface Mount

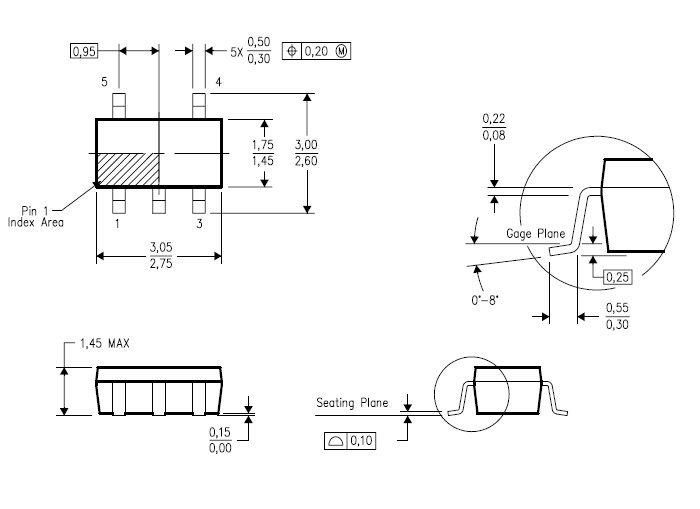

Package Height (mm) 1.3(Max)
Package Length (mm) 3.05(Max)
Package Width (mm) 1.75(Max)
PCB changed 5
Standard Package Name SOT-23
Supplier Package SOT-23

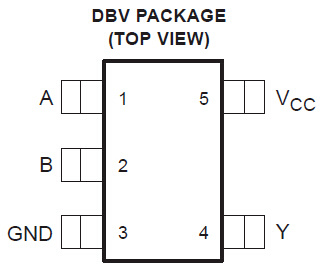

Pin Count 5
Lead Shape Gull-wing

Features
Operating Range of 2 V to 5.5 V
Max tpd of 7 ns at 5 V
Low Power Consumption, 10-μA Max ICC
±8-mA Output Drive at 5 V
Schmitt-Trigger Action at All Inputs Makes
the Circuit Tolerant for Slower Input Rise
and Fall Time
Latch-Up Performance Exceeds 250 mA Per
JESD 17
ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model (A114-A)
− 200-V Machine Model (A115-A)
− 1000-V Charged-Device Model (C101)

Applications
Barcode Scanners
Cable Solutions
E-Books
Embedded PCs
Field Transmitter: Temperature or Pressure
Sensors
Fingerprint Biometrics
HVAC: Heating, Ventilating, and Air Conditioning
Network-Attached Storage (NAS)
Server Motherboard and PSU
Software Defined Radios (SDR)
TV: High Definition (HDTV), LCD, and Digital
Video Communications Systems
Wireless Data Access Cards, Headsets,
Keyboards, Mice, and LAN Cards
