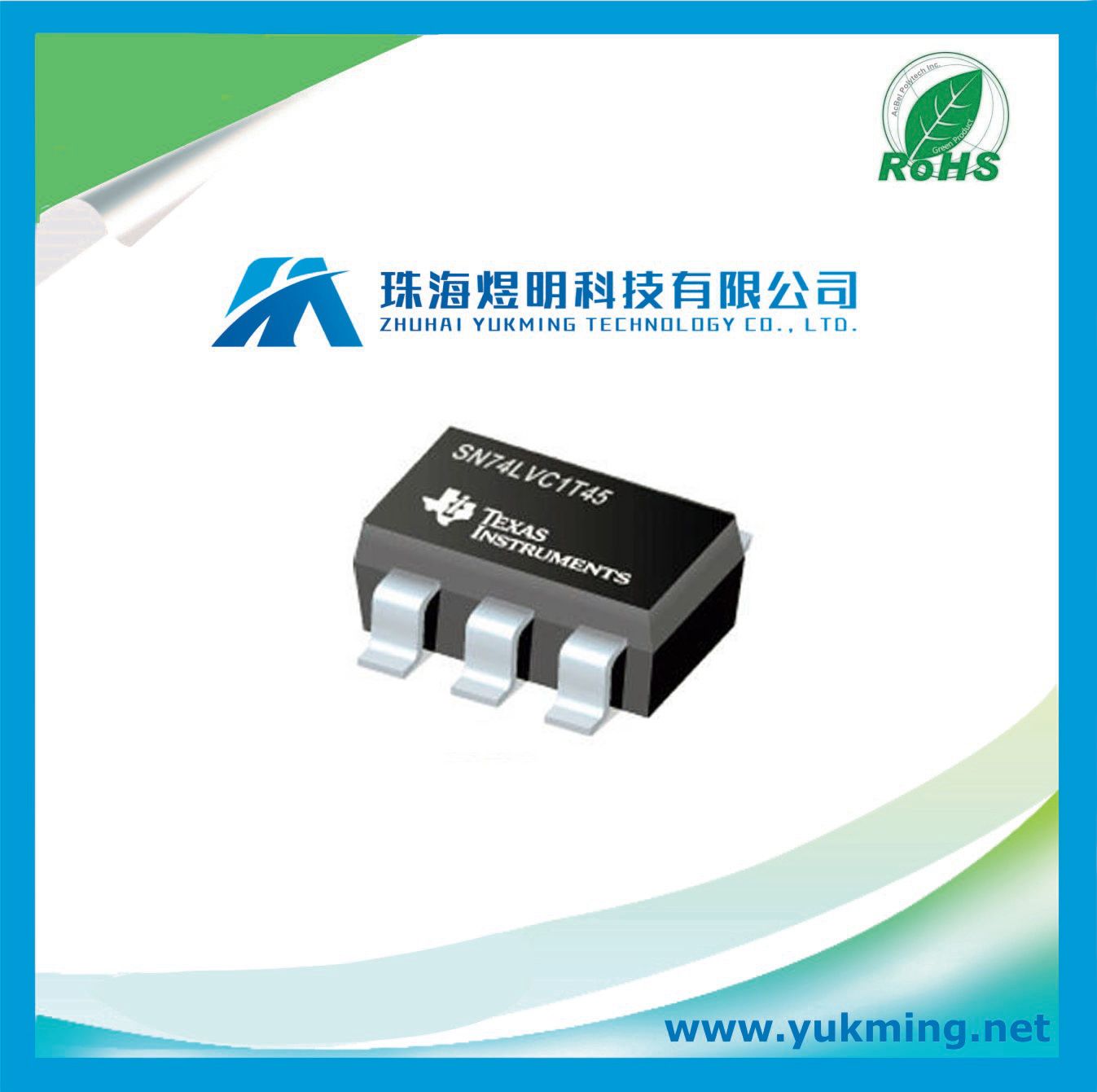

Integrated Circuit Sn74lvc1t45dckt of Transceiver IC

Name: Integrated Circuit Sn74lvc1t45dckt of Transceiver IC
Brand: all-electronics-online.com
SKU: 797135415
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	US $ 0.5441/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SN74LVC1T45DCKT

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Level Translator

DESCRIPTION

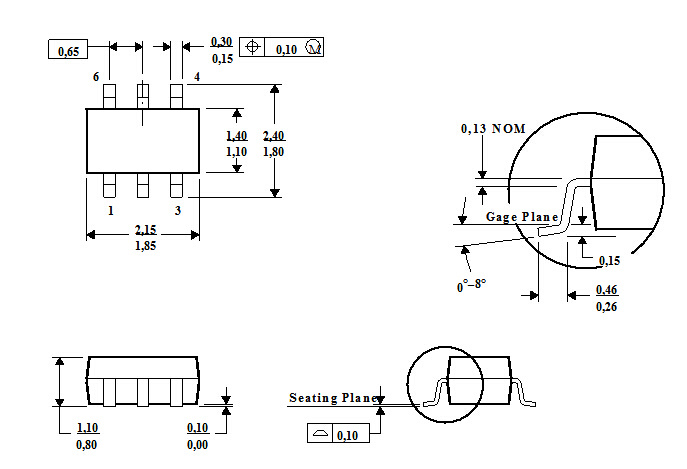

Voltage Level Translator 6-Pin SC-70 T/R

The Texas Instruments SN74LVC1T45DCKT level translator can control and allow the proper input voltage into your electronic circuits. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.

Features
Available in the Texas Instruments NanoFree™
Package
Fully Configurable Dual-Rail Design Allows Each
Port to OperateOver the Full 1.65-V to 5.5-V
Power-Supply Range
V_CC Isolation Feature - If Either
V_CCInput Is at GND, Both Ports Are
in the High-Impedance State
DIR Input Circuit Referenced to V_CCA
Low Power Consumption, 4-µA Max I_CC
±24-mA Output Drive at 3.3 V
I_offSupports Partial-Power-Down Mode
Operation
Max Data Rates
420 Mbps (3.3-V to 5-V Translation)
210 Mbps (Translate to 3.3 V)
140 Mbps (Translate to 2.5 V)
75 Mbps (Translate to 1.8 V)
Latch-Up Performance Exceeds 100 mA Per JESD 78,
Class II
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
