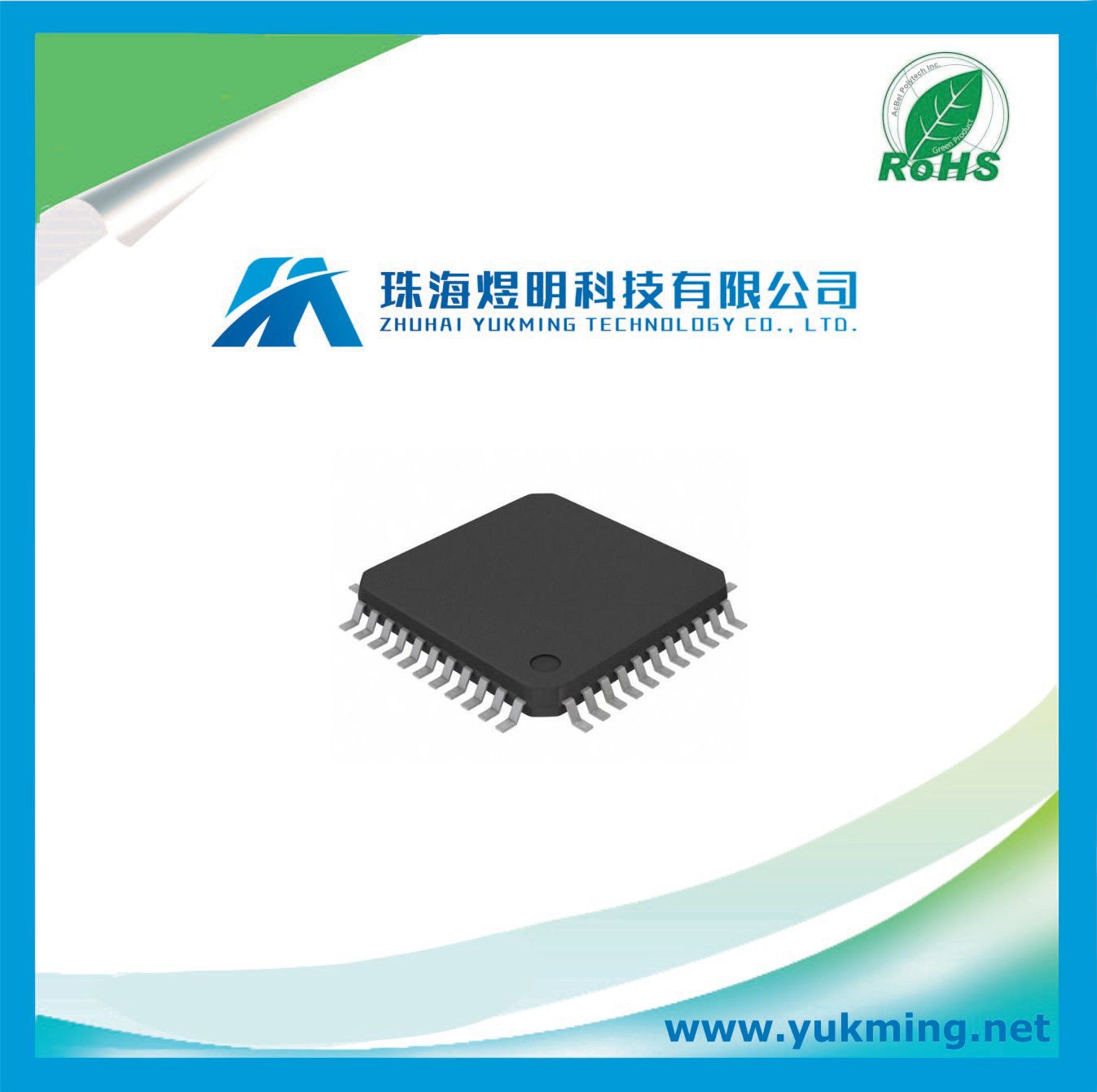

Integrated Circuit Sst89e516rd2-40-C-Tqje of Flashflex MCU IC

Name: Integrated Circuit Sst89e516rd2-40-C-Tqje of Flashflex MCU IC
Brand: all-electronics-online.com
SKU: 796616565
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 3/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SST89E516RD2-40-C-TQJE

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

FEATURES:
• 8-bit 8051-Compatible Microcontroller (MCU)
with Embedded SuperFlash Memory
- Fully Software Compatible
- Development Toolset Compatible
- Pin-For-Pin Package Compatible
• SST89E516RD2 Operation
- 0 to 40 MHz at 5V
• SST89V516RD2 Operation
- 0 to 33 MHz at 3V
• 1 KByte Internal RAM
• Dual Block SuperFlash EEPROM
- 64 KByte primary block +
8 KByte secondary block
(128-Byte sector size for both blocks)
- Individual Block Security Lock with SoftLock
- Concurrent Operation during
In-Application Programming (IAP)
- Memory Overlay for Interrupt Support during IAP
• Support External Address Range up to 64
KByte of Program and Data Memory
• Three High-Current Drive Ports (16 mA each)
• Three 16-bit Timers/Counters
• Full-Duplex, Enhanced UART
- Framing Error Detection
- Automatic Address Recognition
• Ten Interrupt Sources at 4 Priority Levels
- Four External Interrupt Inputs
• Programmable Watchdog Timer (WDT)
• Programmable Counter Array (PCA)
• Four 8-bit I/O Ports (32 I/O Pins) and
One 4-bit Port
• Second DPTR register
• Low EMI Mode (Inhibit ALE)
• SPI Serial Interface
• Standard 12 Clocks per cycle, the device has an
option to double the speed to 6 clocks per cycle.
• TTL- and CMOS-Compatible Logic Levels
• Brown-out Detection
• Low Power Modes
- Power-down Mode with External Interrupt Wake-up
- Idle Mode
• Temperature Ranges:
- Commercial (0°C to +70°C)
- Industrial (-40°C to +85°C)
• Packages Available
- 40-contact WQFN (Port 4 feature not available)
- 44-lead PLCC
- 40-pin PDIP (Port 4 feature not available)
- 44-lead TQFP
• All non-Pb (lead-free) devices are RoHS compliant
