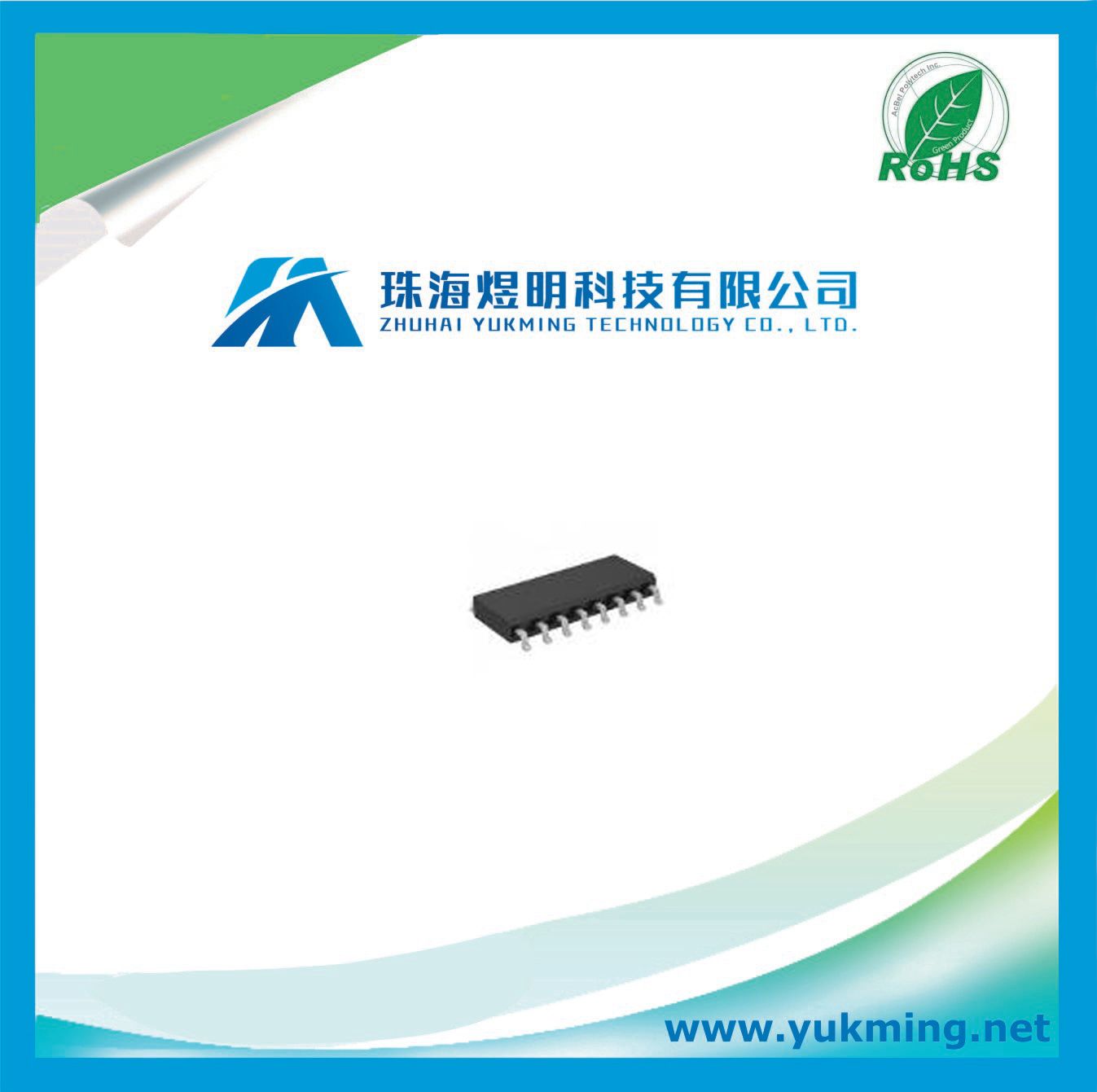

Integrated Circuit St232CDR of Dual Transmitter/Receiver IC St

Name: Integrated Circuit St232CDR of Dual Transmitter/Receiver IC St
Brand: all-electronics-online.com
SKU: 795770985
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 0.2019/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST232CDR

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
STMicroelectronics

PRODUCT CATEGORY
Bus Line Transceiver

DESCRIPTION
Dual Transmitter/Receiver RS-232 16-Pin SOP T/R

Specifications
EU RoHS Compliant
Number of Transmitters 2
Number of Transceivers 1
Data Rate 220Kbps
Number of Receivers 2
Data Transmission Topology Point-to-Point
Transmitter Signal Type Single-Ended
Receiver Signal Type Single-Ended
Function Line Transmitter/Receiver
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Interface Standards EIA/TIA-232|RS-232|V.28
Power Supply Type Single
Typical Single Supply Voltage (V) 5
Minimum Single Supply Voltage (V) 4.5
Maximum Single Supply Voltage (V) 5.5
Maximum Supply Current (mA) 10
Packaging Tape and Reel
Temperature Grade Commercial
Mounting Surface Mount

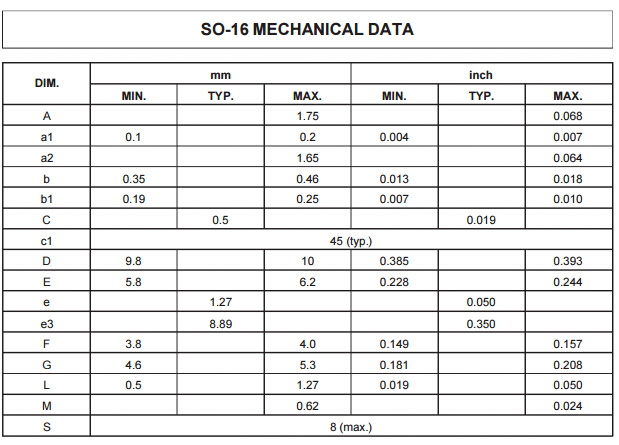

Package Height (mm) 1.65(Max)
Package Length (mm) 10(Max)
Package Width (mm) 4(Max)
PCB changed 16

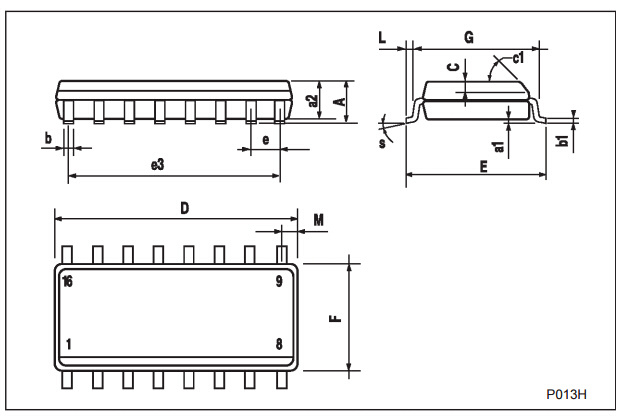

Standard Package Name SOP
Supplier Package SOP

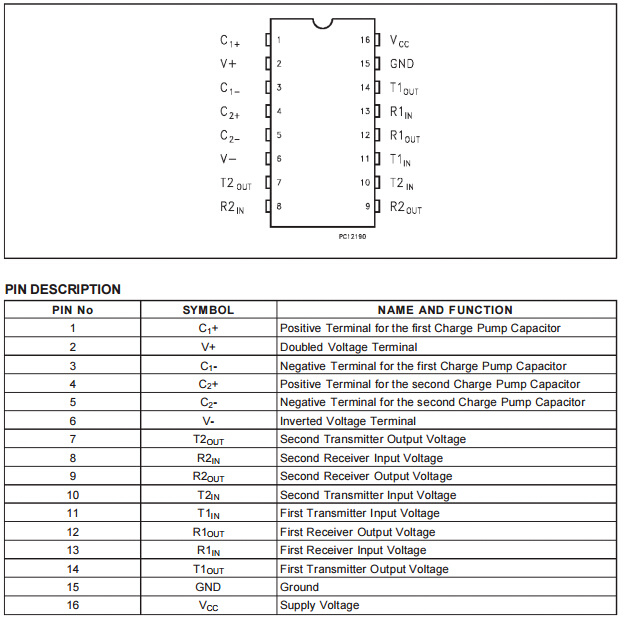

Pin Count 16
Lead Shape Gull-wing

SUPPLY VOLTAGE RANGE: 4.5 TO 5.5V
SUPPLY CURRENT NO LOAD (TYP): 5mA
TRANSMITTER OUTPUT VOLTAGESWING (TYP): ±7.8V
CONTROLLED OUTPUT SLEW RATE
RECEIVER INPUT VOLTAGE RANGE: ±30V
DATA RATE (TYP): 220Kbps
OPERATING TEMPERATURE RANGE: -40 TO 85 ^oC, 0 TO 70 ^oC
COMPATIBLE WITH MAX232 AND MAX202

Type	T emperature	P ackage	Comments
	Range
ST232CN	0 to 70 ^oC	DIP-16	25 parts per tube / 40 tube per box
ST232BN	-40 to 85 ^oC	DIP-16	25 parts per tube / 40 tube per box
ST232CD	0 to 70 ^oC	SO-16 (Tube)	50 parts per tube / 20 tube per box
ST232BD	-40 to 85 ^oC	SO-16 (Tube)	50 parts per tube / 20 tube per box
ST232CDR	0 to 70 ^oC	SO-16 (Tape & Reel)	2500 parts per reel
ST232BDR	-40 to 85 ^oC	SO-16 (Tape & Reel)	2500 parts per reel
ST232CW	0 to 70 ^oC	SO-16 Large (Tube)	49 parts per tube / 25 tube per box
ST232BW	-40 to 85 ^oC	SO-16 Large (Tube)	49 parts per tube / 25 tube per box
ST232CWR	0 to 70 ^oC	SO-16 Large (Tape & Reel)	1000 parts per reel
ST232BWR	-40 to 85 ^oC	SO-16 Large (Tape & Reel)	1000 parts per reel
ST232CT	0 to 70 ^oC	TSSOP16 (Tube)	only for samples
ST232BT	-40 to 85 ^oC	TSSOP16 (Tube)	only for samples
ST232CTR	0 to 70 ^oC	TSSOP16 (Tape & Reel)	2500 parts per reel
ST232BTR	-40 to 85 ^oC	TSSOP16 (Tape & Reel)	2500 parts per reel
