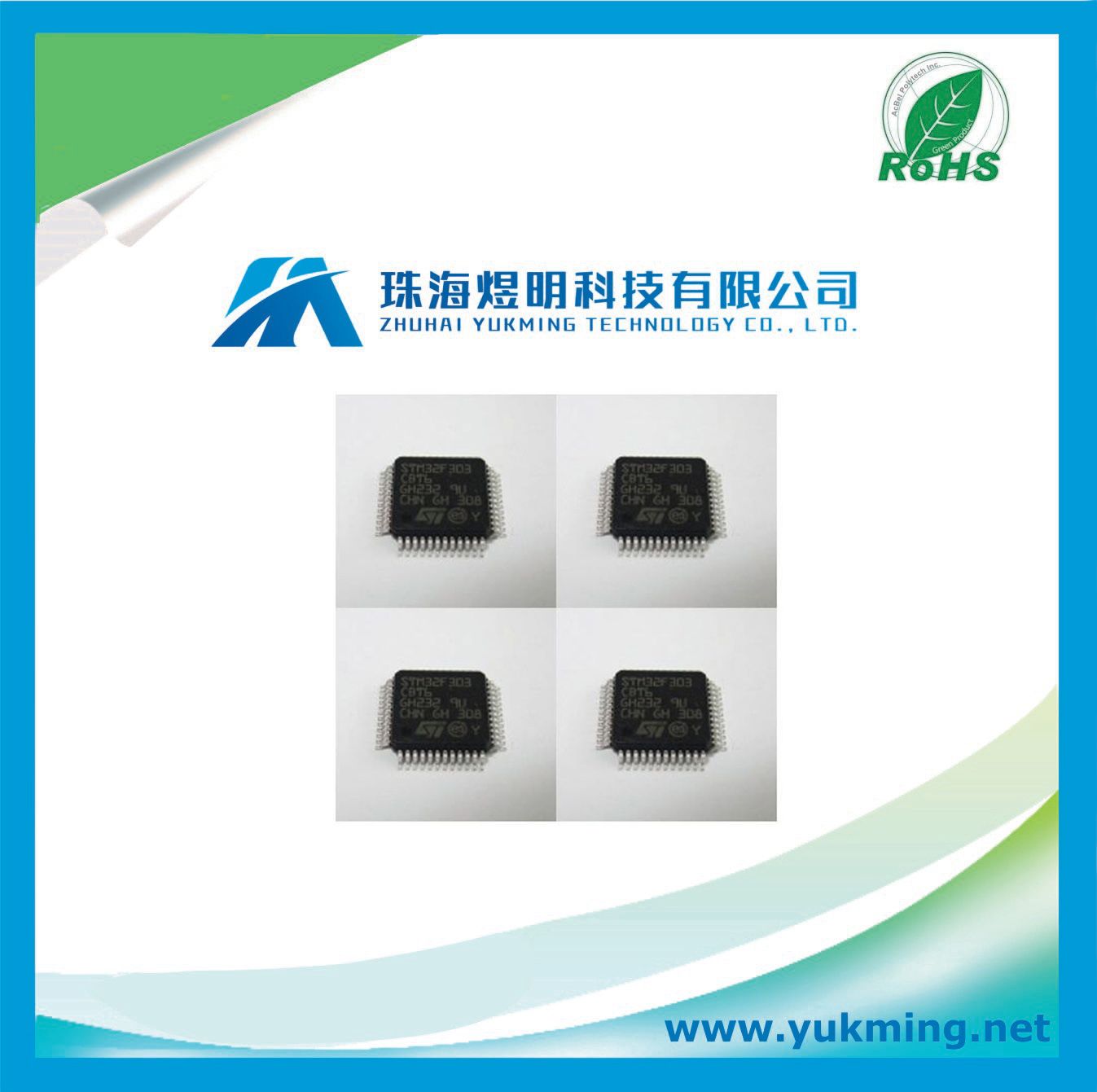

Integrated Circuit Stm32f303cbt6 of Arm Micro Controller IC

Name: Integrated Circuit Stm32f303cbt6 of Arm Micro Controller IC
Brand: all-electronics-online.com
SKU: 785863865
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	US $ 5.2938/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	STM32F303CBT6
Family Name:	Stm32f
Data Bus Width (Bit):	32
Maximum Clock Rate (MHz):	72
Maximum CPU Frequency (MHz):	72
Program Memory Type:	Flash
Program Memory Size:	128kb
RAM Size:	32kb
Number Of Programmable I/OS:	37

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Product category: ARM microcontroller - MCU
Core: ARM Cortex M4
Data bus width: 32 bit
Max clock rate: 72 MHz
ROM size: 128 kB
Data RAM size: 24 kB
On-chip ADC: Yes
Operation supply voltage: 2 V to 3.6 V
Max operation temperature: + 85 C

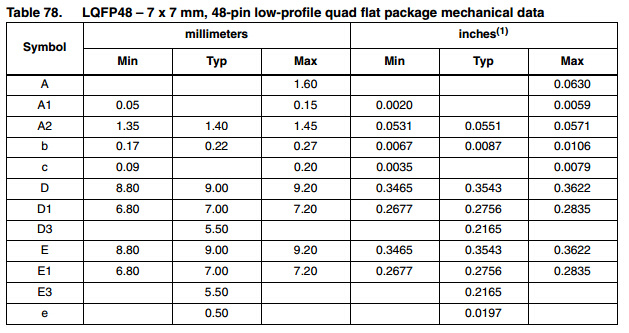

Package / box: LQFP-48
PCB: SMD/SMT
A/D bit size: 12 bit
A/D channels available: 1
Brand: STMicroelectronics
Interface type: CAN,I2C, SPI, UART, USB
Length 7 mm
Min operation temperature: - 40 C
Programmable input/output end quantity: 27
Timer quantity: 8
On-chip DAC: Yes
Packaging: Tray
Processor series STM32F303xx
ROM type: Flash

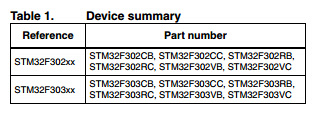

Series: STM32F303CB

MANUFACTURER
STMicroelectronics

PRODUCT CATEGORY
Microcontroller

DESCRIPTION
MCU 32-bit STM32F ARM Cortex M4 RISC 128KB Flash 2.5V/3.3V 48-Pin LQFP Tray

Automate any process or system using this STM32F303CBT6 microcontroller from STMicroelectronics. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 72 MHz. Its ADC resolution is 12/12/12/12, while its DAC resolution is 12/12. Its flash program memory is 128KB. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V. This device is based on the ARM Cortex M4 core architecture. This is a 32 bit processor.

Specifications
EU RoHS Compliant
Family Name STM32F
Data Bus Width (bit) 32
Instruction Set Architecture RISC
Maximum Clock Rate (MHz) 72
Maximum CPU Frequency (MHz) 72
Device Core ARM Cortex M4
Program Memory Type Flash
Program Memory Size 128KB
RAM Size 32KB
Number of Programmable I/Os 37
Core Architecture ARM
Programmability Yes
Number of Timers 10
Interface Type CAN/I2C/I2S/SPI/UART/USART/USB
CAN 1
I2C 2
SPI 3
Ethernet 0
UART 2
USART 3
USB 1
I2S 3
Maximum Operating Supply Voltage (V) 3.6
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
ADC Channels 12/12/12/12
ADC Resolution 12/12/12/12
Number of ADCs Quad
DAC Channels 12/12
DAC Resolution 12/12
Number of DACs Dual
Packaging Tray
Minimum Operating Supply Voltage (V) 2
Typical Operating Supply Voltage (V) 2.5|3.3
CECC Qualified No
Mounting Surface Mount
Package Height (mm) 1.4
Package Length (mm) 7
Package Width (mm) 7
PCB changed 48
Standard Package Name QFP
Supplier Package LQFP
Pin Count 48
Lead Shape Gull-wing
