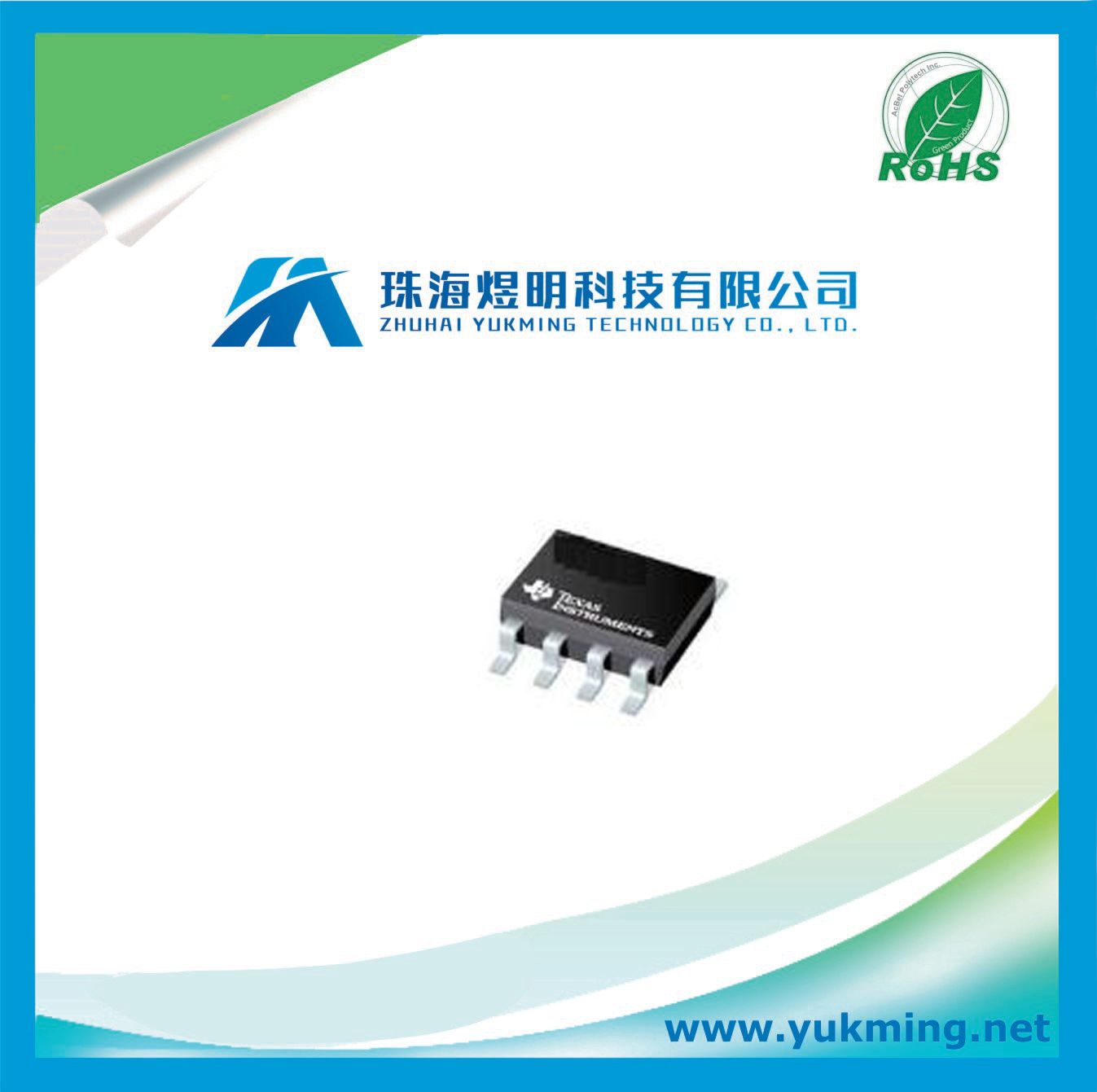

Integrated Circuit Tl431idr of Power Management Device IC

Prod Model:	TL431IDR
Output Voltage Tolerance (Lm317A):	1%

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Voltage References

DESCRIPTION
V-Ref Adjustable 2.495V to 36V 100mA Automotive 8-Pin SOIC T/R

Even in the event of large power supply variations, this TL431IDR voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With an output that has a voltage of 2.495 to 36 V, this is power management at its best. This will operate at a maximum voltage of 37 V, making it easy to control the power in your circuit. It has an initial accuracy of 2%. This voltage reference circuit supports shunt topology. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It runs with a maximum temperature coefficient of 34ppm/°C(Typ). This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Specifications
EU RoHS Compliant
Topology Shunt
Reference Type Adjustable
Output Voltage (V) 2.495 to 36
Initial Accuracy 2%
Maximum Input Voltage (V) 37
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Tape and Reel
Maximum Temperature Coefficient 34ppm/°C(Typ)
Temperature Grade Industrial
Mounting Surface Mount
Package Height (mm) 1.5(Max)
Package Length (mm) 5(Max)
Package Width (mm) 4(Max)
PCB changed 8
Standard Package Name SOP
Supplier Package SOIC
Pin Count 8
Lead Shape Gull-wing
