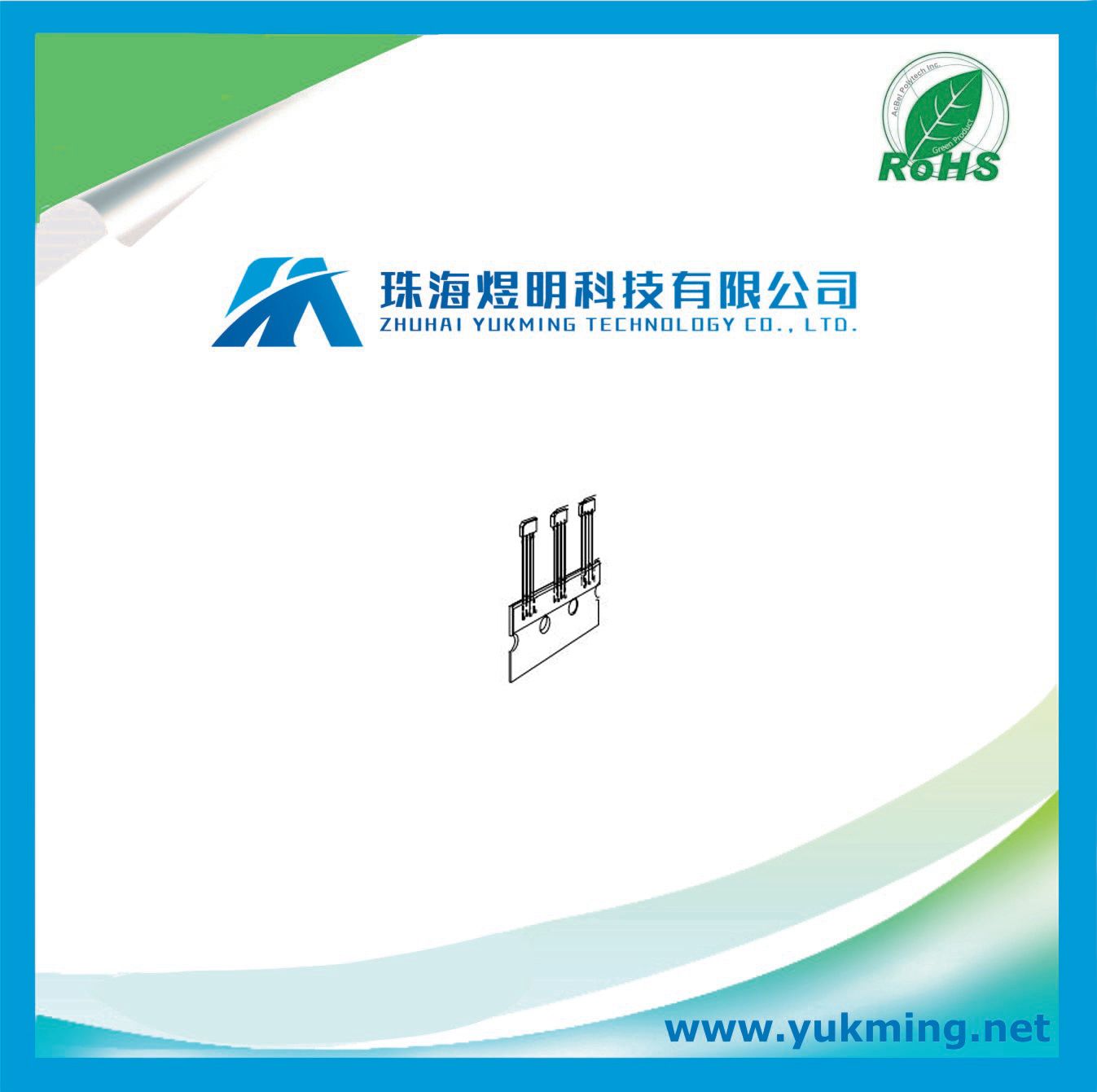

Integrated Circuit Tle4921-5u of Differential Hall Effect Magnetic Sensor

Prod Model:	TLE4921-5U
Series:	Tle
Part Status:	Active
Function:	Special Purpose
Technology:	Hall Effect
Sensing Range:	0mt Trip, 0mt Release
-40°c ~ 150°c:	-40 Degree C ~ 150 Degree C

Product Description

Categories	Sensors, Transducers
	Magnetic Sensors - Switches (Solid State)
Manufacturer	Infineon Technologies
Series	TLE
Packaging	Tape & Box (TB)
Part Status	Active
Function	Special Purpose
Technology	Hall Effect
Sensing Range	0mT Trip, 0mT Release
Test Condition	-40°C ~ 150°C
Voltage - Supply	4.5 V ~ 24 V
Current - Supply (Max)	8.8mA
Current - Output (Max)	50mA
Output Type	Open Collector
Features	Temperature Compensated
Operating Temperature	-40°C ~ 150°C (TJ)
Package / Case	4-SIP, SSO-4-01
Supplier Device Package	P-SSO-4-1


Features
• Advanced performance
• High sensitivity
• Symmetrical thresholds
• High piezo resistivity
• Reduced power consumption
• South and north pole pre-induction possible
• AC coupled
• Digital output signal
• Two-wire and three-wire configuration possible
• Large temperature range
• Large airgap
• Low cut-off frequency
• Protection against overvoltage
• Protection against reversed polarity
• Output protection against electrical disturbances

The differential Hall Effect sensor TLE 4921-5U provides a high sensitivity and a
superior stability over temperature and symmetrical thresholds in order to achieve a
stable duty cycle. TLE 4921-5U is particularly suitable for rotational speed detection
and timing applications of ferromagnetic toothed wheels such as anti-lock braking
systems, transmissions, crankshafts, etc. The integrated circuit (based on Hall
effect) provides a digital signal output with frequency proportional to the speed of
rotation. Unlike other rotational sensors differential Hall ICs are not influenced by
radial vibration within the effective airgap of the sensor and require no external
signal processing.
