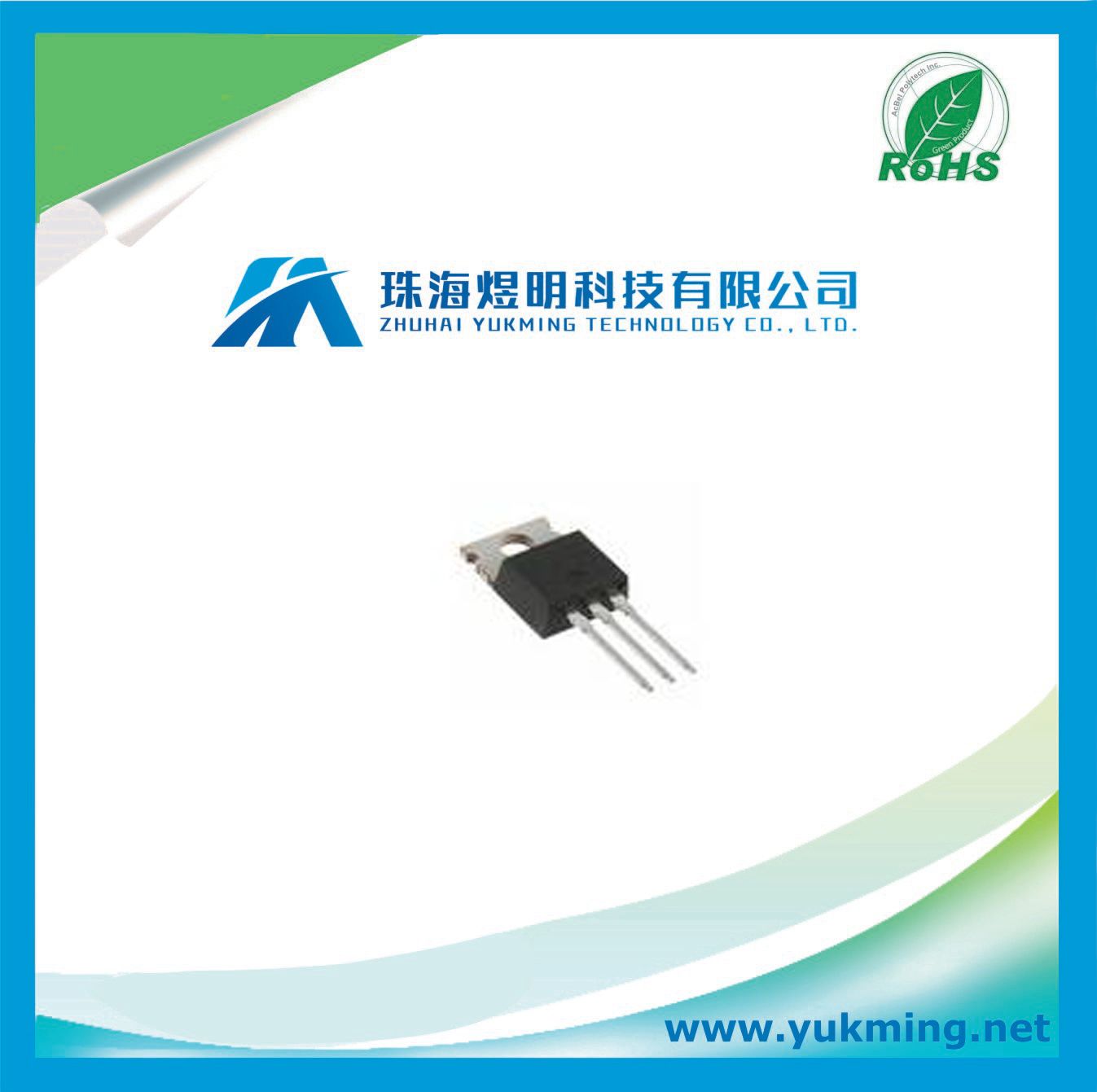

Integrated Circuit Top225yn of Three-Terminal off-Line PWM Switch IC

Name: Integrated Circuit Top225yn of Three-Terminal off-Line PWM Switch IC
Brand: all-electronics-online.com
SKU: 804780875
Availability: InStock
Rating: 4.3 (49 reviews)

Price:	US $ 1.45/Piece
Min Order:	1500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TOP225YN

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Three-terminal Off-line PWM Switch IC

Product Highlights
Lowest cost, lowest component count switcher solution
Cost competitive with linears above 5W
Very low AC/DC losses - up to 90% efficiency
Built-in Auto-restart and Current limiting
Latching Thermal shutdown for system level protection
Implements Flyback, Forward, Boost or Buck topology
Works with primary or opto feedback
Stable in discontinuous or continuous conduction mode
Source connected tab for low EMI
Circuit simplicity and Design Tools reduce time to market

Description
The second generationTOPSwitch-IIfamily is more costeffective and provides several enhancements over the firstgeneration TOPSwitch family. TheTOPSwitch-IIfamily extendsthe power range from 100W to 150W for 100/115/230 VACinput and from 50W to 90W for 85-265 VAC universal input.This bringsTOPSwitchtechnology advantages to many newapplications, i.e. TV, Monitor, Audio amplifiers, etc. Manysignificant circuit enhancements that reduce the sensitivity toboard layout and line transients now make the design even easier. The standard 8L PDIP package option reduces cost inlower power, high efficiency applications. The internal leadframe of this package uses six of its pins to transfer heat fromthe chip directly to the board, eliminating the cost of a heat sink.TOPSwitchincorporates all functions necessary for a switchedmode control system into a three terminal monolithic IC: powerMOSFET, PWM controller, high voltage start up circuit, loopcompensation and fault protection circuitry

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
