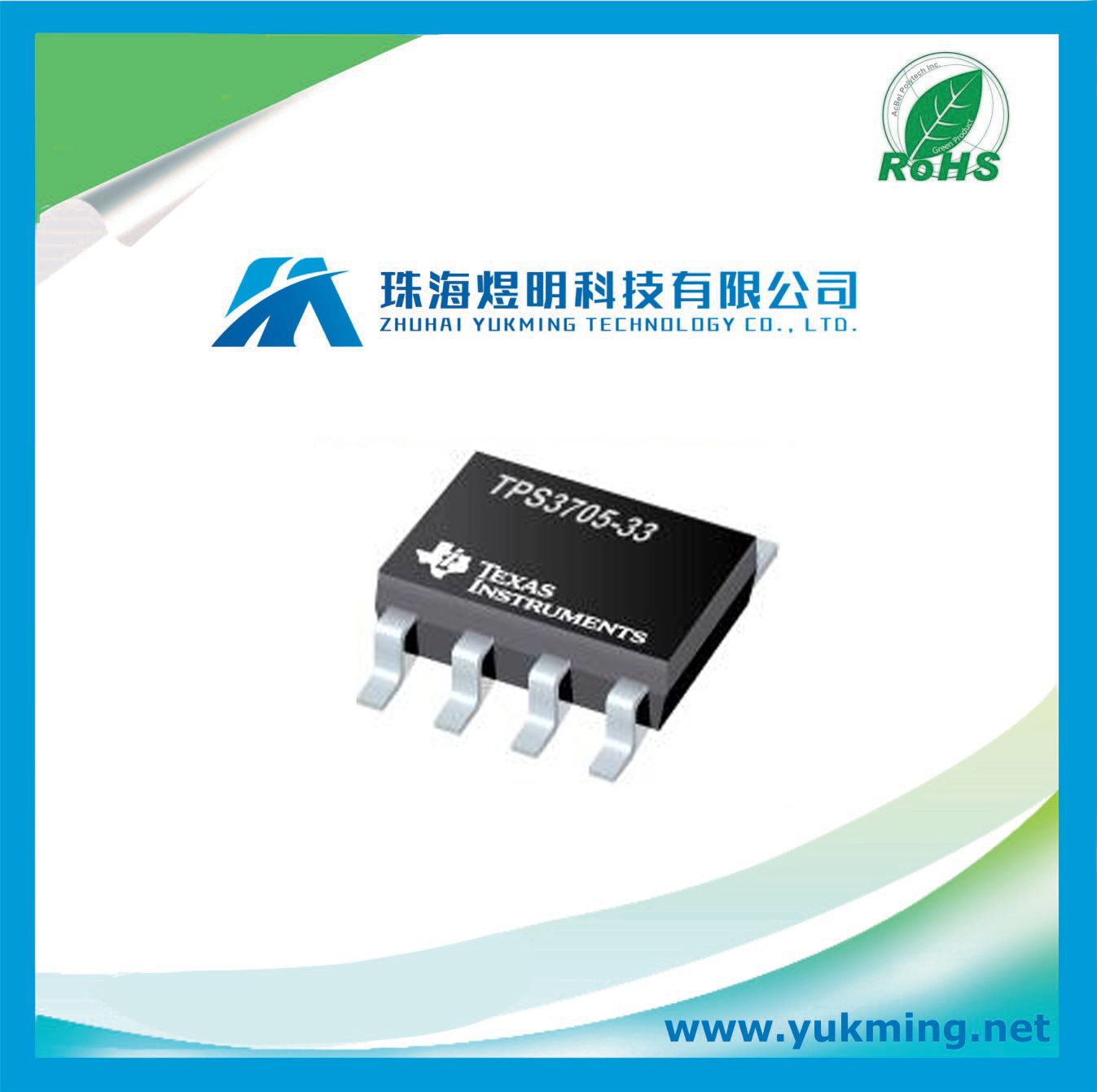

Integrated Circuit TPS3705-33D of Microprocessor Supply-Voltage Supervisor IC

Name: Integrated Circuit TPS3705-33D of Microprocessor Supply-Voltage Supervisor IC
Brand: all-electronics-online.com
SKU: 799602295
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	US $ 0.3456/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TPS3705-33D
Family:	Microprocessor Supply-Voltage Supervisor
Threshold Voltage:	2.5 V, 3 V, 3.3 V, 5 V
Operation Temperature Range:	-40 ~ 85
Minimum Operating Supply Voltage (V):	2
Maximum Operating Supply Voltage:	6

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Description
The TPS370x-xx family of microprocessor supply-voltage supervisors provide circuit initialization and timing supervision, primarily for DSP and processor-based systems.

During power-on, RESET is asserted when the supply voltage VDD becomes higher than 1.1 V. Thereafter, the supply voltage supervisor monitors VDD and keeps RESET active as long as VDD remains below the threshold voltage VIT+. When the supply voltage drops below the threshold voltage VIT-, the output becomes active (low) again. No external components are required. All the devices of this family have a fixed-sense threshold voltage VIT- set by an internal voltage divider.

The product spectrum is designed for supply voltages of 2.5 V, 3 V, 3.3 V, and 5 V. The circuits are available in either 8-pin MSOP or standard SOIC packages. The TPS370x-xx devices are characterized for operation over a temperature range of -40°C to 85°C.

Features
Power-On Reset Generator With Fixed Delay
Time of 200 ms (No External Capacitor Needed)
Precision Supply Voltage Monitor: 2.5 V, 3 V,
3.3 V, and 5 V
Pin-for-Pin Compatible With the MAX705 Through
MAX708 Series
Integrated Watchdog Time (TPS3705-xx Only)
Voltage Monitor for Power-Fail or Low-Battery
Warning
Maximum Supply Current of 50 µA
8-Pin MSOP and 8-Pin SOIC Packages
Temperature Range: -40°C to 85°C

Applications
Designs Using DSPs, Microcontrollers, or
Microprocessors
Industrial Equipment
Programmable Controls
Automotive Systems
Portable or Battery Powered Equipment
Intelligent Instruments
Wireless Communication Systems
Notebook or Desktop Computers
