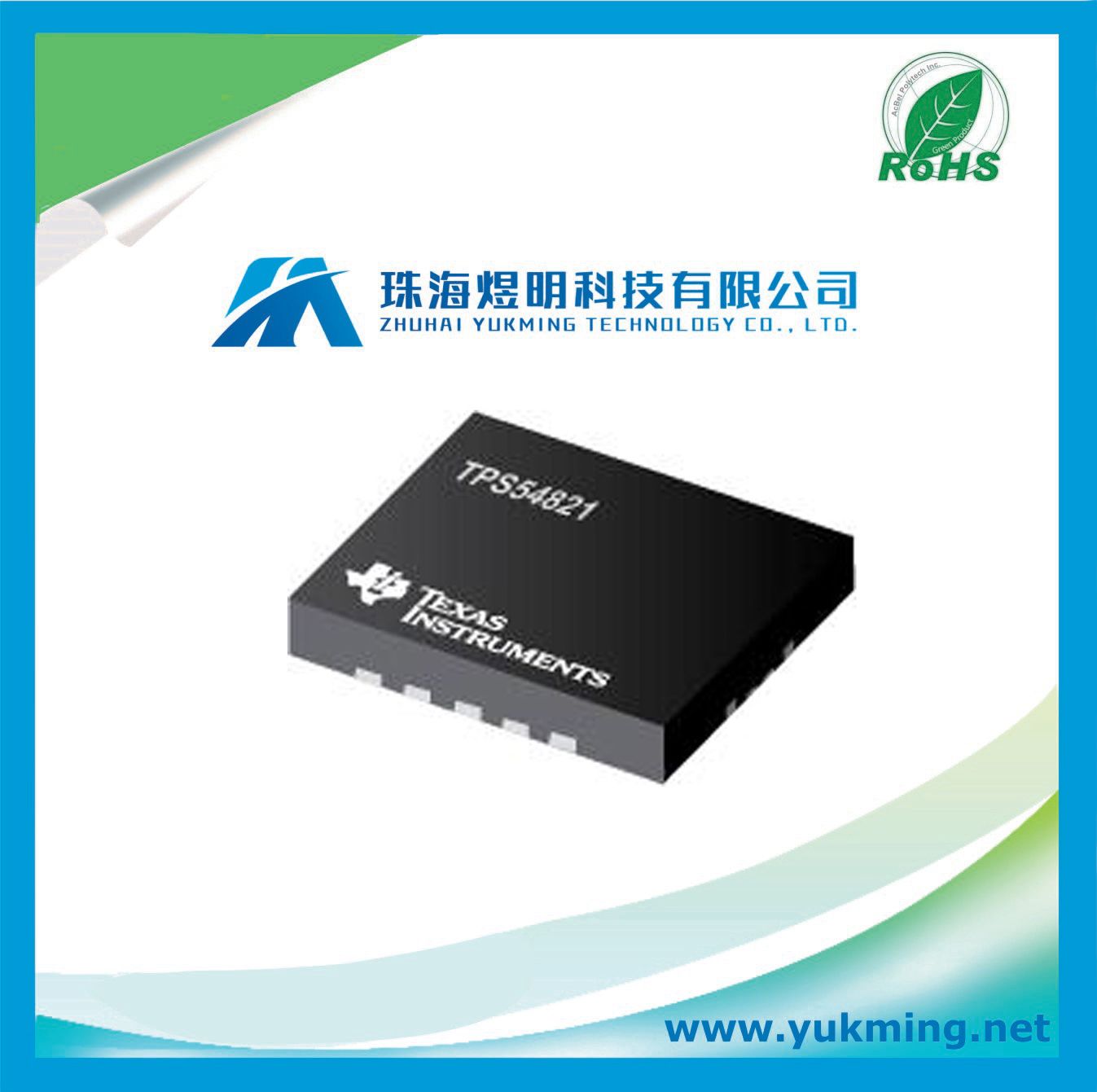

Integrated Circuit TPS54821rhlr of DC/DC Converter Switching Regulator IC

Name: Integrated Circuit TPS54821rhlr of DC/DC Converter Switching Regulator IC
Brand: all-electronics-online.com
SKU: 799602885
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 0.5537/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TPS54821RHLR
Number Of Outputs:	1
Output Type:	Adjustable
Output Voltage (V):	0.6 to 15
Maximum Output Current (a):	8
Minimum Input Voltage (V):	4.5
Maximum Input Voltage (V):	17
Operation Temperature Range:	-40 ~ 125

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
DC to DC Converter and Switching Regulator Chip

DESCRIPTION
Conv DC-DC 4.5V to 17V Step Down Single-Out 0.6V to 15V 8A 14-Pin VQFN EP T/R

Specifications
EU RoHS Compliant
Type Step Down
Number of Outputs 1
Output Type Adjustable
Output Voltage (V) 0.6 to 15
Maximum Output Current (A) 8
Minimum Input Voltage (V) 4.5
Maximum Input Voltage (V) 17
Switching Regulator Yes
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Mounting Surface Mount
Package Height (mm) 0.95(Max)
Package Length (mm) 3.65(Max)
Package Width (mm) 3.65(Max)
PCB changed 14
Standard Package Name QFN
Supplier Package VQFN EP
Pin Count 14
Lead Shape No Lead

Description
The TPS54821 in thermally enhanced 3.5 mm × 3.5 mm QFN package is a full featured 17 V, 8 A synchronous step down converter which is optimized for small designs through high efficiency and integrating the high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count, and by selecting a high switching frequency, reducing the inductor's footprint.
The output voltage startup ramp is controlled by the SS/TR pin which allows operation as either a stand alone power supply or in tracking situations. Power sequencing is also possible by correctly configuring the enable and the open drain power good pins.
Cycle by cycle current limiting on the high-side FET protects the device in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal hiccup protection disables the device when the die temperature exceeds the thermal shutdown temperature and enables the part again after the built-in thermal shutdown hiccup time.

Features
Integrated 26 mΩ / 19 mΩ MOSFETs
Split Power Rail: 1.6 V to 17 V on PVIN
200 kHz to 1.6 MHz Switching Frequency
Synchronizes to External Clock
0.6V ±1% Voltage Reference Over Temperature
Low 2 µA Shutdown Quiescent Current
Monotonic Start-Up into Pre-biased Outputs
Adjustable Slow Start/Power Sequencing
Power Good Output Monitor for Undervoltage and
Overvoltage
Adjustable Input Undervoltage Lockout
Software Tools Available
