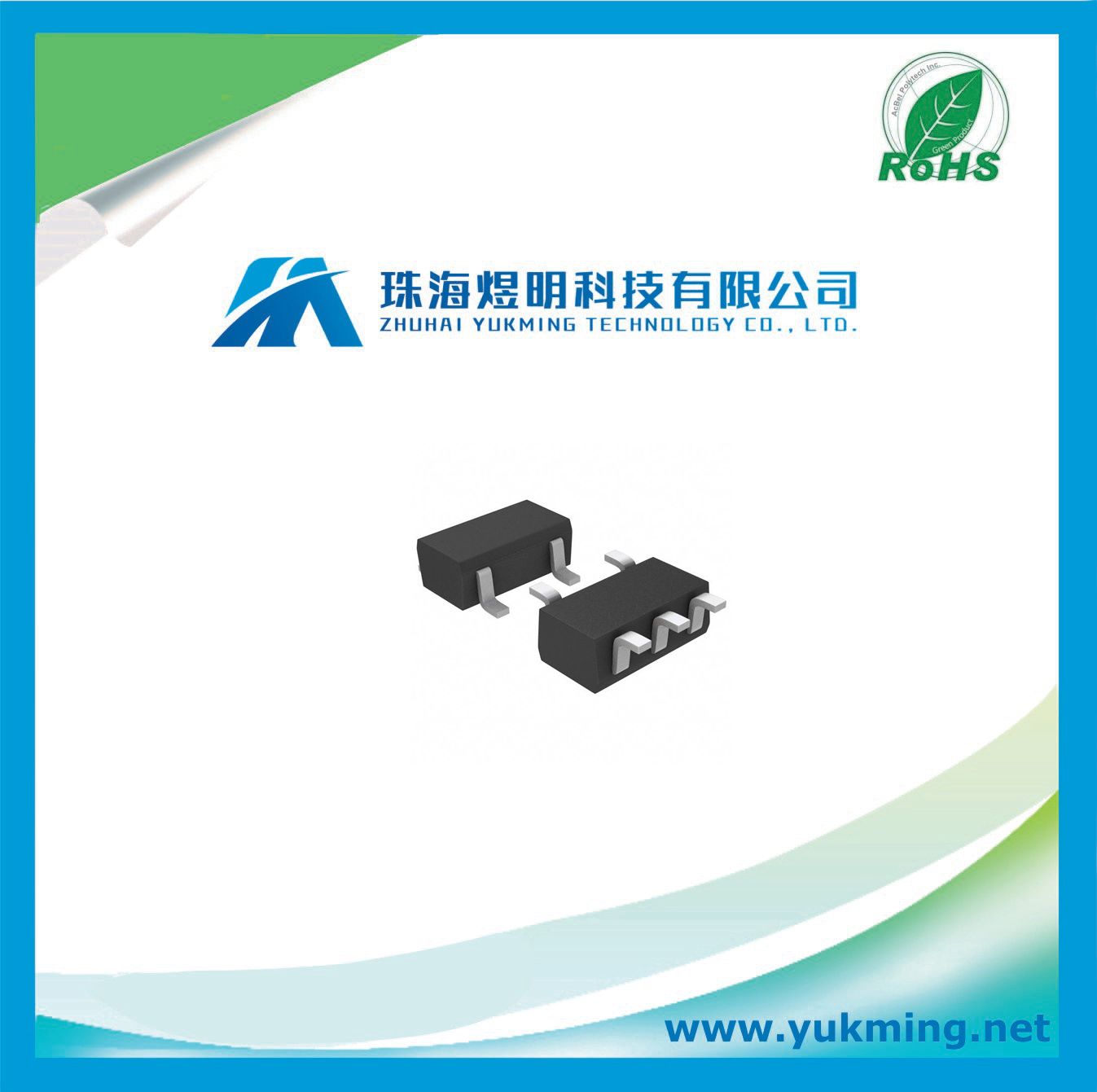

Integrated Circuit Xc6202p502mr of Voltage Regulator IC

Prod Model:	XC6202P502MR
Maximum Output Current:	150mA (Within Pd)
Maximum Operational Voltage:	20V
Output Voltage Range:	1.8V ~ 18V (0.1V Increments)
Highly Accurate:	+/-2%
Low Power Consumption:	10ua (Typ.)

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

High Voltage Positive Voltage Regulators

GENERAL DESCRIPTION
The XC6202 series are highly precise, low power consumption, high voltage input, positive voltage regulators manufactured using CMOS and laser trimming technologies. The XC6202 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit.
Output voltage is selectable in 100mV steps from 1.8V ~ 18V.
The series are also compatible with low ESR ceramic
capacitors which give added output stability.
Since the current limiter circuit is built-in, the IC is protected against overshoot currents at such times of output shorts etc.
SOT-23 (150mW), SOT-89 (500mW), TO-92 (300mW), SOT-223 (1200mW) and USP-6B (100mW) packages are available.

APPLICATIONS
Battery powered equipment
Reference voltage
Cameras, video cameras
Palmtops

FEATURES
Maximum Output Current: 150mA (within Pd)
Maximum Operational Voltage: 20V
Output Voltage Range: 1.8V ~ 18V (0.1V increments)
Highly Accurate:±2%
Low Power Consumption: 10μA (TYP.)
Line Regulation: 0.01% / V (TYP.)
Dropout Voltage: 200mV @ 30mA
                670mV@100mA
Operational Temperature Range : -40ºC ~ 85ºC
Low ESR Capacitor Compatible : Ceramic capacitor
Current Limiter Circuit Built-In
Small Packages: SOT-23 (150mW),
               SOT-89 (500mW),
                TO-92 (300mW),
              SOT-223 (1200mW),
               USP-6B (100mW
