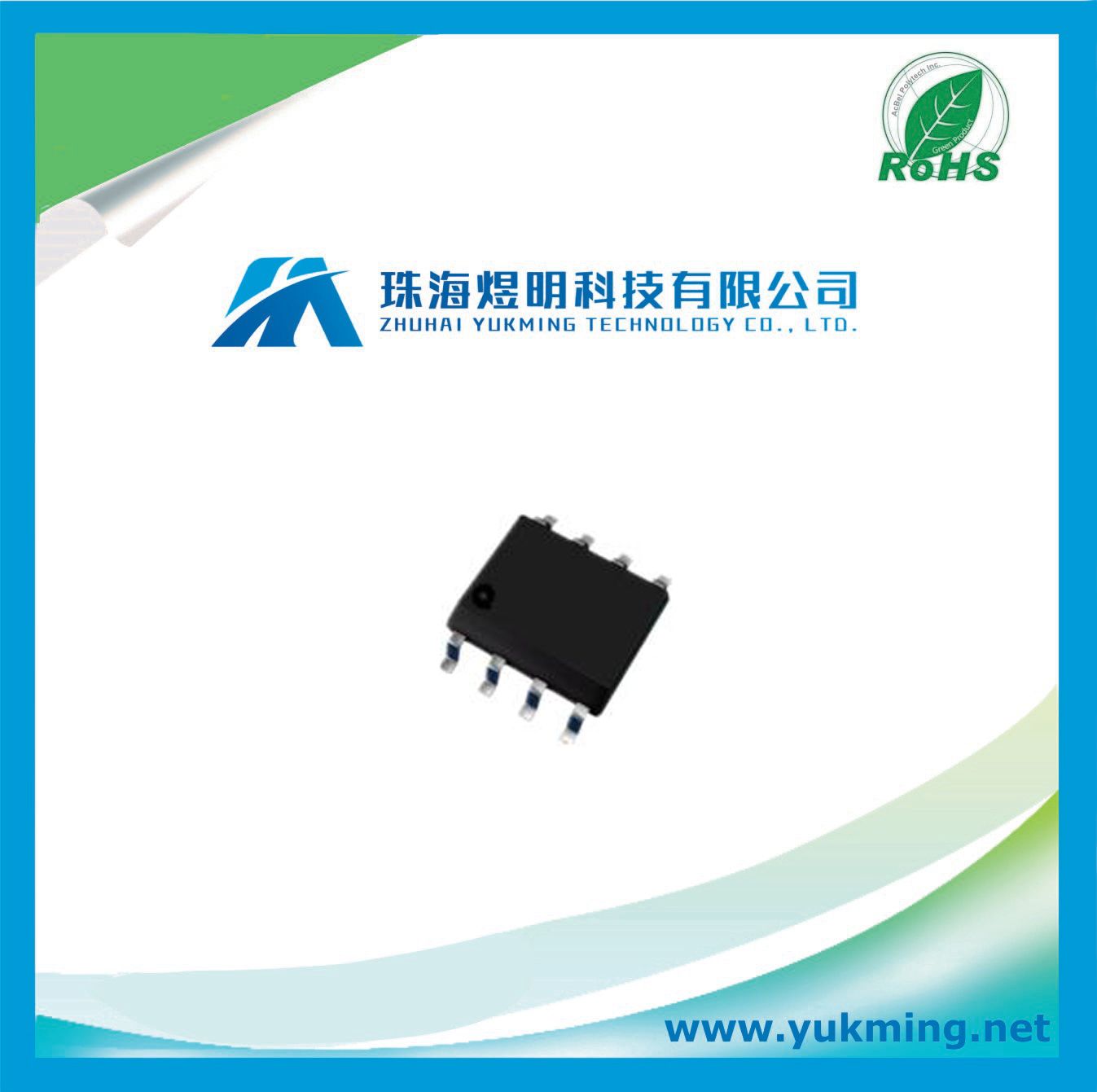

Integrated Circuit Xrd5412aidtr-F of Outputdigital-to-Analog Converter IC

Prod Model:	XRD5412AIDTR-F
Buffered Voltage Output:	13ms Typical Settling Tim
Total Power Consumption (Typ):	240MW
Flexible Output Range:	0V to V
Operates:	From a Single 5V Supply

Product Description

5V, Low Power, Voltage Output Serial 8/10/12-Bit DAC Family

FEATURES
8/10/12-Bit Resolution
Operates from a Single 5V Supply
Buffered Voltage Output: 13ms Typical Settling Time
240mW Total Power Consumption (typ)
Guaranteed Monotonic Over Temperature
Flexible Output Range: 0V to V
8 Lead SOIC and PDIP Package
Power On Reset
Serial Data Output for Daisy Chaining

APPLICATIONS
Digital Calibration
Battery Operated Instruments
Remote Industrial Devices
Cellular Telephones
Motion Control

GENERAL DESCRIPTION
The XRD5408/10/12 are low power, voltage output
digital-to-analog converters (DAC) for +3V power supply
operation. The parts draw only 70mA of quiescent current
and are available in both an 8-lead PDIP and SOIC
package.
The XRD5408/10/12 have a 3 wire serial port with an
output allowing the user to daisy chain several of them
together. The serial port will support both Microwiret,
SPIt, and QSPIt standards.
The outputs of the XRD5408/10/12 are set at a gain of +2.
The output short circuit current is 7mA typical.
