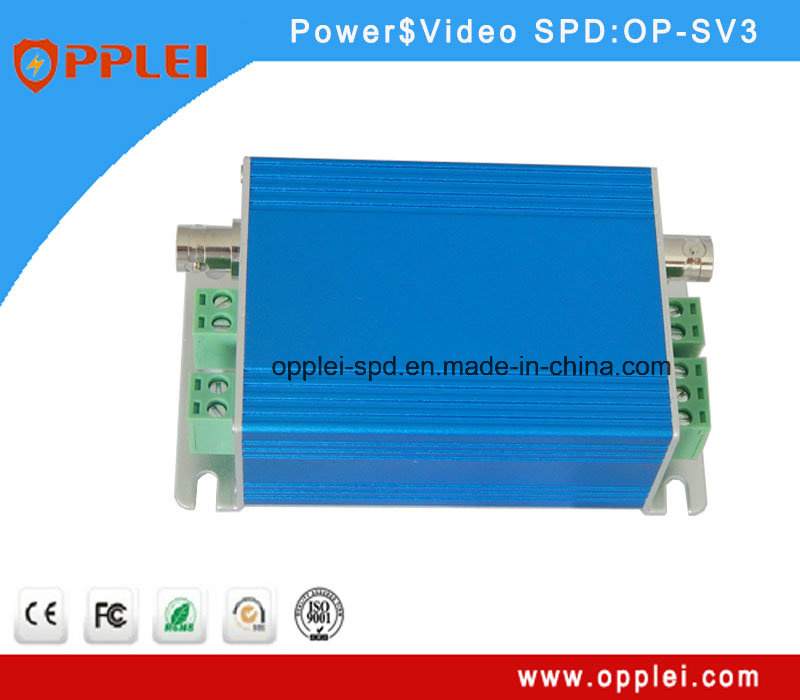

Integrated Protect Power/Signal/Video Function Dome Camera Surge Protector

Integrated Protect Power/Signal/Video Function Dome Camera Surge Protector
Price: US $ 8-27/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: OP-SV3
Max Continuous Operating Voltage: 24V
Max Discharge Current(Ka): 5ka
Transmission Rate (Mbps): ≤30mbp
Dimension (mm): 100(L) ×70(W) ×44(H)mm
Weight Per Unit: 200g
Housing Material: Aluminum
Index Of Protection: IP20
Operating Environment: Temperature:-40-+85oc Humidity: ≤95%
Warranty: Warranty
Response Time Ta: ≤1ns
Technology: Pan / Tilt / Zoom
Style: Bullet Camera
Type: CCTV Camera
Sensor: CCD
HDMI Format: 1080P
Horizontal Resolution: 480tvl
Kind: Autofocus Lens
Certification: SGS
Feature: Vandal-proof
Effective Distance: 10-30m
Sensor Size: 1/4 inch
Remote Control: With Remote Control

Product Description

Integrated Protect Power/Signal/Video Function Dome Camera Surge Protector

1. Product Description
CCTV Coaxial Video Surge Protector
Model:OP-SV3

2.  Product features
Multi. Protection circuits, Gas-Tube + TVS technology
Low insertion loss
Quick response
Dual protection in Common mode and differential mode
TVS array technology, low capacitance
Multi-Strike Capability
Engineered BNC surge protection devices in multiple configurations

3. Technical data
ModelOP-SV3
Electrical Parameter
Network Part
Max. continuous operating voltage Uc12V
Nominal discharge current(8/20µs)In3kA
Max. discharge current  (8/20µs)Imax10kA
Limiting voltage (10/700µs) Up
Line-line25V
Line-ground500V
Adapt transmission rate30Mbps
Insertion loss0.5dB
Response time1ns
Protection line1/2, 3/6
Interface form
Power Part
Working voltage220V AC
Max. continuous operating voltage275V AC
Nominal discharge current (8/20µs)5kA
Max. discharge current (8/20µs)10kA
Protection level (8/20µs)900V
Interface form2P Compression plug
Mechanical characteristics
Dimension100(L) ×70(W) ×44(H)mm
Weight per unit150g
IP CodeIP20
Working conditionsTemperature: -40 to 80ºC,
Relative humidity: ≤95%
Standards ComplianceCE, FCC, RoHS, ISO9001

4  Application
3 in 1 surge protecor designed to protect monitor equipments (Power, Ethernet), widely applied in bank monitor & safe guard system.
Monitor equipment for school, enterprise, road etc. security and protection. CCTV camera,dome camera

5. Lead time:

2-3 days for samples.
7-10 working days for mass production

6. Our service
7*24 hours to service our customers
2 years guarantee and 5 years free for maintance
