Integrated Sectional Door Motor with Ce Mark 380V

Prod Model:	GK
Position:	Industrial, Industrial~
Type:	Rolling
Material:	Steel
Surface Finishing:	Finished
Color:	Silver
Certification:	Ce
Opening Type:	Remote Controlled
Open Style:	Rolling
Special Function:	Security
Brand:	Blueprint

Product Description

Main functional features
Electric Controller Box: Electric Controller Box panel is installed with three silicone rubber buttons of "Open", "Close", "Stop", and the "Emergency stop switch". In an emergency, the power supply control circuit can be quickly cut off to ensure the safety of human and machine.

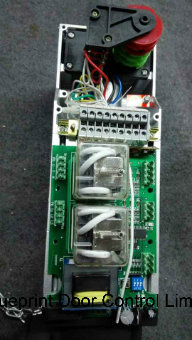

Control Box is installed with various interfaces: infrared photocell and airbag interfaces, the door security protection switch interface; three-button switch interface, single-button switch interface, the warning light interface.
Control Box is suitable for 220V single-phase and 380V three-phase motors. The limit switches are normally open or normally closed, the motor protection time is optional, the self-closing time is optional, and the motor over-current protection is adjustable and other functions.
Optional remote control transmitter. If the remote control transmitter is the learning code, you can choose the learning code remote control if required.
Manual switch door device: in the case of power outage and other emergency cases, it can be switched from manual to electric door opening or closing through the conversion handle, so that the reliability of Industry Gate Operator can be improved and the failures can be reduced.
Twin cam limit: the use of twin cam limit is safe and reliable. When opening (closing) the door in place, the passive signal can be output to facilitate the special users.

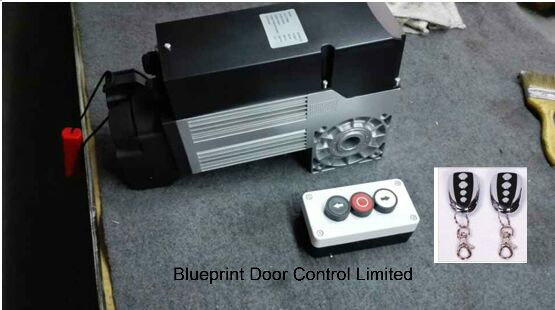

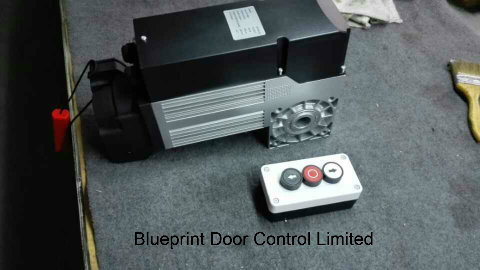

Each set includes industrial door motor 1pc , 1pc inside control board with 2pcs remote controls or 3 button switch

customer can buy only industrial door motor .
Optional accessories: photocell;on wall switch

GK40 ;220VAC	350W industrial door motor,40NM,22r/min,used in door less than 20 square meters,Free degree 180 degree
GK50;220VAC	400W industrial door motor,50NM,22r/min,used in door less than 28 square meters,Free degree 180 degree
GK60S;380VAC	450W industrial door motor,60NM,22r/min,used in door less than 35 square meters,Free degree 180 degree
GK90S;380VAC	600W industrial door motor,90NM,22r/min,used in door less than 45 square meters,Free degree 180 degree
GK40H ;220VAC	350W industrial door motor,40NM,22r/min,used in door less than 20 square meters,Free degree 360 degree
GK50H;220VAC	400W industrial door motor,50NM,22r/min,used in door less than 28 square meters,Free degree 360 degree
GK60SH;380VAC	450W industrial door motor,60NM,22r/min,used in door less than 35 square meters,Free degree 360 degree
GK90SH;380VAC	600W industrial door motor,90NM,22r/min,used in door less than 45 square meters,Free degree 360 degree
