| Prod Model: |
W-CFXBDYTH |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
Middle Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Vertical Pump |
Product Description

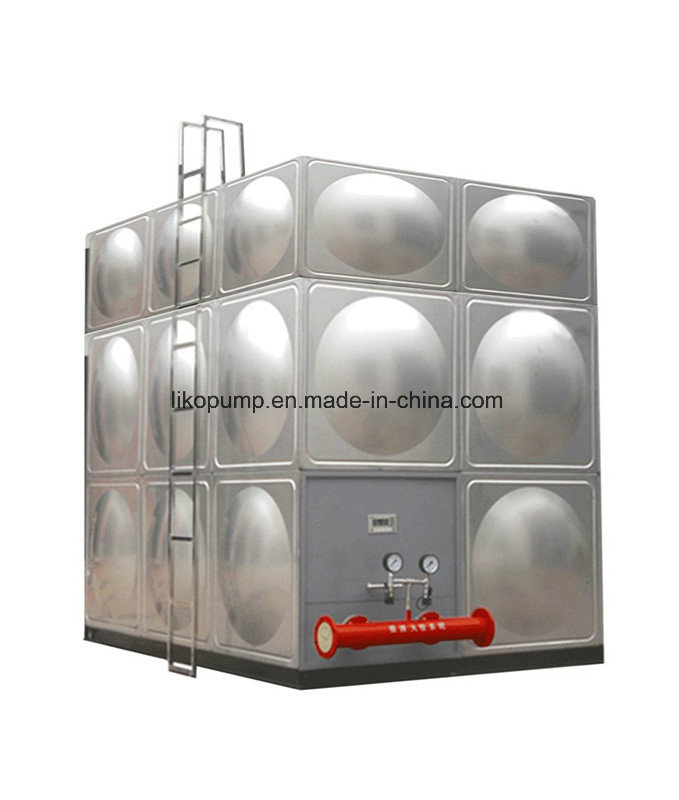

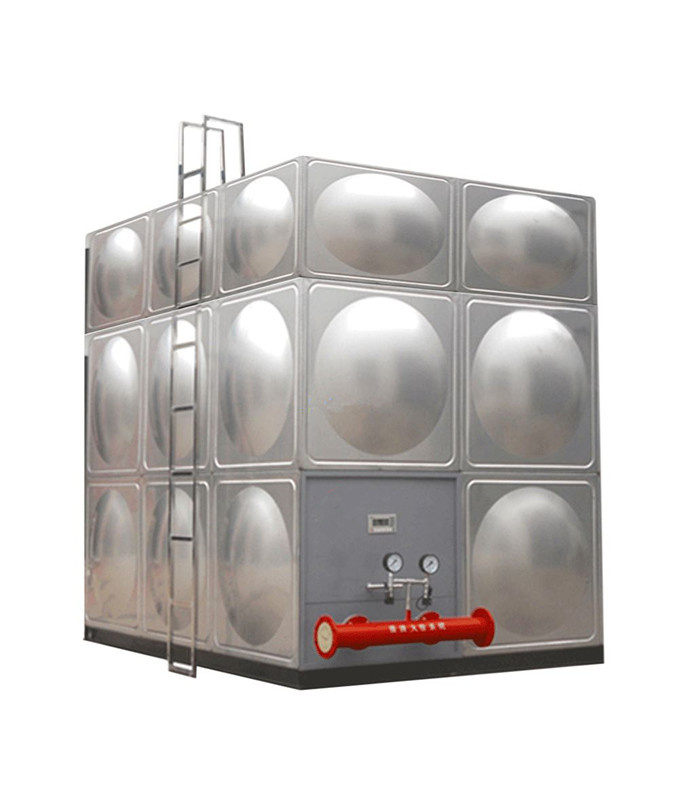

Integrated Water Supply System for fire figthing system
Products descriptionThe pressurized water supply equipment is a new type of equipment which USES food grade rubber as the separation of air and water.This cycle, through the electrical contact pressure gauge and the electric control box control pump operation, to achieve the rated pressure and continuous water supply.It is designed according to the national building standard design drawing 98S205 and other design, manufacturing fire control special pressure stabilizing equipment.The equipment by the diaphragm pressure tank, pump, electric cabinet, instrument and pipeline fittings and so on, is suitable for multi-layer and high-rise building projects have pressurization requirements of fire hydrant water supply system and automatic sprinkler system and other kinds of fire water system. Product features
1. The pump, electric control cabinet, diaphragm air pressure tank, and combined pipe network are all in one, without the need of the ground foot hole, the designer can check the equipment model and base size with the good parameters.The electrical designer does not need to control the circuit design again, but only designs the incoming line of the pump room and the walking line to the equipment.It can shorten the design period and construction time of the designers.
2. The diaphragm air pressure tank is used for a long time, and the water vapour isolation can prevent the pollution of water quality.
3. The equipment covers an area of small area, investment province, fully automatic operation, no need for special care.
4. The device has a dual power interface, and the dual circuit power supply can be switched automatically (manually). The equipment can be made according to the design requirements.
5. Automatic protection and failover.Any water pump failure (electrical fault or hydraulic failure) can start the spare pump.
6. Connect with fire center (according to design requirements).
7. Can select the tank, voltage stabilizing mode and control function according to customers' needs.
8. The main components of electrical energy are made of domestic or imported brand-name enterprises, with reliable quality and stable operation.
Product use
It is suitable for the fire hydrant water supply system and automatic sprinkler system, etc.
Product working principle
The pressurized water supply equipment is a new type of equipment, which USES non-toxic capsules as the separation of air and water.Start up the water pump at work, the water chamber is filled with water, the water pressure rises, the gas chamber gas is compressed and the membrane is elongated;When the water pressure drops, the gas chamber expands, the diaphragm contracts, and the water chamber comes out.This cycle, through the electrical contact pressure gauge and the electric control box control pump operation, to achieve the rated pressure and continuous water supply.When a fire alarm occurs, fire the fire hydrant, and immediately fire the water column. At the same time, the electric contact pressure gauge sends out the signal, and the fire pump is activated to supply the fire water.
