Intelligence Humidity Controller with Dual Row 3-LED Display (XMTA-617)

Name: Intelligence Humidity Controller with Dual Row 3-LED Display (XMTA-617)
Brand: all-electronics-online.com
SKU: 714131942
Availability: InStock
Rating: 4.4 (124 reviews)

Price:	US $ 38.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTA-617
Useage:	Industrial
Control Type:	Digital
Control Method:	Electronic Type
Type:	Humidity Controller
Usage:	Humidity Control

Product Description

I.Survey
XMT*-607 series controller is dual row 3-LED display, to display the measured value and set value. It is operated with 3-keys, and the available control methods including on/off, PID control, with easy parameter setting, convenient information inputting and wide voltage power inputting, and so on.

II.Main technical Indexes
1. Control Precision: ± 3%FS± 1B
2. Measurement range: 5%~100%RH
3. Display precision: 0.1%RH
4. Input type: Macromolecule
5. Relay output(passive) contact capacity: AC220V 5A (resistance load)
6. Driving solid relay signal output: Driving electric current>15mA
Floating voltage>9V, period is 2S
7. Working power: AC85V~242V Power consumption<3W
8. Working environment: 0~50C, relative humidity≤ 85%, without corrode and strong electric radiation.
9. External dimensions(mm): 96× 96× 80 92*92

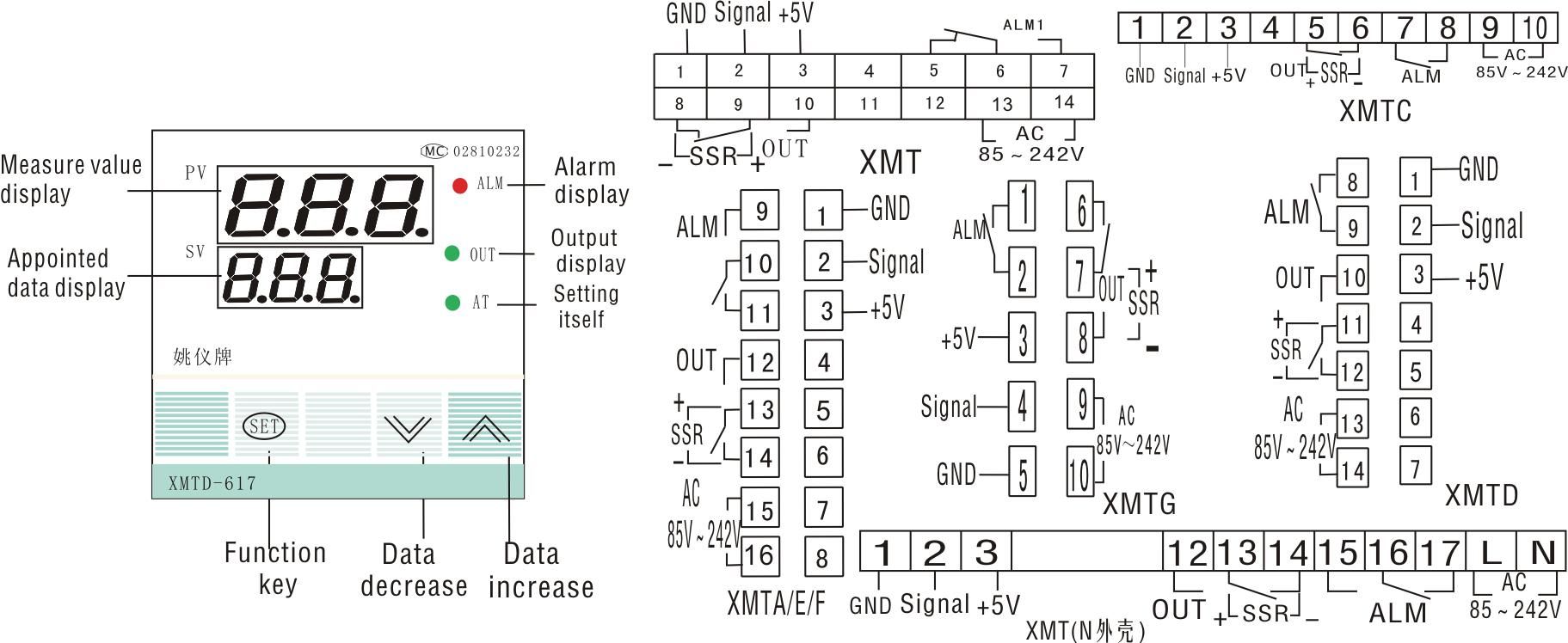

The meter panel and connection scheme(consult)

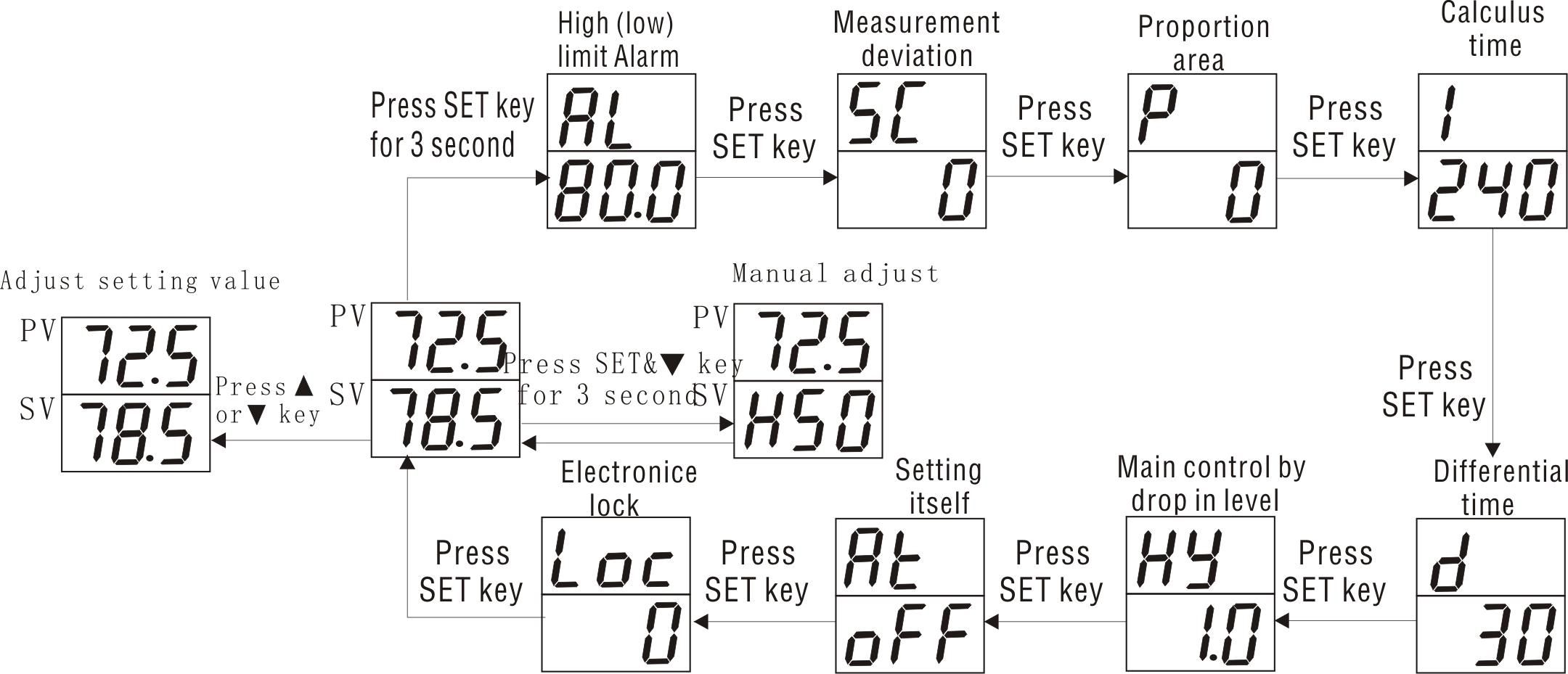

Flow chart
