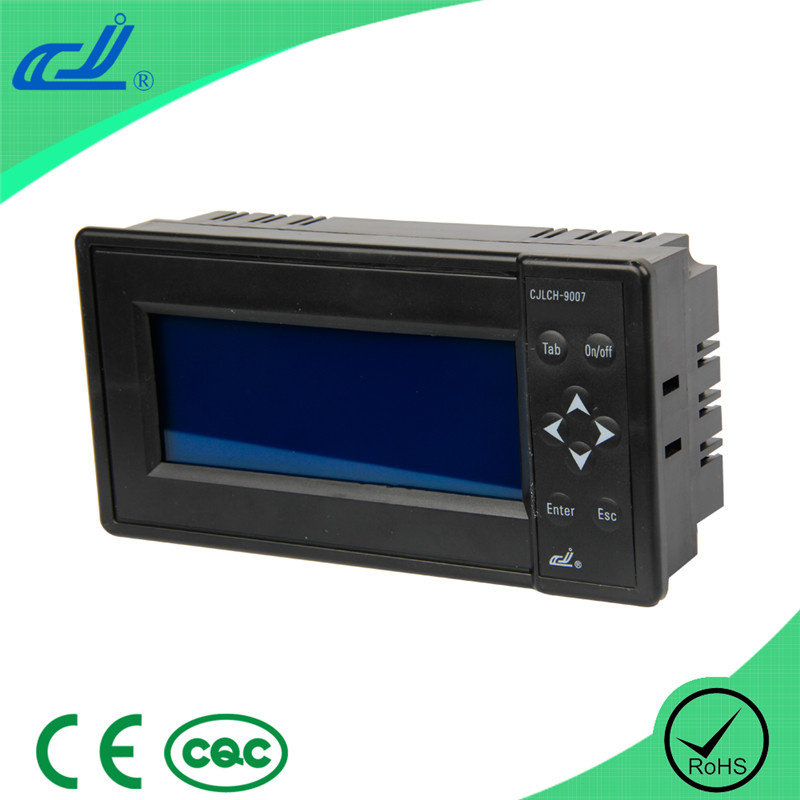

Intelligence LCD Temperature and Humidity Controller (CJLCH-9007)

Prod Model:	CJLCH-9007
Type:	Temperature Controller
Control Type:	Digital
Control Method:	Electronic Type

Product Description

Specifications

Temperature and humidity controller
Made of advanced CPU
Large scale integrated circuit
Figure LCD.



CJLC-9007 Intelligence Temperature and humidity controller is a new product developed by Yuyao

Changjiang Temperature Meter Factory on the base of its rich supporting technology and advanced

scientific consciousness, years of developing and applying experience in instruments and meters, under
the consultation of new or old consumers and several key technologies of itself. The products are on top

of the identical products inland that its qualification and performance have reached the advanced level in

the world and it has high cost performance.

CJLC-9007 Intelligence Temperature and humidity control meter is a new-style intelligence Temperature
and humidity control meter made of advanced CPU, large scale integrated circuit and figure LCDIt all

adopts intelligence PID control, and with high control precisionOtherwise, it with the function of curve

print and data printwork in micro-printerWith expandingRS485 communication module interface

communication, to carry out long distance network management.

CJLC-9007 Intelligence Temperature and humidity control meter has the character of small capacity, low
power consumption, high accuracy, strong versatility, operating stable and credibility, and has a widely

application in fossil oil, chemical industry, paper manufacture, pharmaceutical industry, metallurgy,

electric power, ring protection, food substance and many other trades currently.

2 Technical Data

2.1 Input
Dual PT100

2.2 Output
Support kinds of output control method, as the client request
Relay outputContact capacity AC250V 7Aload resistance
SSR voltage output: 12VDC/15mA(for driving SSR solid relay)
Controllable silicon trigger output: Can trigger 5500A both-way controllable silicon; 2 one-way controllable silicon backward parallel connection.

2.3 Precision
Temperature measuring precision ± 0.5%F· S± 1.0 Humidity measuring precision ± 2%F· S± 1.0

2.4 Alarm
Relay outputContact capacityAC250V 7Aload resistance

2.5 Communication
Extended function, explain before order.
Support RS485 communication mode, baud rate support the below choice1200bps4800bps7200bps9600bps

2.6 Screen
Display resolution ratio192× 64, Refresh frequency1Hz

2.7Power supply
AC 110~242VAC, 50Hz

2.8 External dimensions
External dimensions160mmwidth× 80mmheight× 48mmdepth
Installation hole152mm× 76mm

2.9 Net weight
≤ 0.5kg

2.10Working condition:
Humidity10%85%RHno coagulation
Forbid working under corrosive environment, forbid liquid or conductive body entering into the inner of the meter, make sure good ventilation.

2.11 Storage condition
Temperature-2060, avoid sunlight
Humidity<85%RHno coagulation
