Intelligent 3 Phase Outdoor Uninterruptible Power Supply 10kVA - 100kVA Online UPS with IP55 Sealing Level
| Price: |
US $ 1-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
Top Star Series 1-10Kva |
| Nominal Frequency: |
50/60Hz |
| Power Factor: |
0.98 |
| Internal Battery Capacity: |
(38/65/80/100ah)Optional |
| Nominal Voltage: |
220/230/240VAC |
| Display: |
LED |
| Phase: |
Single Phase |
| Type: |
Modular Online |
| Protection: |
Over Load/Current/Voltage, Short Circuit etc |
| Brand: |
Upsen or OEM |
Product Description

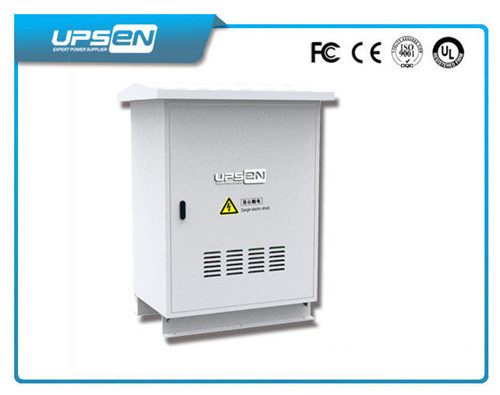

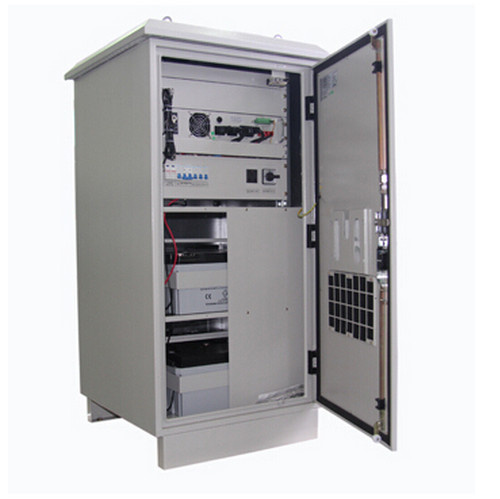

Outdoor Online UPS Top Star Series 1K-10Kva (1ph in/1ph out)
Key FeaturesUPSEN Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment. Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window (-45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.
Applications
UPSEN outdoor UPS is mainly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50ºC) / low temperature (-15ºC), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.
Technical Specification| Top Star Series |
| Model | | T1K | T2K | T3K | T6K | T10K |
| Capacity | Capacity | 1KVA/700W | 2KVA/1400W | 3KVA/2100W | 6KVA/4200W | 1000KVA/7000W |
| Input | Nominal voltage | 220/230/240VAC |
| Nominal frequency | 50/60HZ |
| Voltage Range | 115~295VAC(±3VAC) | 176~297VAC(±3VAC) |
| Frequency Range | 50HZ(46~54HZ), 60H(56HZ~64HZ) |
| Power Factor | 0.98 |
| Output | Voltage Precision | 220/230/240X (1±2%)VAC |
| Frequency Precision | 50/60HZ ± 0.05Hz |
| Power Factor | 0.7 |
| THDI | < 3% (Linear load) < 6% (Non-linear load) |
| Overload Capability | Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode. |
| Crest Factor | 3:01 |
| Transfer Time | 0ms(AC to DC ) |
| Battery | DC Voltage | 36VDC | 96VDC | 96VDC | 240VDC | 240VDC |
| Charge Current | 4A/8A(optional) | 4.2A | 4.2A |
| Internal Battery Capacity | (38/65/80/100AH/120AH)optional |
| Panel Display | LED/LCD Digital Display | Display input and output voltage, frequency, battery voltage, battery capacity, load percentage |
| Communications | Communicate Interface | RS232, SNMP card (optional) |
| Enviroment | Temperature | 0~40ºC |
| Humidity | 0~95% Non-condensing |
| Storage Temperature | -25ºC~55ºC |
| Altitude | < 1500m |
Acoustic Noise
( within 1 meter) | < 50dB |
| Physical | Weight(KG) | 85 | 125 | 125 | 150 | 155 |
| Dimensions(L*W*H)mm | 900*640*900 | 900*640*1185 | 900*640*1185 | 940*940*1770 | 940*940*1770 |
